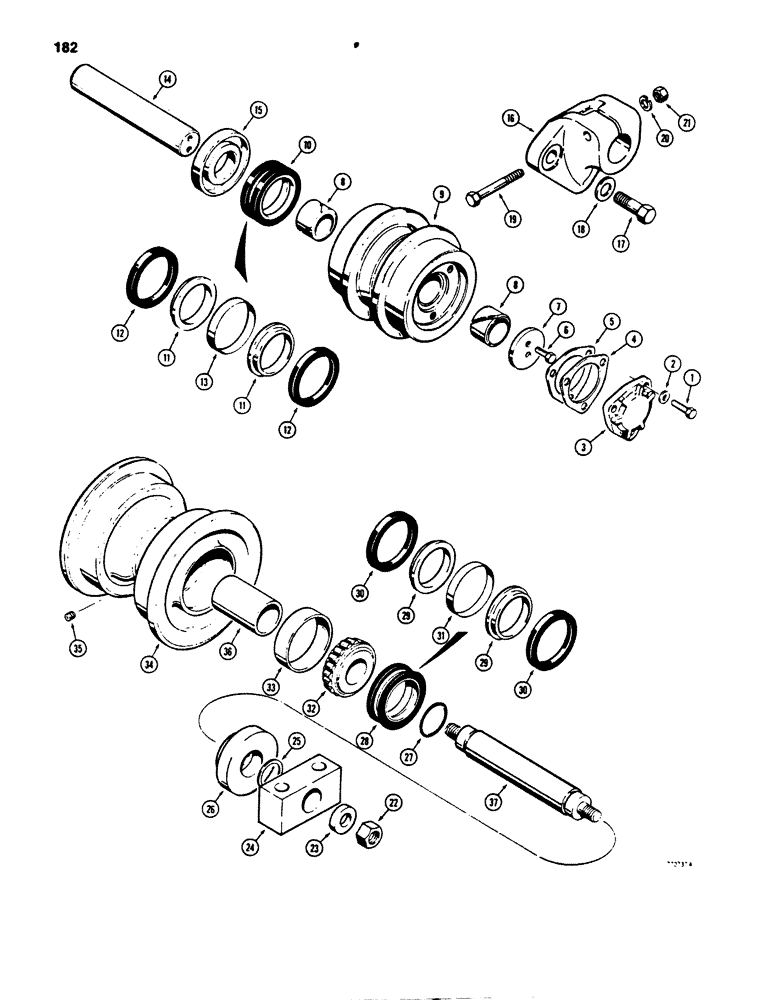

Запчасти Case 850B (182) - D48684 TRACK CARRIER ROLLER, FOR IDENTIFICATION - SEE ITEM 3 OF ILLUSTRATION (04) - UNDERCARRIAGE

D48684

ROLLER

CARRIER ROLLER ASSEMBLY - track, Includes: Ref.#1 - 15

2шт.

1

26-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

3шт.

2

D35288

WASHER

- copper

1шт.

3

R29288

COVER ASSY

CAP - roller

1шт.

4

D30384

SHIM,.010" Thk

(Brown) .010" Thk

1шт.

5

D30383

SHIM,.005" Thk

(.13 mm ), Blue .005" Thk

1шт.

6

26-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex head, 3/8" - 16 NC x 3/4", G8

2шт.

7

D30382

WASHER

PLATE - retainer

1шт.

8

D46396

BUSHING,44.51mm ID x 49.23mm OD x 31.75mm L

- split

2шт.

9

D49945

HUB CAP

CARRIER ROLLER - track

1шт.

10

R39273

SEAL

FACE SEAL - carrier roller, Includes: Ref.#11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

BODY - seal, split

2шт.

D36826

SEAL KIT

KIT - seal repair, Includes: Ref.#12 & 13

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - rubber

2шт.

13

NSS

NOT SOLD SEPARAT

RETAINER - plastic

1шт.

14

D49100

SHAFT

- roller

1шт.

15

D32565

RETAINER - face seal

1шт.

16

D45485

BRACKET

- carrier roller mounting

2шт.

17

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

Use with Loctite 242 (blue) Hex, 3/4"-10 x 2", G5

4шт.

18

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

4шт.

19

26-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 8

- hex head, 1/2" - 13 NC x 4-1/4" (Replaced 13-868)

2шт.

20

92-8

LOCK WASHER,1/2"

2шт.

21

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.

R24102

ROLLER

TRACK ROLLER ASSEMBLY - single flange, for id see Ref.# 24of illustration, Includes: Ref.#22 - 37

10шт.

22

280375

NUT,3/4"-10, GC

NUT - hex, self-locking, 3/4" - 10 NC, R24102 track roller, for id see Ref.#24 of illustration

2шт.

23

D44182

WASHER

- special, R24102 track roller, for id see Ref.#24 of illustration

2шт.

24

D36409

BLOCK

- R24102 track roller, for id see Ref.#24 of illustration

2шт.

25

D31329

SHIM,.005" Thk

(0.13 mm), R24102 track roller, for ID, See Ref 24 of illustration .005" Thk

1шт.

26

D45502

BUSHING

- R24102 track roller, for id see Ref.#24 of illustration

2шт.

27

D27878

O-RING,1.609" ID x 1.887" OD

- shaft, R24102 track roller, for id see Ref.#24 of illustration

2шт.

28

R39273

SEAL

FACE SEAL - R24102 track roller, for id see Ref.#24 of illustration, Includes: Ref.#29 - 31

2шт.

29

NSS

NOT SOLD SEPARAT

BODY - seal, split, R24102 track roller, for id see Ref.#24 of illustration

2шт.

D36826

SEAL KIT

KIT - seal repair, R24102 track roller, for id see Ref.#24 of illustration, Includes: Ref.#30 & 31

1шт.

30

NSS

NOT SOLD SEPARAT

SEAL - rubber, R24102 track roller, for id see Ref.#24 of illustration

2шт.

31

NSS

NOT SOLD SEPARAT

RETAINER - plastic, R24102 track roller, for id see Ref.#24 of illustration

1шт.

32

D44321

ROLLER BEARING,1.625" ID x 1.1875"

- R24102 track roller, for id see Ref.#24 of illustration

2шт.

33

D44322

BEARING CUP,3.375" OD x 0.9375"

CUP - roller bearing, R24102 track roller, for id see Ref.#24 of illustration

2шт.

34

R24100

ROLLER

- single flange, R24102 track, for id see Ref.#24 of illustration

1шт.

35

221-841

PLUG

- hex, socket head, 1/4" NPT, R24102 track roller, for id see Ref.#24 of illustration

1шт.

36

D44183

SPACER

- bearing, R24102 track roller, for id see Ref.#24 of illustration

1шт.

37

D44184

SHAFT

- R24102 track roller, for id see Ref.#24 of illustration

1шт.
