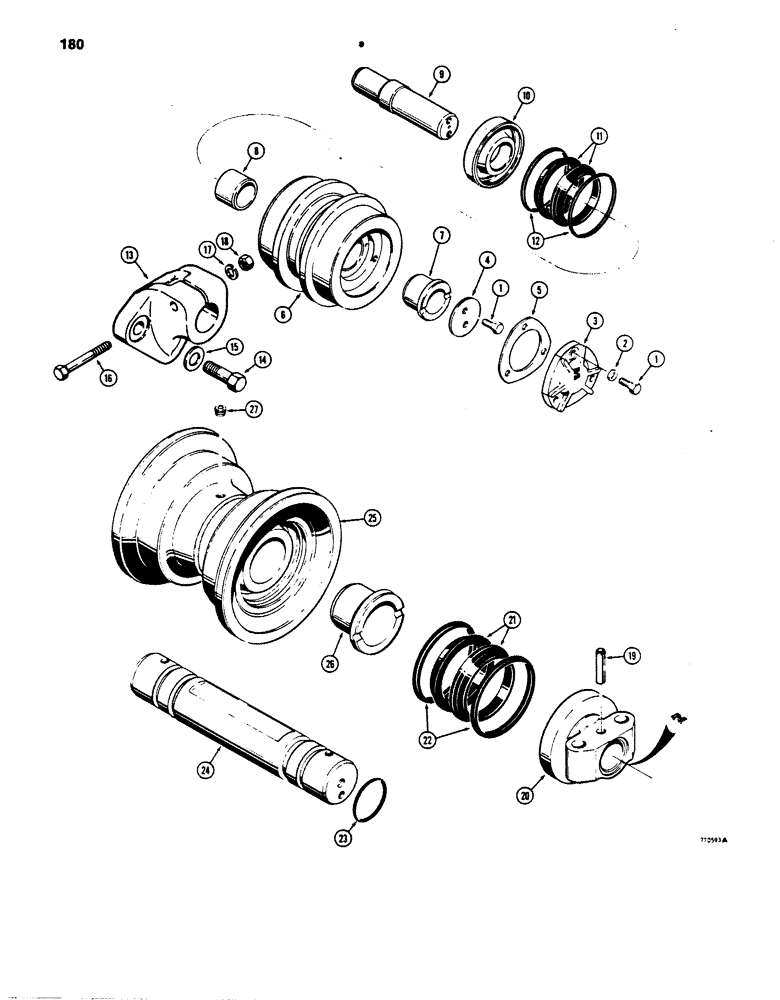

Запчасти Case 850B (180) - R33965 TRACK CARRIER ROLLER, FOR IDENTIFICATION - SEE ITEM 3 OF ILLUSTRATION (04) - UNDERCARRIAGE

R33965

ROLLER

CARRIER ROLLER ASSEMBLY- track carrier, Includes: Ref.#1 - 12

2шт.

1

813-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

- hex head, M10 - 1.5 x 20, grade 8.8

5шт.

2

D32117

COPPER WASHER

WASHER, COPPER

1шт.

3

R33959

CYLINDER END CAP

CAP - carrier roller

1шт.

4

R33960

PLATE

- retainer

1шт.

5

R33964

GASKET

- cap

1шт.

R33967

CARRIER

ROLLER - track, Includes: Ref.#s6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

ROLLER - track

1шт.

7

R33951

BUSHING

- roller, with flange

1шт.

8

R33958

BUSHING

- roller

1шт.

R33969

SHAFT

ASSEMBLY - carrier roller, Includes: Ref.#9 & 10

1шт.

9

NSS

NOT SOLD SEPARAT

SHAFT - carrier roller

1шт.

10

R33962

RETAINER

- seal

1шт.

R33607

SEAL

FACE SEAL - carrier roller, Includes: Ref.#11 & 12

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - rubber

2шт.

12

N6847

O-RING,75mm ID x 8mm Width

- seal

2шт.

13

D45485

BRACKET

- carrier roller mounting

2шт.

14

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

Use with Loctite 242 (blue) Hex, 3/4"-10 x 2", G5

4шт.

15

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

4шт.

16

26-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 8

- hex head, 1/2" - 13 NC x 4-1/4" (Replaced 13-868)

2шт.

17

92-8

LOCK WASHER,1/2"

2шт.

18

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.

R33552

ROLL

TRACK ROLLER ASSEMBLY - single flange, for id see Ref.# 20 of illustration, Includes: Ref.#19 - 27

10шт.

19

R33563

ROLL PIN

PIN - cap retaining, R33552 track roller, for id see Ref.# 20 of illustration

2шт.

20

R33560

BUSHING

CAP - R33552 track roller, for id see item 20 of illustration

2шт.

FACE SEAL - TRACK ROLLER CHANGE REQ'D # TO 2.

1шт.

R33564

SEAL

FACE SEAL - R33552 track roller, for id see Ref.# 20 of illustration, Includes: Ref.#21 & 22

4шт.

21

NSS

NOT SOLD SEPARAT

SEAL - rubber, R33552 track roller, for id see Ref.# 20 of illustration

2шт.

22

N6846

O-RING,75.7mm ID x 9.5mm Width

- seal, R33552 track roller, for id see Ref.# 20 of illustration

2шт.

23

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

0-RING - shaft, R33552 track roller, for id see Ref.# 20 of illustration

2шт.

24

R33561

SHAFT

- R33552 track roller, for id see Ref.# 20 of illustration

1шт.

R33558

ROLLER

TRACK ROLLER - single flange, R33552 , for id see Ref.# 20 of illustration, Includes: Ref.#s25 - 27

1шт.

25

NSS

NOT SOLD SEPARAT

ROLLER - track, R33552 , for id see Ref.# 20 of illustration

1шт.

26

R33556

BUSHING,50.28mm ID x 70.5mm OD x 46mm L

- R33552 track roller, for id see Ref.# 20 of illustration

2шт.

27

R33557

PLUG

- R33552 track roller, for id see Ref.# 20 of illustration

1шт.
