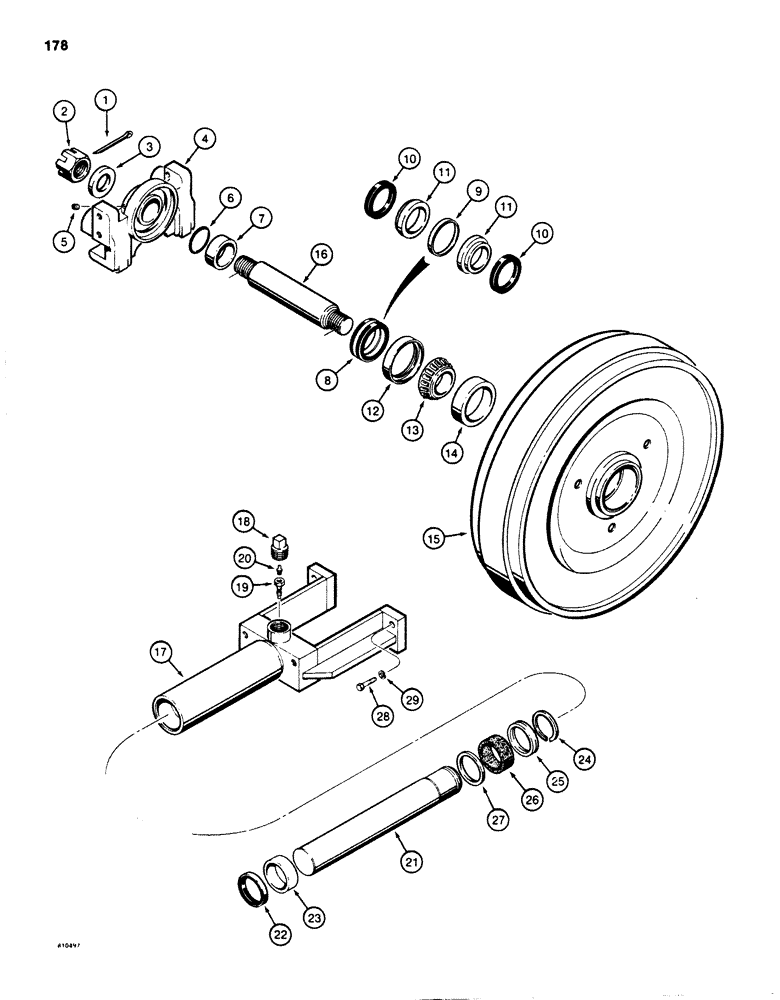

Запчасти Case 850B (178) - IDLER AND TRACK ADJUSTER (04) - UNDERCARRIAGE

R35400

FRONT IDLER

IDLER ASSEMBLY - track, Includes: Ref.#s1 - 16

2шт.

1

132-156

PIN

COTTER PIN - 1/4" x 2-1/4"

2шт.

REPLACED BY R55677 IDLER ASSY PLUS OTHER PARTS.

1шт.

2

25-1324

SLOTTED NUT,1 1/2"-12, G5

NUT - hex, slotted, 1-1/2" - 12 NF

2шт.

3

D36065

WASHER

- hardened

2шт.

4

R34997

BRACKET

- idler, without oil level check hole, if used

2шт.

NOTE ON ILLUSTRATION OF #4 THE LOWER MACHINED SURFACE MTG. HOLE IS REMOVED.

1шт.

4

R44589

HOUSING

BRACKET - idler, with oil level check hole, if used

2шт.

5

221-841

PLUG

- square socket, 1/4" NPT, if used

2шт.

6

F62076

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

- idler shaft

2шт.

7

D48681

SPACER

- idler

2шт.

8

R39273

SEAL

FACE SEAL - idler, Includes: Ref.#9 - 11

2шт.

9

NSS

NOT SOLD SEPARAT

BODY - idler

1шт.

D36826

SEAL KIT

KIT - face seal repair, Includes: Ref.#10 & 11

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - rubber

2шт.

11

NSS

NOT SOLD SEPARAT

RETAINER - plastic

2шт.

12

D36069

RING

RETAINING RING - seal

2шт.

13

51200231

BEARING, CONE,50.8mm ID x 30.96mm W

TAPERED ROLLER BEARING - idler

2шт.

14

A27732

BEARING CUP

CUP - tapered roller bearing

2шт.

15

D48952

FRONT IDLER

IDLER - track

1шт.

16

D36068

SHAFT

- idler

1шт.

R32467

ADJUSTER

TRACK ADJUSTER ASSEMBLY - slide, Includes: Ref.#s17 - 27

2шт.

17

R31976

YOKE

AND TUBE - track adjuster

1шт.

18

221-29

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

1шт.

19

D35287

CHECK VALVE,5/8" - 18

CHECK BALL ASSEMBLY - track adjuster

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

21

R31983

ROD

- piston

1шт.

22

D95149

PACKING RING,60.24mm ID x 73.05mm OD x 7.92mm Thk

WIPER - rod

1шт.

23

D30374

RING,60.43mm ID x 73.15mm OD x 25.4mm L

- wiper

1шт.

24

A32413

SNAP RING,#212, 1.997", Ext

- rod

1шт.

25

R25706

SEAL,53.9mm ID x 66.75mm OD x 10.69mm Thk

- rod

1шт.

26

R25663

BUSHING,53.98mm ID x 66.62mm OD x 25.4mm L

SEAL - bushing

1шт.

27

R30202

RING,54.101mm ID x 65.1mm OD x 5.08mm Thk

BACKUP RING - seal

1шт.

28

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Use with Loctite 242 (blue) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

29

92-8

LOCK WASHER,1/2"

4шт.
