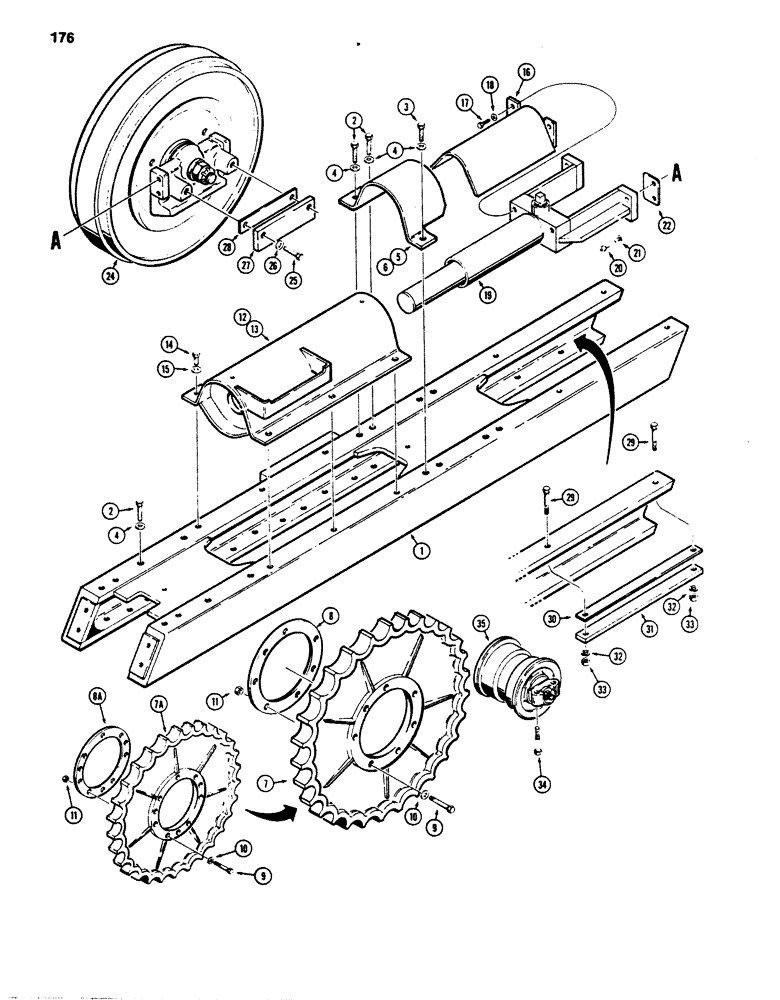

Запчасти Case 850B (176) - TRACK FRAMES AND RELATED PARTS (04) - UNDERCARRIAGE

1

R32505

FRAME - track, left-hand, tilt dozer models

1шт.

1

R32506

FRAME - track, right-hand, tilt dozer models

1шт.

1

R34148

FRAME

- track, loader, angle tilt dozer, and drawbar models

2шт.

2

26-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

20шт.

3

26-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 8

2шт.

4

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

22шт.

5

R35422

COVER

- track adjuster, left-hand

1шт.

6

R35423

COVER

- track adjuster, right-hand

1шт.

7

R34802

DRIVE SPROCKET

SPROCKET - drive, with 7 bolt holes, use with G100321 final drive shaft, see Fig. 168

1шт.

7a

R45906

DRIVE SPROCKET

SPROCKET - drive, with 10 bolt holes, use with G104743 final drive shaft, see Fig.168

1шт.

8

D39530

SHIM,.03125" Thk

Sprocket, with 7 bolt holes, if used .03125" Thk

1шт.

8a

R46160

SHIM,.032" Thk

Sprocket, with 10 bolt holes, if used .032" Thk

1шт.

9

R27954

BOLT

- special

20шт.

10

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

20шт.

11

280375

NUT,3/4"-10, GC

NUT - hex, self-locking, 3/4" - 13 NC

20шт.

12

R41331

HOUSING

RECOIL HOUSING - right - hand

1шт.

13

R41332

HOUSING

RECOIL HOUSING - left-hand

1шт.

14

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

12шт.

15

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - hardened

12шт.

16

R34499

GUARD ASSY.

GUARD - track adjuster

2шт.

17

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

18

R24323

WASHER

- hardened

4шт.

19

R32467

ADJUSTER

TRACK ADJUSTER ASSEMBLY - parts list Fig. 178

2шт.

20

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Use with Loctite 242 (blue) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

21

92-8

LOCK WASHER,1/2"

4шт.

22

R37875

SHIM,0.813mm Thk

(.032") 0.813mm Thk

1шт.

24

R35400

FRONT IDLER

IDLER ASSEMBLY - parts list Fig. 178

2шт.

25

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

8шт.

26

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

8шт.

27

R33929

PLATE - guide

4шт.

28

D35268

SHIM,1/32" Thk

(0.792 mm) 1/32" Thk

1шт.

SHIM MTG. HOLES ARE ROUND WITH 1 1/4"OD AND 25/32" ID.

1шт.

29

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

8шт.

30

CASR32491

SHIM

- 0.30" (0.762 mm) thick

1шт.

31

R32465

BAR

- wear

4шт.

32

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

33

25-1010

NUT,5/8"-11, G5

8шт.

34

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

Use with Loctite 242 (blue) Hex, 3/4"-10 x 3", G5

40шт.

35

REF

INSTRUCTION

TRACK ROLLER - single flange, see Fig. 180 & 182

10шт.
