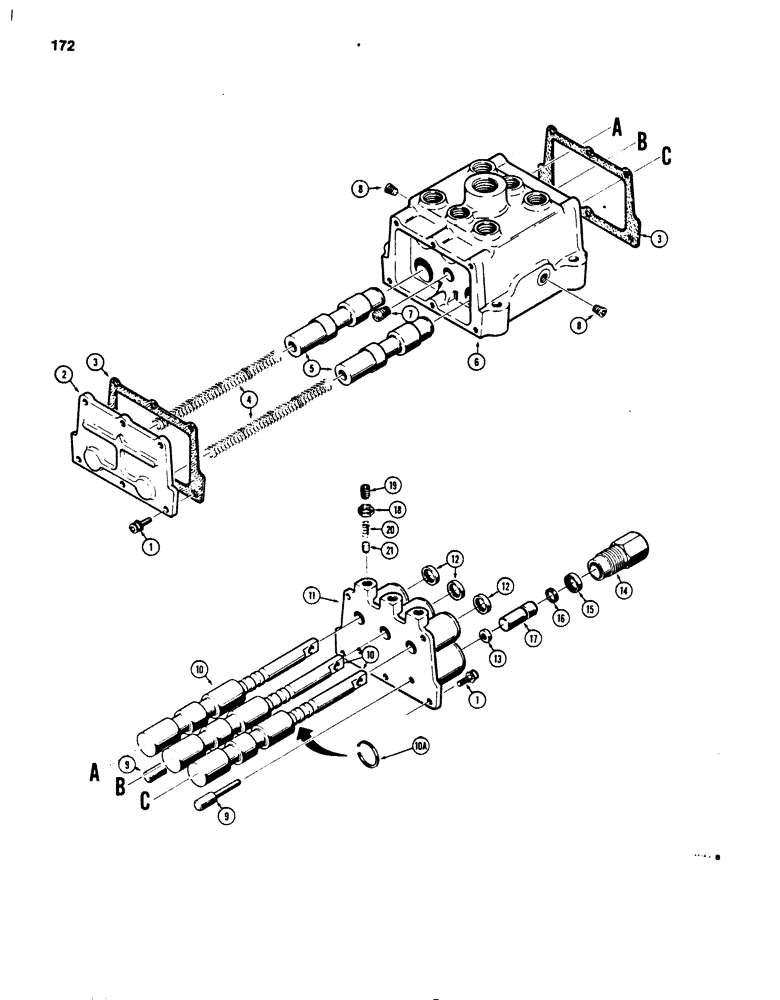

Запчасти Case 850B (172) - TRANSMISSION CONTROL VALVE (03) - TRANSMISSION

R20724

VALVE

CONTROL VALVE - three spool, Includes: Ref.#s1 - 21

1шт.

1

193-511

HEX SOC SCREW,Sems, 1/4"-28 x 5/8"

SCREW AND WASHER - 1/4" - 28 NF x 2-5/8"

11шт.

2

R21384

COVER

- rear

1шт.

3

35665

GASKET

- covers

2шт.

4

71125

SPRING

- brake spool

2шт.

5

74916

SPOOL

- brake

2шт.

6

NSS

NOT SOLD SEPARAT

BODY - control valve

1шт.

7

221-42

X,Sltd, 1/4" NPT

PLUG - slotted, 1/4" NPT

1шт.

8

221-1849

PLUG

- hex socket, 1/8" NPT

2шт.

9

71141

ROD

- front cover

2шт.

10

G107659

ROD

SPOOL - shift, Includes: Ref.#10A

3шт.

10a

71144

RING

SNAP RING - shift spool (Replaced 71141)

1шт.

11

R13941

COVER ASSY

COVER - front, Includes: Ref.#12 & 13

1шт.

12

71121

WIPER SEAL,15.88mm ID x 20.78mm OD x 2.74mm Thk

- spool, large

3шт.

13

51200266

SEAL

- rod, small (Replaced 711333)

2шт.

14

A50455

HOUSING

- piston, Includes: Ref.#15

2шт.

15

71121

WIPER SEAL,15.88mm ID x 20.78mm OD x 2.74mm Thk

- housing

1шт.

16

NLS

NO LONGER SERVICED

QUAD RING - piston

2шт.

17

A50457

PISTON

- brake

2шт.

18

131-407

LOCK NUT,Pal, 3/8" - 16, 0.145" High

NUT - hex, self-locking, 3/8"-16 NC

3шт.

19

178-655

SET SCREW,Hex Soc, 3/8"-16 x 1/2"

SCREW - set, hex socket, 3/8" - 16 NC x 1/2"

3шт.

20

71119

SPRING

- detent

3шт.

21

71120

VALVE

PIN - spool detent

3шт.
