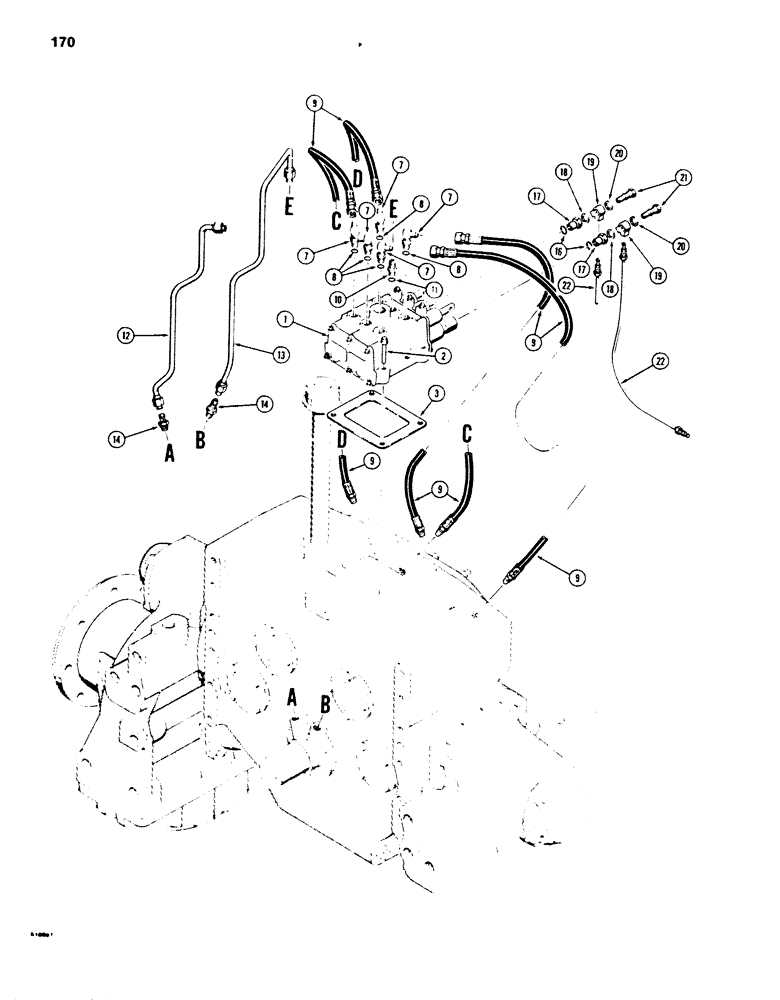

Запчасти Case 850B (170) - TRANSMISSION HYDRAULIC LINES (03) - TRANSMISSION

1

R20724

VALVE

CONTROL VALVE - transmission, parts list Fig. 172

1шт.

2

166-49

12 PT SCREW,Flg, 3/8" - 16 x 2", Gr 8

BOLT - Ferry head, 3/8" - 16 NC x 2"

4шт.

3

A50113

GASKET

- transmission control valve

1шт.

Part of Seal Kit P/N G102662

1шт.

4

G100654

FITTING

ELBOW - 90 degree, adjustable, not shown,Includes: Ref.# 5 see Fig. 134 Ref.#25

1шт.

5

2185007

O-RING - elbow, not shown, see Fig. 134 Ref.#26

1шт.

6

221-11

PLUG,Sq Hd, 1/8"-27

- square head, 1/8" NPT, not shown, see Fig. 134 Ref.#17

1шт.

7

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, adjustable, Includes: Ref.#8

5шт.

8

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

9

A50295

HYDRAULIC HOSE,6.35 mm ID x 419.00 mm, SAE100R1

6.35 mm ID x 419.00 mm, SAE 100R1

4шт.

10

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - straight, male, Incl. Ref. 11

1шт.

11

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, connector

1шт.

12

A54112

TUBE

- reverse

1шт.

13

A50471

TUBE

- forward

1шт.

14

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - straight, male

2шт.

17

72125

ADAPTER

- straight

2шт.

18

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET- inner, adapter

2шт.

19

51200243

FITTING

- special, tee

2шт.

20

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- outer

2шт.

21

A12864

BOLT

- special, hollow

2шт.

22

A50358

TUBE

- brake

2шт.

G102662

SEAL

KIT - seal, Includes: Ref. 3, for complete kit see Fig. 174

1шт.

16

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

0-RING - adaptor

2шт.
