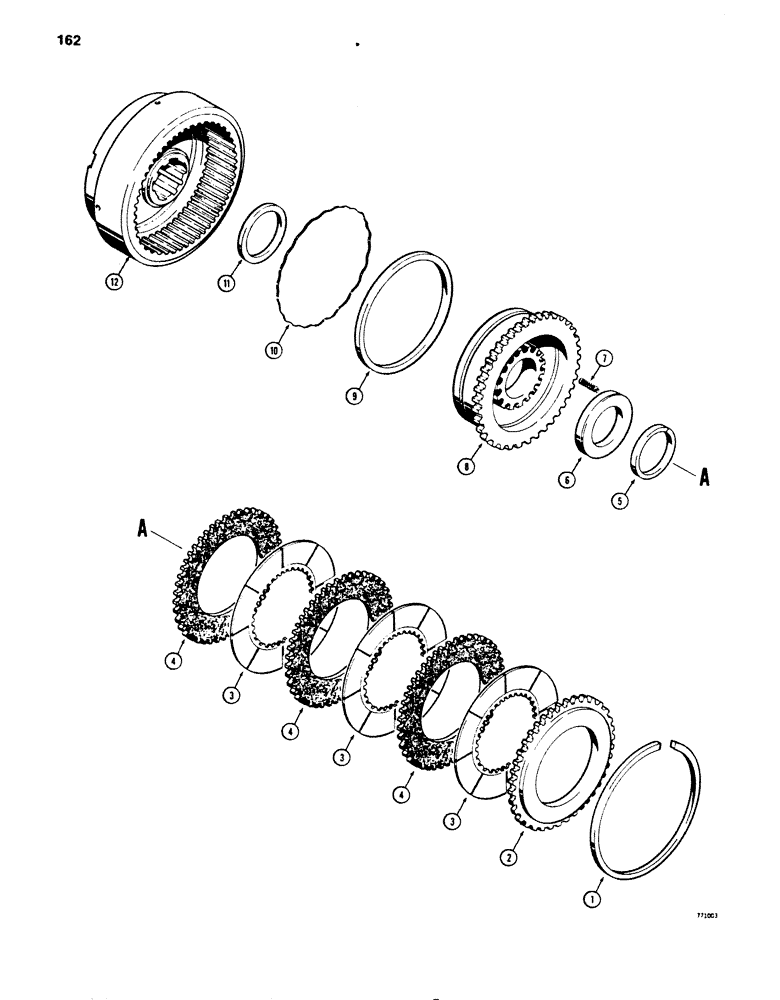

Запчасти Case 850B (162) - TRANSMISSION FORWARD AND REVERSE CLUTCHES, FOR IDENTIFICATION:ITEM 4 & 5 3/32" (2.29MM) STEEL CORE (03) - TRANSMISSION

A50411

CLUTCH

ASSEMBLY - for replacement order G102376 clutch, Includes: Ref.#s 1 - 12

2шт.

1

30785

RING

SNAP RING - clutch assembly

1шт.

2

A50030

PLATE

- clutch backing

1шт.

3

A50029

PLATE

DISC friction, internal teeth, 3/32", 2.29 mm, steel core

3шт.

A50029 and A50028 may be serviced as sets with G102354 and G101711. Never mix A50029 or A50028 with G102354 or G101711.

1шт.

4

A50028

PLATE

DISC steel, external teeth, 3/32", 2.29 mm, steel core

3шт.

A50029 and A50028 may be serviced as sets with G102354 and G101711. Never mix A50029 or A50028 with G102354 or G101711.

1шт.

5

A27233

RING

SNAP RING - spring retainer

1шт.

6

R11016

RETAINER

- clutch spring

1шт.

7

A51825

SPRING

- clutch

18шт.

8

A50571

PISTON

- clutch, aluminum

1шт.

9

50414

SUPPORT

RING - seal, piston

1шт.

Part of P/N G102663 Clutch Seal Kit

1шт.

10

G102095

SPRING

- wave

1шт.

Part of P/N G102663 Clutch Seal Kit

1шт.

11

A50415

SEAL

- drum

1шт.

Part of P/N G102663 Clutch Seal Kit

1шт.

12

A50290

DRUM

- clutch

1шт.

G102376

CLUTCH

ASSEMBLY - forward and reverse, Includes: Ref.#s1 - 12

2шт.

1

30785

RING

SNAP RING - clutch assembly, for id Ref.#s 4 & 5 have 1/8" (3.05 mm) steel core

1шт.

2

A50030

PLATE

- clutch backing, no longer used, service with G103391 plate, for id Ref.#s 4 & 5 have 1/8" (3.05 mm) steel core

1шт.

2

G103391

PLATE

- clutch backing, for id Ref.#s 4 & 5 have 1/8" (3.05 mm) steel core

1шт.

3

G102354

PLATE

DISC friction, internal teeth, 1/8", 3.05 mm, steel core, for id Ref.#s 4 & 5 have

3шт.

A50029 and A50028 may be serviced as sets with G102354 and G101711. Never mix A50029 or A50028 with G102354 or G101711.

1шт.

4

G101711

PLATE

DISC steel, external teeth, 1/8", 3.05 mm, steel core, for id Ref.#s 4 & 5 have

3шт.

A50029 and A50028 may be serviced as sets with G102354 and G101711. Never mix A50029 or A50028 with G102354 or G101711.

1шт.

5

A27333

LINING

SNAP RING - spring retainer, for id Ref.#s 4 & 5 have 1/8" (3.05 mm) steel core

1шт.

6

R11016

RETAINER

- clutch spring, for id Ref.#s 4 & 5 have 1/8" (3.05 mm) steel core

1шт.

7

A51825

SPRING

- clutch, for id Ref.#s 4 & 5 have 1/8" (3.05 mm) steel core

18шт.

8

A50571

PISTON

- clutch, aluminum, for id Ref.#s4 & 5 have 1/8" (3.05 mm) steel core

1шт.

9

A50414

SEALING RING

RING - seal, piston, for id Ref.#s 4 & 5 have 1/8" (3.05 mm) steel core

1шт.

Part of P/N G102663 Clutch Seal Kit

1шт.

10

G102095

SPRING

- wave, for id Ref.#s 4 & 5 have 1/8" (3.05 mm) steel core

1шт.

Part of P/N G102663 Clutch Seal Kit

1шт.

11

A50415

SEAL

- drum, for id Ref.#s4 & 5 have 1/8" (3.05 mm) steel core

1шт.

Part of P/N G102663 Clutch Seal Kit

1шт.

12

A50290

DRUM

- clutch, for id Ref.#s4 & 5 have 1/8" (3.05 mm) steel core

1шт.

G102663

KIT

clutch seal, Includes: Refs. 9, 10 and 11, six each, for id Ref.#s 4 & 5 have 1/8" (3.05 mm) steel core

1шт.
