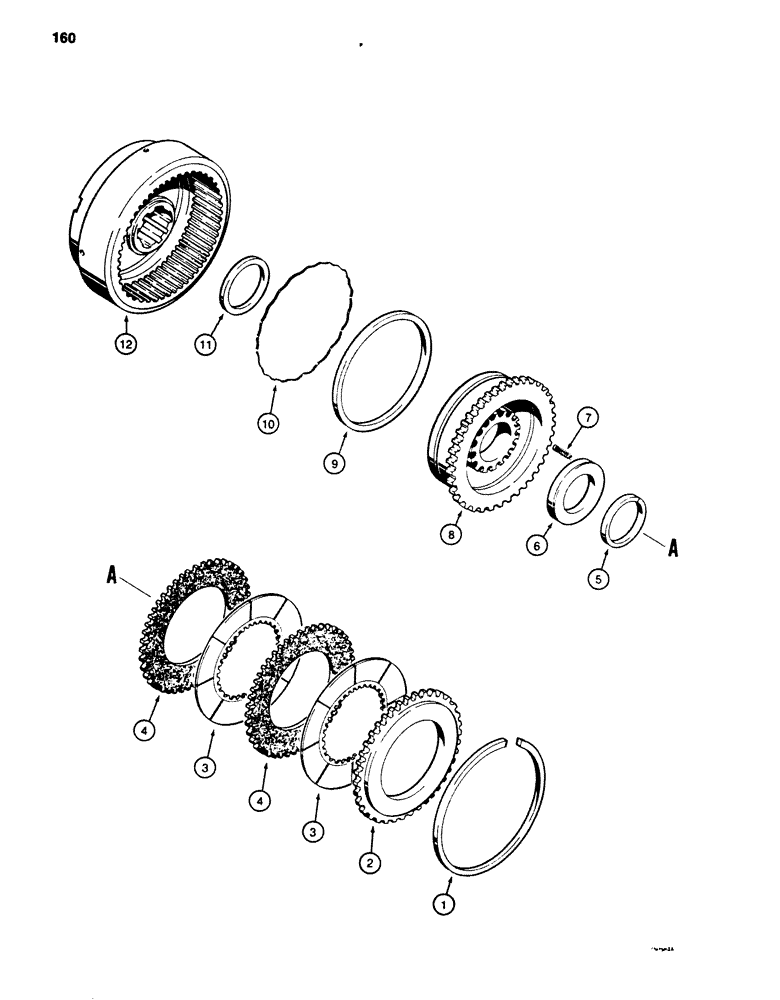

Запчасти Case 850B (160) - TRANSMISSION HIGH AND LOW SPEED CLUTCH, FOR IDENTIFICATION:ITEM 4 & 5 HAVE 3/32" (2.29MM) STEEL CORE (03) - TRANSMISSION

REF

INSTRUCTION

CLUTCH ASSEMBLY (A50412) - for replacement order( G102375) clutch

4шт.

REF

INSTRUCTION

CLUTCH ASSEMBLY (G102375)

4шт.

1

30785

RING

SNAP RING - clutch assembly

1шт.

2

A50030

PLATE

- clutch backing

1шт.

3

A50029

PLATE

FRICITION DISC - internal teeth, 3/32", 2.29 mm, steel core

2шт.

A50029 and A50028 may be serviced as sets with G102354 and G101711. Never mix A50029 or A50028 with G102354 or G101711.

1шт.

3

G103391

PLATE

clutch backing, for id Ref #'s 4 and 5 have 1/8" (3.05 mm) steel core

1шт.

4

A50028

PLATE

DISC - steel, external teeth, 3/32", 2.29 mm, steel core

2шт.

A50029 and A50028 may be serviced as sets with G102354 and G101711. Never mix A50029 or A50028 with G102354 or G101711.

1шт.

4

G102354

PLATE

FRICTION DISC - internal teeth, 1/8", 3.05 mm, steel core, for id Ref.#s 4 & 5 have

2шт.

5

A27233

RING

SNAP RING - spring retainer

1шт.

6

R11016

RETAINER

- clutch spring

1шт.

7

A51825

SPRING

- clutch

18шт.

8

A50571

PISTON

- clutch, aluminum

1шт.

9

A50414

SEALING RING

RING - seal, piston

1шт.

Part of P/N G102663 Clutch Seal Kit

1шт.

10

G102095

SPRING

- wave

1шт.

Part of P/N G102663 Clutch Seal Kit

1шт.

11

A50415

SEAL

- drum

1шт.

Part of P/N G102663 Clutch Seal Kit

1шт.

12

A50288

DRUM

- clutch

1шт.

13

G102663

KIT

clutch seal, Includes: Refs. 10, 11 and 12, six each, for id Ref.#s 4 & 5 have 1/8" (3.05 mm) steel core

1шт.
