(158) - TRANSMISSION HIGH-LOW CLUTCHES AND SHAFTS

Запчасти Case 850B (158) - TRANSMISSION HIGH-LOW CLUTCHES AND SHAFTS (03) - TRANSMISSION

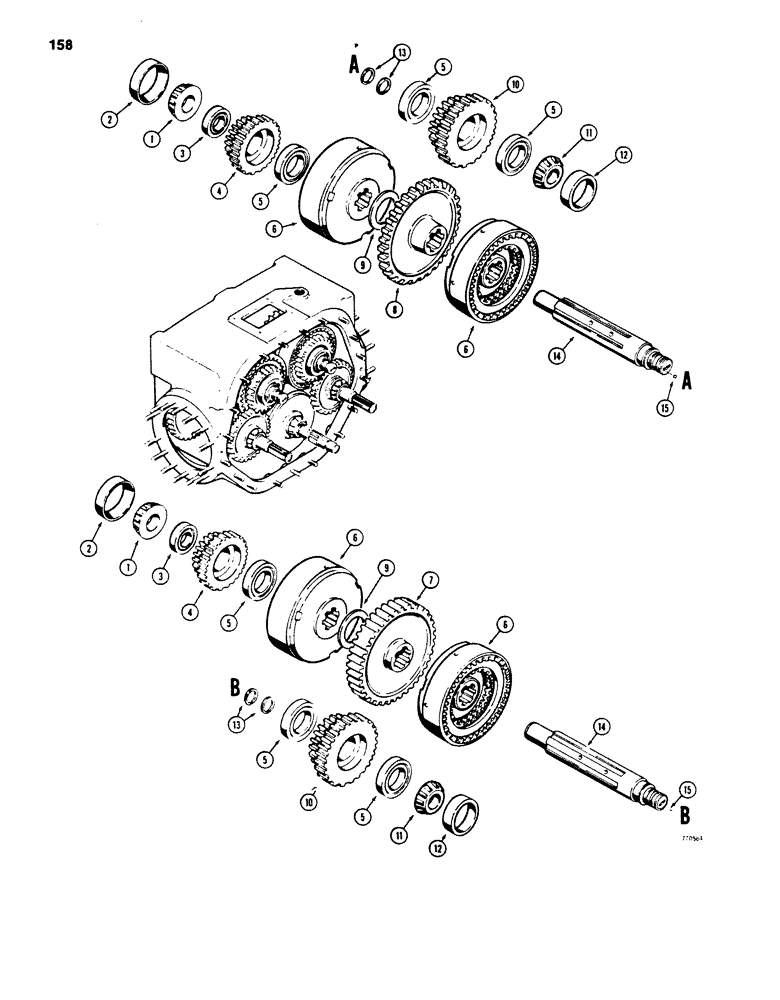

Схема запчастей Case 850B - (158) - TRANSMISSION HIGH-LOW CLUTCHES AND SHAFTS (03) - TRANSMISSION
14
6
12
9
15
10
15
11
5
5
13
4
12
5
10
6
1
3
8
5
5
14
5
9
11
2
7
2
5
1
4
3
6
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

G100313

BEARING CONE,34.92mm ID x 20.64mm W

TAPERED ROLLER BEARING - clutch shaft, rear

2шт.

2

A50264

BEARING CUP,72mm OD x 14.2mm W

CUP - tapered roller bearing

2шт.

3

40025

BALL BEARING,1.378" ID x 2.4409" OD x 0.5512"

BALL BEARING - low clutch gear, rear

2шт.

4

A50574

SHAFT

GEAR - low clutch, 20 and 29 teeth

2шт.

5

G10418

BEARING, BALL

BALL BEARING - low clutch gear

6шт.

6

REF

INSTRUCTION

CLUTCH ASSEMBLY - parts list Fig. 160

4шт.

7

NLS

NO LONGER SERVICED

- driven, right-hand, 51 teeth

1шт.

8

A50511

GEAR

- driven, left-hand, 51 teeth

1шт.

9

A50668

SHIM,.032" Thk

Spacer, Gear .032" Thk

2шт.

10

G100314

GEAR

- high clutch, 29 and 32 teeth

2шт.

11

A31138

ROLLER BEARING,1.771" ID x 1"

TAPERED ROLLER BEARING - clutch shaft, front

2шт.

12

G100312

BEARING, CUP,85mm OD x 19.05mm W

CUP - tapered roller bearing

2шт.

13

A50389

SEAL

- ring, shaft

4шт.

Part of Seal Kit P/N G102662

1шт.

14

G100310

GEAR

SHAFT- high and low clutch

2шт.

15

211-7

BALL,1/4" Dia

- steel (6mm) 1/4" Dia

2шт.

G102662

SEAL

KIT - seal, Includes: Ref. 13, for complete kit see Fig. 174

1шт.
