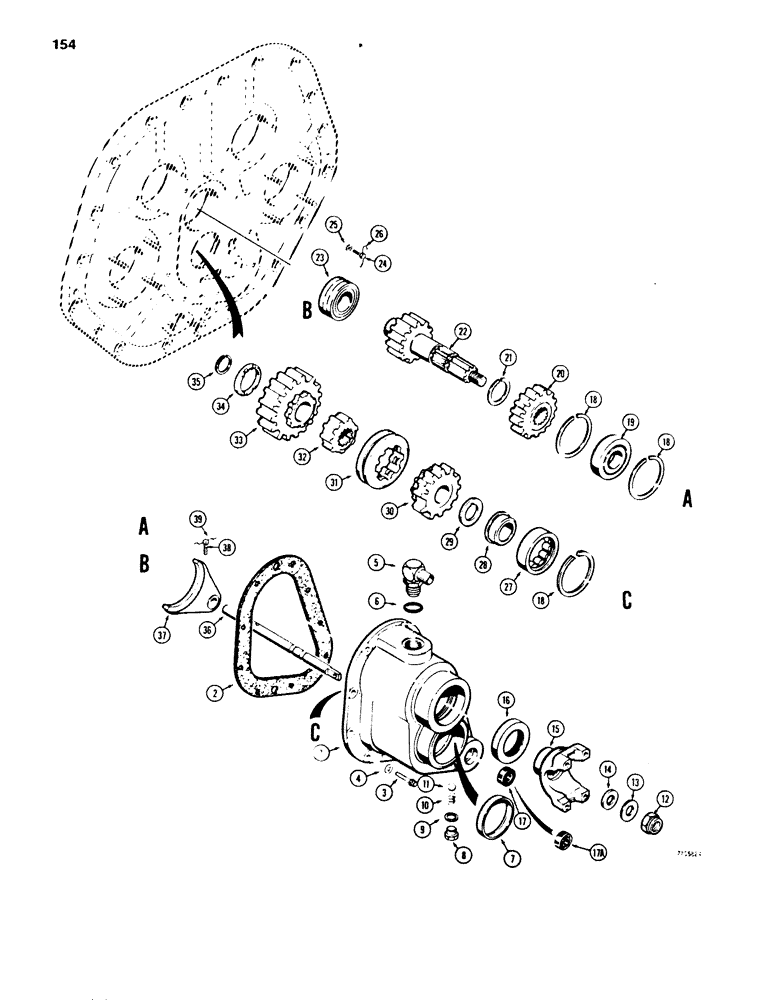

Запчасти Case 850B (154) - TRANSMISSION RANGE SHIFT (03) - TRANSMISSION

1

NSS

NOT SOLD SEPARAT

HOUSING - range gear, see Fig. 150 for service

1шт.

2

A50269

GASKET

- range gear housing

1шт.

Part of Seal Kit P/N G102662

1шт.

3

166-46

12 PT SCREW,Flg, 3/8" - 16 x 1 1/4", Gr 8

SCREW - Ferry head, 3/8" - 16 NC x 1-1/4"

9шт.

4

D32117

COPPER WASHER

WASHER, COPPER

9шт.

Part of Seal Kit P/N G102662

1шт.

5

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW - 90 degree, adjustable

1шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

7

A50268

PLUG

- cap

1шт.

Part of Seal Kit P/N G102662

1шт.

8

A50094

PLUG,Screw, 5/8" - 18 x 0.377"

SCREW - special, detent

1шт.

9

A50093

SEALING WASHER

WASHER - special

1шт.

Part of Seal Kit P/N G102662

1шт.

10

A50092

SPRING

- detent

1шт.

11

211-13

BALL,1/2" Dia

- steel (13mm) 1/2" Dia

1шт.

12

131-37

LOCK NUT,3/4"-16

NUT - hex, self-locking, 3/4" - 14 NF

1шт.

DESCRIPTION CHANGE FROM 14NF TO 16NF

1шт.

13

32601

WASHER

- special

1шт.

14

34395

SEALING WASHER

WASHER - seal

1шт.

Part of Seal Kit P/N G102662

1шт.

15

A50580

YOKE

- input shaft, to drive shaft

1шт.

16

A51886

SHAFT

- input shaft

1шт.

Part of Seal Kit P/N G102662

1шт.

17

A50421

OIL SEAL,19.05mm ID x 31.95mm OD x 6.73mm Thk

- selector shaft, no longer used, service with G105118 seal

1шт.

Part of Seal Kit P/N G102662

1шт.

17a

G105118

OIL SEAL

- selector shaft, double lip

1шт.

Part of Seal Kit P/N G102662

1шт.

18

R13804

RING

SNAP RING - bearing retaining

3шт.

19

A26537

BALL BEARING,34.99mm ID x 80mm OD x 21mm W

- input shaft, front

1шт.

20

G100307

GEAR

DRIVE GEAR - input shaft

1шт.

21

R15364

SNAP RING,#152, 1.527", Ext

- drive gear

1шт.

22

G101313

SHAFT

INPUT SHAFT - transmission

1шт.

23

G101324

ROLLER BEARING

- input shaft, rear

1шт.

24

A15983

BOLT,M10 x 1.25 x 40mm, Cl 10.9

- hex drill head, 3/8" - 16 NC x 3/4"

2шт.

25

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

26

391-804

ELECTRICAL WIRE

WIRE - tie

1шт.

27

A50258

ROLLER BEARING,3.1510" OD x 0.8268"

- output shaft, front

1шт.

28

A50332

BEARING CONE,1.25" ID x 0.8268"

RACE - bearing

1шт.

29

A50333

WASHER

THRUST WASHER - outer driven gear

1шт.

30

G100308

GEAR

DRIVEN GEAR - output shaft, front

1шт.

31

A51806

COLLAR

SLEEVE - range selector

1шт.

32

A50502

COLLAR

- range selector

1шт.

33

G100309

GEAR

DRIVEN GEAR - output shaft, rear

1шт.

34

A50071

WASHER

THRUST WASHER - rear driven gear

1шт.

35

A26946

RING

SNAP RING - rear driven gear

1шт.

36

A50420

SEAL

- range selector

1шт.

A51886 - shaft - this shaft is no longer available. order G107672 shaft and fork.

1шт.

37

A51469

FORK

- range selector

1шт.

A51469 - fork - this fork is no longer available. order G107672 shaft and fork.

1шт.

38

A7044

SET SCREW,3/8" - 16 x 7/8"

- special

1шт.

39

391-804

ELECTRICAL WIRE

WIRE - tie, screw

1шт.

G102662

SEAL

KIT - seal, Includes: Ref. 2, 4, 7, 9, 14, 16, 17 and 17A, for complete kit see Fig. 174

1шт.
