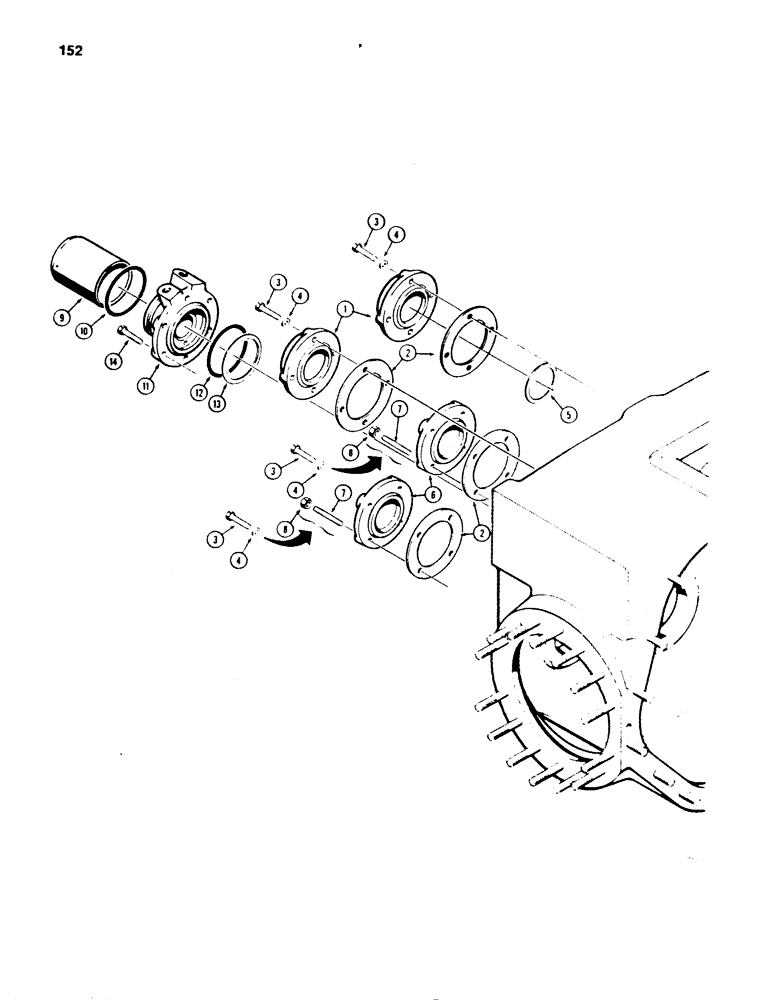

Запчасти Case 850B (152) - TRANSMISSION REAR COVERS (03) - TRANSMISSION

1

A50271

COVER

- clutch shafts

2шт.

2

A50348

SHIM,.003" Thk

(0.076 mm) .003" Thk

1шт.

Part of Seal Kit P/N G102662

1шт.

2

A50272

SHIM,.005" Thk

(0.127 mm) .005" Thk

1шт.

Part of Seal Kit P/N G102662

1шт.

2

CASA50347

SHIM

- .010" (0.254 mm) thick

1шт.

Part of Seal Kit P/N G102662

1шт.

3

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

16шт.

4

D32117

COPPER WASHER

WASHER, COPPER

16шт.

Part of Seal Kit P/N G102662

1шт.

5

G100338

SHIM,.028" Thk

(0.711 mm) .028" Thk

1шт.

Part of Seal Kit P/N G102662

1шт.

6

A50271

COVER

- pinion shafts

2шт.

7

G102128

BOLT

- 3/8" - 16 NC x 1-1/2", no longer used, service with 12-620 bolt and D32117 washer

8шт.

8

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, no longer used

8шт.

9

G101696

PROTECTIVE COVER

COVER - PTO shaft

1шт.

10

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

- cover, winch models only

1шт.

11

G102243

COVER

- output shaft, inner

1шт.

G102243 PER PRINT REV. C...ONLY HAS 5 BOLT HOLES (HAD 6 BUT THE ONE WAS REMOVED IN 1982), THE O.D. SHOULD BE 5.00".

1шт.

12

A50055

SEALING RING

RING - rubber

1шт.

Part of Seal Kit P/N G102662

1шт.

13

A50053

SHIM,.003" Thk

(0.076 mm) .003" Thk

1шт.

Part of Seal Kit P/N G102662

1шт.

13

40590

SHIM

- .005" (0.127 mm) thick

1шт.

Part of Seal Kit P/N G102662

1шт.

13

40591

SHIM

- .010" (0.254 mm) thick

1шт.

Part of Seal Kit P/N G102662

1шт.

14

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

5шт.

14

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

G102662

SEAL

KIT - seal, Includes: all the Ref. 2's, Ref. 4, 5, 12 and all the Ref. 13's, for complete kit see Fig.174.

1шт.
