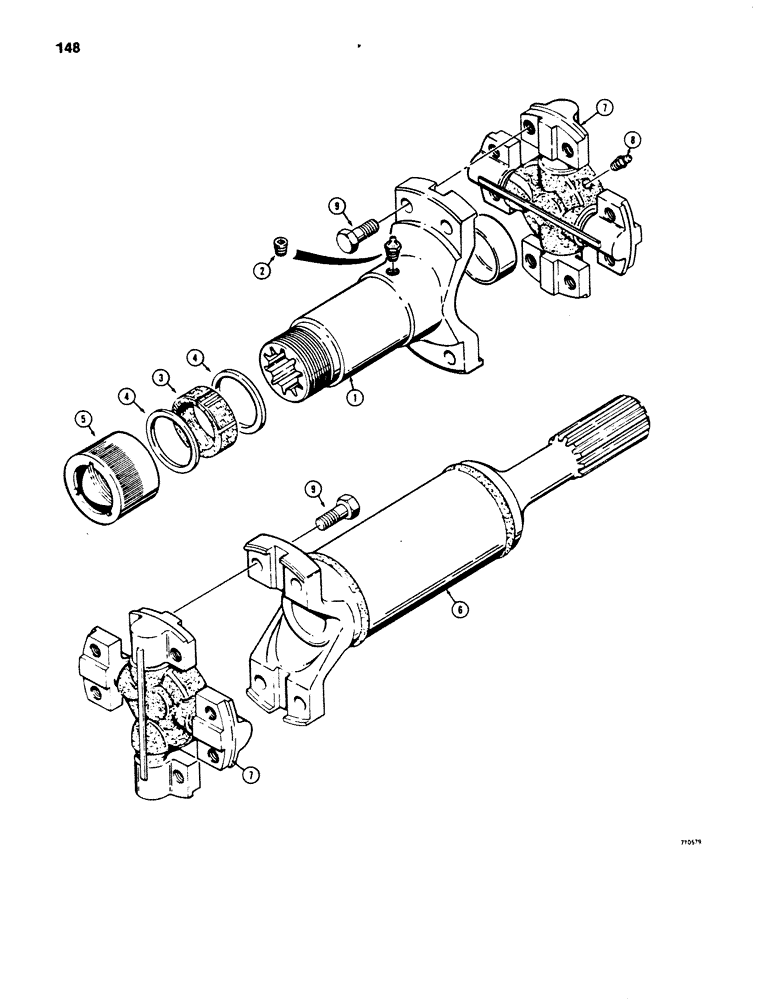

Запчасти Case 850B (148) - DRIVE SHAFT (03) - TRANSMISSION

R34622

SHAFT

DRIVE SHAFT ASSEMBLY - Includes: P/N A43502 and Ref.#s1 - 9

1шт.

A43502

YOKE

ASSEMBLY - drive shaft, Includes: Ref.#s1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

YOKE - sliding, drive shaft

1шт.

2

221-849

PLUG,Hex Soc, 1/8"-27

- square socket, 1/8" NPT

1шт.

3

A18390

WASHER

- felt

1шт.

4

A18387

WASHER

- retaining

2шт.

5

A18388

CAP

- sliding yoke

1шт.

6

D78335

YOKE

SHAFT - drive shaft

1шт.

L36152

KIT

UNIVERSAL JOINT ASSEMBLY - drive shaft, Includes: Ref.#s7 - 9

2шт.

7

NSS

NOT SOLD SEPARAT

UNIVERSAL JOINT - drive shaft

1шт.

8

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

GREASE FITTING - straight, 1/4" x 28 NF

1шт.

9

28-616

BOLT,Hex, 3/8" - 24 x 1", Gr 8

8шт.
