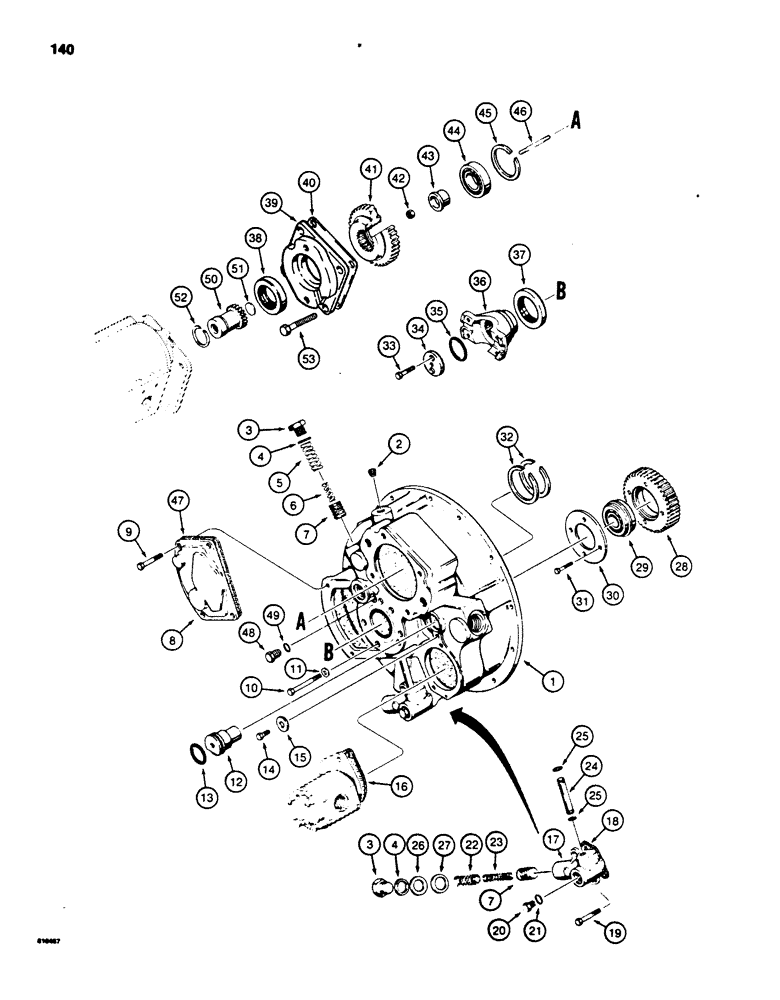

Запчасти Case 850B (140) - TORQUE CONVERTER, HOUSING, COVERS, AND GEARS (03) - TRANSMISSION

R34957

CONVERTER

TORQUE COVERTER - loader models, Twin Disc spec. no. N64015 also Includes: Ref.#s1 - 49 on Fig. 142 & 144

1шт.

R34958

TORQUE CONVERTER

- dozer and drawbar models, Twin Disc spec. no. N64014, also, Includes: Ref.#s1 - 49 and parts on Figs. 142 & 144

1шт.

1

D77622

HOUSING

- torque converter

1шт.

2

221-841

PLUG

- square socket, 1/4"

1шт.

3

D32013

PLUG

- relief valve

2шт.

4

D32119

WASHER,25.4mm ID x 34.8mm OD x 1.52mm Thk

- relief valve

2шт.

Part of Seal Kit P/N R38108

1шт.

5

D32031

SPRING

- outer, relief valve

1шт.

Part of Overhaul Kit P/N R40939

1шт.

6

D32021

SPRING

- inner, relief valve

1шт.

Part of Overhaul Kit P/N R40939

1шт.

7

D32014

PISTON

- relief valve

2шт.

Part of Overhaul Kit P/N R40939

1шт.

8

D32009

COVER ASSY

PLATE - cover, housing

1шт.

9

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

10

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex head, 3/8" - 16 NC x 2-1/2"

6шт.

11

D32117

COPPER WASHER

WASHER, COPPER - Hardened

6шт.

Part of Seal Kit P/N R38108

1шт.

12

R29100

SHAFT

- idler gear

1шт.

13

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

- idler gear shaft

1шт.

Part of Seal Kit P/N R38108

1шт.

14

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

15

D32118

WASHER

- special

1шт.

16

D32000

GASKET

- pump, for pump mounting, see Fig.48

1шт.

Part of Seal Kit P/N R38108

1шт.

17

N6952

HOUSING

BODY - pressure regulator valve

1шт.

18

D32002

GASKET

- pressure regulator valve

1шт.

Part of Seal Kit P/N R38108

1шт.

19

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

20

214389

PLUG,3/4" - 16 ORB

Includes Ref. 21 Hex Hd, 3/4"-16 ORB

1шт.

21

2185006

O-RING - plug

1шт.

Part of Seal Kit P/N R38108

1шт.

22

D72857

SPRING

- outer

1шт.

Part of Overhaul Kit P/N R40939

1шт.

23

D72856

SPRING

- inner

1шт.

Part of Overhaul Kit P/N R40939

1шт.

24

R30090

TUBE,0.62" ID x 0.87" OD x 3.62" L

- pressure regulator valve

1шт.

Part of Overhaul Kit P/N R40939

1шт.

25

D32114

O-RING,0.75" ID x 0.875" OD

- tube

2шт.

Part of Overhaul Kit P/N R40939

1шт.

26

N6953

SHIM,.0359" Thk

Pressure regulator valve .0359" Thk

1шт.

27

N6954

SHIM,.0239" Thk

Pressure regulator valve .0239" Thk

1шт.

Part of Seal Kit P/N R38108

1шт.

R38108

GASKET KIT

KIT -seal, Includes: Ref.#s4, 11,13,16,18,21, and 27 on Figs. 140 - 144

1шт.

R40939

KIT

- overhaul Includes: Ref.#s 5,6,7,22,23,24, and 25 on Fig. 140 - 144

1шт.

R34957

CONVERTER

TORQUE CONVERTER - loader models, continued

1шт.

R34958

TORQUE CONVERTER

- dozer and drawbar models, continued

1шт.

28

R29096

GEAR

IDLER GEAR - torque converter

1шт.

29

R29093

BALL BEARING,29.99mm ID x 72mm OD x 18.87mm W

- idler gear

1шт.

Part of Overhaul Kit P/N R40939

1шт.

30

R29099

PLATE

- retaining

1шт.

31

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

32

D32070

RING

SNAP RING - carrier

2шт.

Part of Overhaul Kit P/N R40939

1шт.

33

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

2шт.

34

D32018

PLATE

- yoke retaining

1шт.

35

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

- plate

1шт.

Part of Seal Kit P/N R38108

1шт.

36

D31315

YOKE

- drive shaft

1шт.

37

D51518

OIL SEAL,57.15mm ID x 82.75mm OD x 13.11mm Thk

OIL SEAL - drive shaft yoke

1шт.

Part of Seal Kit P/N R38108

1шт.

38

D51517

SEAL,50.8mm ID x 76.2mm OD x 13.11mm Thk

OIL SEAL - driven gear

1шт.

Part of Seal Kit P/N R38108

1шт.

39

D78329

PLATE

ADAPTER - pump to driven gear

1шт.

40

D32004

GASKET

- adapter

1шт.

Part of Seal Kit P/N R38108

1шт.

41

D32003

GEAR

DRIVEN GEAR - torque converter

1шт.

42

25-116

NUT,Hex, 3/8"-24, G5

- hex, 3/8" - 24 NF

1шт.

43

D32032

BEARING,1.3782" OD x 1.03

RETAINER - ball bearing

1шт.

44

A26581

BALL BEARING,1.378" ID x 2.8346" OD x 0.6693"

- driven gear

1шт.

Part of Overhaul Kit P/N R40939

1шт.

45

D32069

RING

SNAP RING - driven gear

1шт.

Part of Overhaul Kit P/N R40939

1шт.

46

D32067

STUD

- 3/8" - 24 NF x 1-1/2"

1шт.

47

D32005

GASKET

- cover plate

1шт.

Part of Seal Kit P/N R38108

1шт.

48

9672438

PLUG,7/16" - 20 ORB

Incl. Ref. #49 Hex Hd, 7/16"-20 ORB

1шт.

49

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- plug

1шт.

Part of Seal Kit P/N R38108

1шт.

50

D78330

HUB

GEAR - equipment pump drive

1шт.

51

41-24

PLUG

EXPANSION PLUG - gear

1шт.

52

D78328

RING

SNAP RING - gear

1шт.

Part of Overhaul Kit P/N R40939

1шт.

53

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

R38108

GASKET KIT

KIT - seal, Includes: Ref. 4, 11, 13, 16, 18, 21, 27, 35, 37, 38, 40, 47 and 49 and parts in Figure 144

1шт.

R40939

KIT

- overhaul, Includes: Ref. 5, 6, 7, 22, 23, 24, 25, 29, 32, 44, 45 and 52 and parts in Figure 144

1шт.
