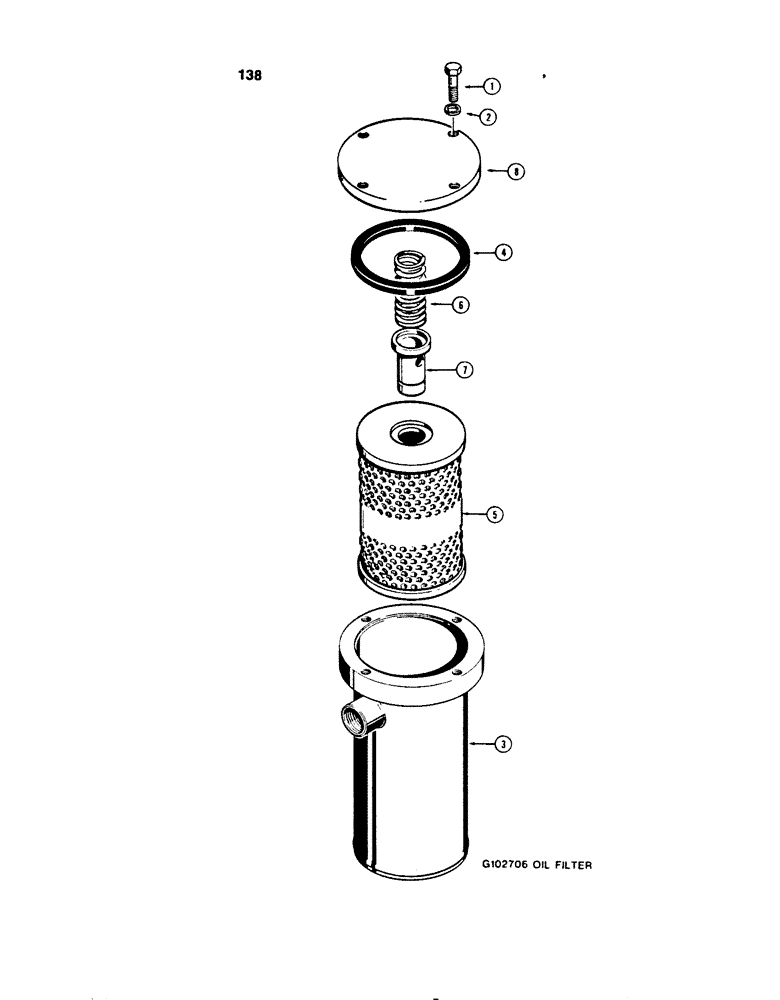

Запчасти Case 850B (138[A]) - G102706 FILTER - TRANSMISSION (03) - TRANSMISSION

G102706

FILTER

ASSEMBLY - oil, transmission, Includes: Ref.#1 - 8

1шт.

1

26-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 8

- hex head, 3/8" - 16 NC x 1-1/8"

4шт.

2

92-6

LOCK WASHER,3/8"

4шт.

3

G102585

TUBE

BODY - filter

1шт.

4

G103626

O-RING,4.234" ID x 4.512" OD

QUAD RING - filter

1шт.

Part of Filter Kit, P/N G102111

1шт.

5

G102111

HYDRAULIC OIL FILTER

KIT - filter, includes element and G103626 quad ring, Ref.# 4

1шт.

6

G101674

VALVE SPRING

SPRING - element

1шт.

7

D37207

VALVE

- element

1шт.

8

G101675

COVER

- filter

1шт.
