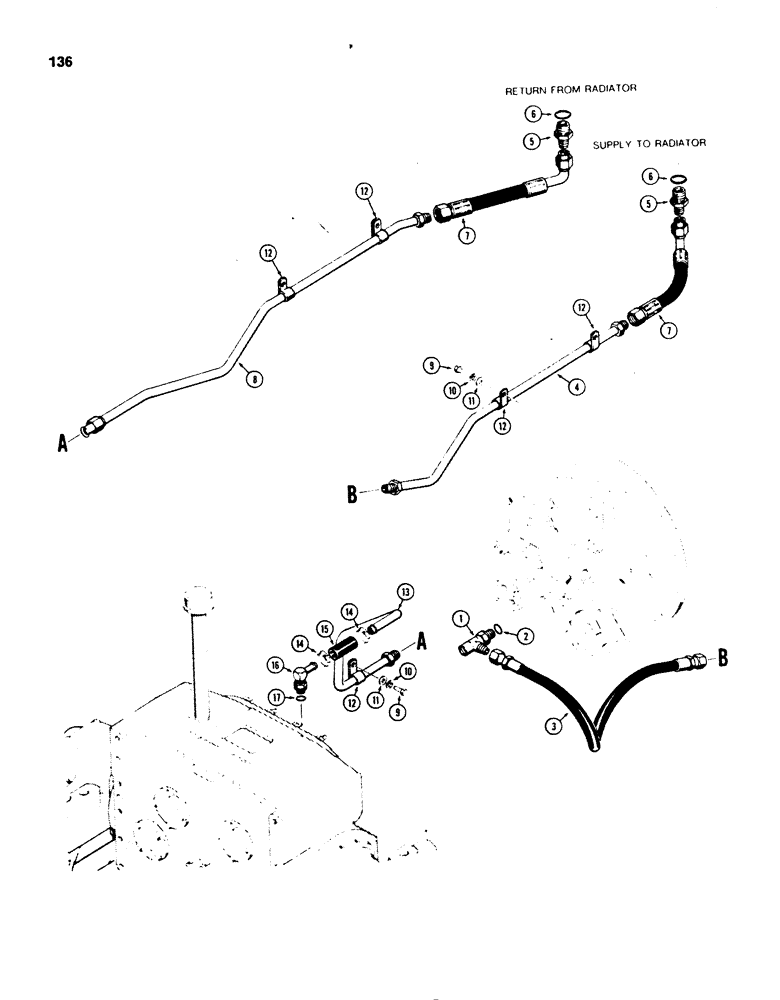

Запчасти Case 850B (136) - CRAWLER HYDRAULIC CIRCUIT, OIL COOLER LINES (03) - TRANSMISSION

1

D44004

FITTING

TEE - adjustable, Includes: Ref.#2

1шт.

2

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- tee

1шт.

3

R35119

HOSE

- 18" (457 mm) long

1шт.

4

R35117

TUBE

- right-hand

1шт.

5

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - straight, male, Incl. Ref.#6

2шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- connector

1шт.

7

R35116

HOSE

ASSEMBLY - at radiator

2шт.

8

R35123

TUBE,0.75" OD

- left-hand

1шт.

9

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

5шт.

10

92-6

LOCK WASHER,3/8"

5шт.

11

195-25

WASHER,3/8"

- flat, 3/8"

5шт.

12

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- tube

5шт.

13

R35121

TUBE,0.75" OD

- rear, to transmission

1шт.

14

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

- adjustable, tube #16, 0.81/1.50 Type F Worm

2шт.

15

R20804

HOSE,19.00 mm ID x 76.20 mm, SAE 100R3

1шт.

16

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW - 90 degree, adjustable, Incl. Ref.#17

1шт.

17

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.
