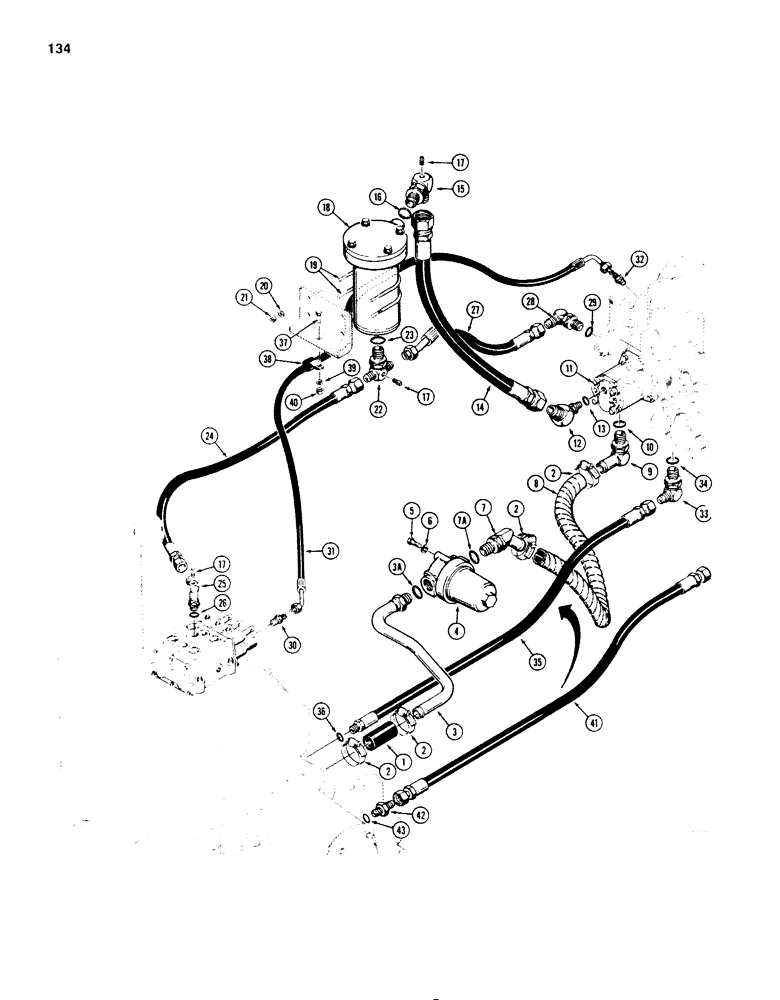

Запчасти Case 850B (134) - CRAWLER HYDRAULIC CIRCUIT, TORQUE CONVERTER TO TRANSMISSION (03) - TRANSMISSION

1

R33306

HOSE

- 1-1/4" (32mm) ID x 3-1/2" (89 mm) long

1шт.

2

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

4шт.

3

R35112

TUBE,1.25" OD x 8.69, 11.6" L

- hydraulic, transmission to filter, Includes: Ref.#3A

1шт.

3a

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- tube

1шт.

4

R35926

FILTER

- oil, suction, parts list Fig. 138

1шт.

5

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

6

92-8

LOCK WASHER,1/2"

2шт.

7

217-320

FITTING,45 Degree Elbow, 1-1/4" Hose Barb x 1-5/16" - 12 Male ORB

ELBOW - 45 degree, barb fitting, Includes: Ref.#7A

1шт.

7a

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

8

R35798

HOSE,1.25" ID x 10.00"

- 1.25" ID x 10.00"

1шт.

9

217-358

FITTING,90 Degree Elbow, 1-1/4" Hose Barb x 1-5/16" - 12 Male ORB

ELBOW - 90 degree, barb fitting, Includes: Ref.#10

1шт.

10

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

0-RING - elbow

1шт.

11

REF

INSTRUCTION

PUMP - torque converter, parts list Fig. 146

1шт.

12

218-5527

ELBOW,45 Degree, 1 1/16"-12 x 3/4"-16, 37 Degree

Incl. Ref 13 45º, 1 1/16"-12 x 3/4"-16, 37º

1шт.

14

R35114

HOSE

- 17" (432 mm) long, Serial Range: pump-filter

1шт.

15

R38928

FITTING

ELBOW - 90 degree, adjustable, Includes: Ref.#16

1шт.

16

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

17

221-11

PLUG,Sq Hd, 1/8"-27

- square head, 1/8" NPT

3шт.

18

G102706

FILTER

- oil, transmission, parts list Fig. 138

1шт.

19

R38925

BOLT (SPREADER)

U-BOLT - filter retaining

2шт.

20

195-25

WASHER,3/8"

- flat, 3/8"

4шт.

21

131-352

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 1/4" - 16 NC

4шт.

22

R38926

FITTING

TEE - adjustable (Subs R38962), Includes: Ref.#23

1шт.

23

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- tee

1шт.

24

R34199

HOSE

- 30" (762 mm) long, Serial Range: filter-transmission

1шт.

25

G100654

FITTING

ELBOW - 90 degree, adjustable, Includes: Ref.#26

1шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

27

R40571

HOSE

ASSEMBLY - filter to torque converter

1шт.

28

R19576

FITTING

ELBOW - 90 degree, adjustable, Includes: Ref.#29

1шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

30

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - straight, male

1шт.

31

R34863

HOSE

ASSEMBLY - transmission to torque converter

1шт.

32

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - straight, male

1шт.

33

218-5130

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

90º, 7/8-14 flare x 1-5/16"-12 adj O-ring boss, adjustable, Incl. Ref 34

1шт.

34

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

35

R35208

HOSE

- 31" (787 mm) long, no longer used, service with R34199 hose and 218-5066 connector, Includes: Ref.#36

1шт.

37

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

38

49858

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- hose

1шт.

39

92-6

LOCK WASHER,3/8"

1шт.

40

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

41

R34199

HOSE

- 30" (762 mm) long, transmission to torque converter

1шт.

42

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., , straight, Incl. Ref. 43 7/8"-14, 37º x 3/4"-16, O-Ring

1шт.

13

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- elbow

1шт.

36

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- hose

1шт.

43

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- connector

1шт.
