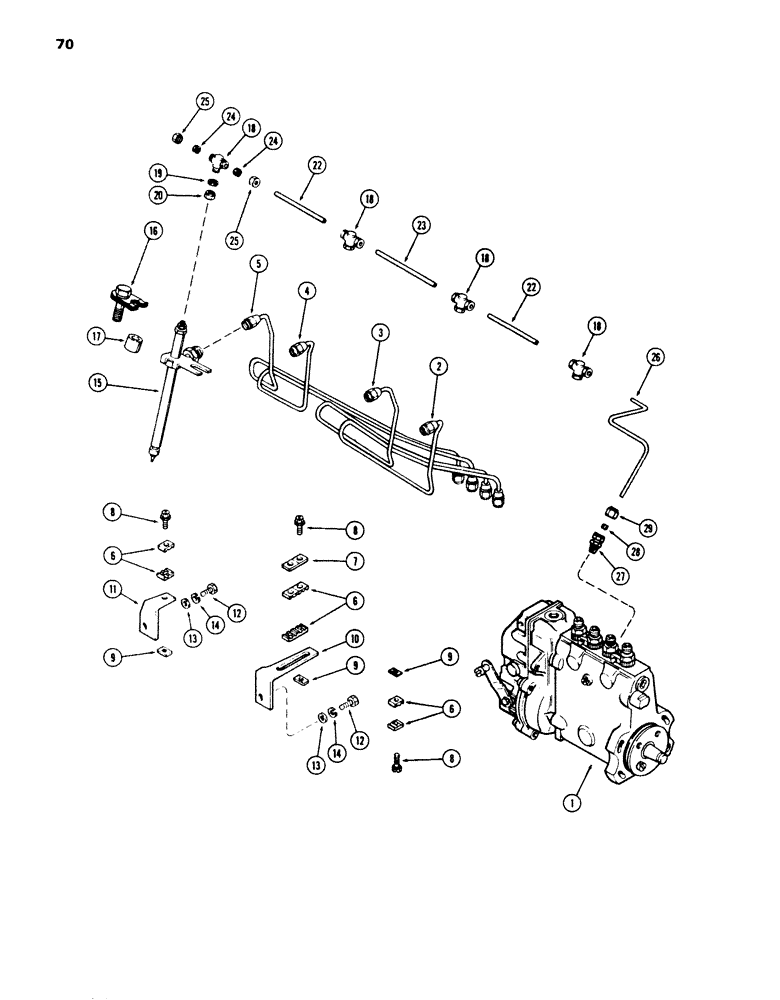

Запчасти Case 850B (070) - FUEL INJECTION SYSTEM, 336BD AND 336BDT DIESEL ENGINES (02) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection (See Fig.76)

1шт.

The P/N for the stop/pivot is A59101.

1шт.

2

A58702

TUBE

ASSEMBY - fuel injection, No. 1 cylinder

1шт.

3

A58703

TUBE

ASSEMBLY - fuel injection, No. 2 cylinder

1шт.

4

A58704

TUBE

ASSEMBLY - fuel injection, No. 3 cylinder

1шт.

5

A58705

TUBE

ASSEMBLY - fuel injection, No. 4 cylinder

1шт.

6

A58709

BRACKET

CLAMP - injection tubes

10шт.

7

A58710

PLATE

- clamp support

1шт.

8

163-19

SCREW,Sl Hex Wshr Hd, #10 - 24 x 1"

BOLT - clamp (#10 x 1" NC, slotted hex head)

5шт.

9

131-612

SPRING NUT,Flat, #10 - 24, 0.022" Thk

NUT - # 10 Tinnerman

4шт.

10

A155451

BRACKET

- front, tube support

1шт.

11

A155452

BRACKET

- rear, tube support

1шт.

12

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

13

195-25

WASHER,3/8"

- 3/8 x 13/16 x 1/16" (9.5 x 20.6 x 1.6 mm)

2шт.

14

92-6

LOCK WASHER,3/8"

2шт.

15

A140830

INJECTOR ASSY.

NOZZLE ASSEMBLY - fuel injector (See Fig. 78)

4шт.

A140830R

REMAN-INJECT NOZZLE

850B

4шт.

A140830C

CORE-NOZZLE, INJECT

Return Number

1шт.

16

A58695

CLAMP

ASSEMBLY - nozzle

4шт.

17

A58695

CLAMP

SPACER - nozzle clamp

4шт.

18

A58960

TEE,1/2" - 25 NPT x 1/2" - 25 NPT x 9/16" - 24 NPT

TEE - injector nozzle and leak-off lines

4шт.

19

A58962

GROMMET,9.14mm ID x 12.82mm OD x 5.28mm Thk

- tee

4шт.

20

A58961

NUT

- tee

4шт.

22

A58965

TUBE

- fuel leak-off, 4-5/8" (117.5 mm) long

2шт.

23

A58964

TUBE

- fuel leak-off, 5-5.8" (142.9 mm) long)

1шт.

24

222-102

SLEEVE,1/4" Tube

8шт.

25

87017024

TUBE NUT,1/2"-24

NUT - (for 1/4" tube)

8шт.

26

A58963

TUBE

- fuel leak-off (No. 1, Serial Range: nozzle-pump)

1шт.

27

A28098

VALVE

ASSEMBLY - check (one way valve), Includes: Ref.#28 & 29

1шт.

28

222-102

SLEEVE,1/4" Tube

1шт.

29

87017024

TUBE NUT,1/2"-24

NUT - (for 1/4" tube)

1шт.
