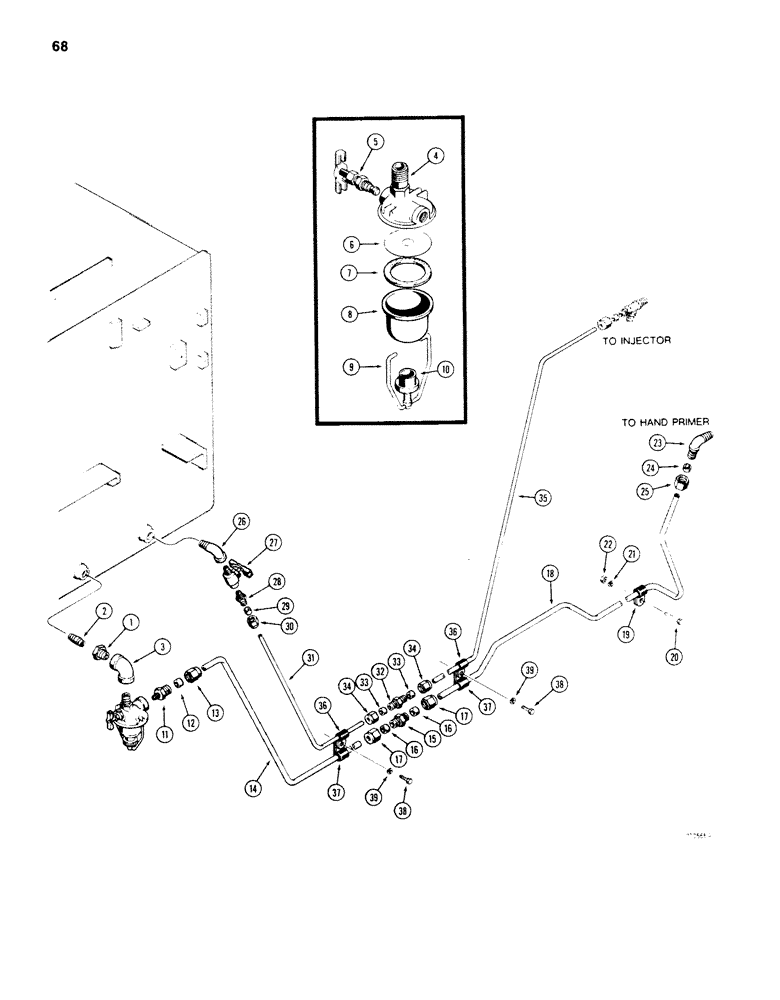

Запчасти Case 850B (068) - FUEL LINES (02) - FUEL SYSTEM

1

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

- 3/8" x 1/4" NPT

1шт.

2

221-131

PIPE,Nipple, 1/4" NPT x 1"

NIPPLE - 1" x 1/4" NPT

1шт.

3

221-376

ELBOW,90 Degree, 3/8" NPT

- 90 degree, female

1шт.

A30049

STRAINER ELEMENT

STRAINER ASSEMBLY - fuel, Includes: Ref.#4 - 10

1шт.

4

A11214

HEAD

COVER - strainer

1шт.

5

A11205

VALVE

SHUTOFF VALVE - strainer

1шт.

6

A11211

FILTER SCREEN

SCREEN - strainer

1шт.

7

A11208

GASKET

- bowl

1шт.

8

NLS

NO LONGER SERVICED

- metal, if used

1шт.

8

A11209

BOWL

- glass, if used

1шт.

9

A11212

BAIL

RETAINER ASSEMBLY - bowl

1шт.

10

A11210

ADJUSTER

NUT - retainer assembly

1шт.

222-26

HYD CONNECTOR,5/8"-24 x 1/8" NPTF W/Nut

FITTING - straight compression, Includes: Ref.#11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

12

222-104

SLEEVE,3/8" Tube

- fitting

1шт.

13

222-114

NUT,5/8"-24

NUT - compression

1шт.

14

R35090

FUEL TUBE,0.375" OD x 30.2, 16" L

TUBE - fuel

1шт.

222-5

FITTING,5/8"-24 Flex Tube

- straight, compression, Includes: Ref.#15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

16

222-104

SLEEVE,3/8" Tube

- fitting

2шт.

17

222-114

NUT,5/8"-24

NUT - compression

2шт.

18

R35093

FUEL TUBE,0.375" OD

TUBE - fuel

1шт.

19

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

- tube

1шт.

20

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex head, 5/16" - 18 NC x 1-1/4"

1шт.

21

92-5

LOCK WASHER,5/16"

1шт.

22

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

1шт.

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

- 90 degree, compression, Includes: Ref.#23 - 25

1шт.

23

NSS

NOT SOLD SEPARAT

BODY - elbow

1шт.

24

222-104

SLEEVE,3/8" Tube

- elbow

1шт.

25

222-114

NUT,5/8"-24

NUT - compression

1шт.

26

217-21

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

STREET ELBOW - 90 degree

1шт.

27

217-94

SHUT-OFF VALVE

SHUTOFF VALVE - at fuel tank

1шт.

222-23

FITTING,1/2"-24 x 1/4" NPTF w/Nut

- straight, compression, Includes: Ref.#28 - 30

1шт.

28

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

29

222-104

SLEEVE,3/8" Tube

- fitting

1шт.

30

222-114

NUT,5/8"-24

NUT - compression

1шт.

31

R35091

FUEL TUBE,0.25" OD x 14.2, 11.1" L

TUBE - fuel

1шт.

222-3

FITTING,1/2"-24 Flex Tube

- straight, compression, Includes: Ref.#32 - 34

1шт.

32

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

33

222-102

SLEEVE,1/4" Tube

2шт.

34

87017024

TUBE NUT,1/2"-24

NUT - compression

2шт.

35

R35092

FUEL TUBE,0.25" OD x 29.2, 24.89" L

TUBE - fuel

1шт.

36

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- P - style

2шт.

37

49852

PTO SHAFT

- P-style

2шт.

38

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

2шт.

39

92-5

LOCK WASHER,5/16"

2шт.
