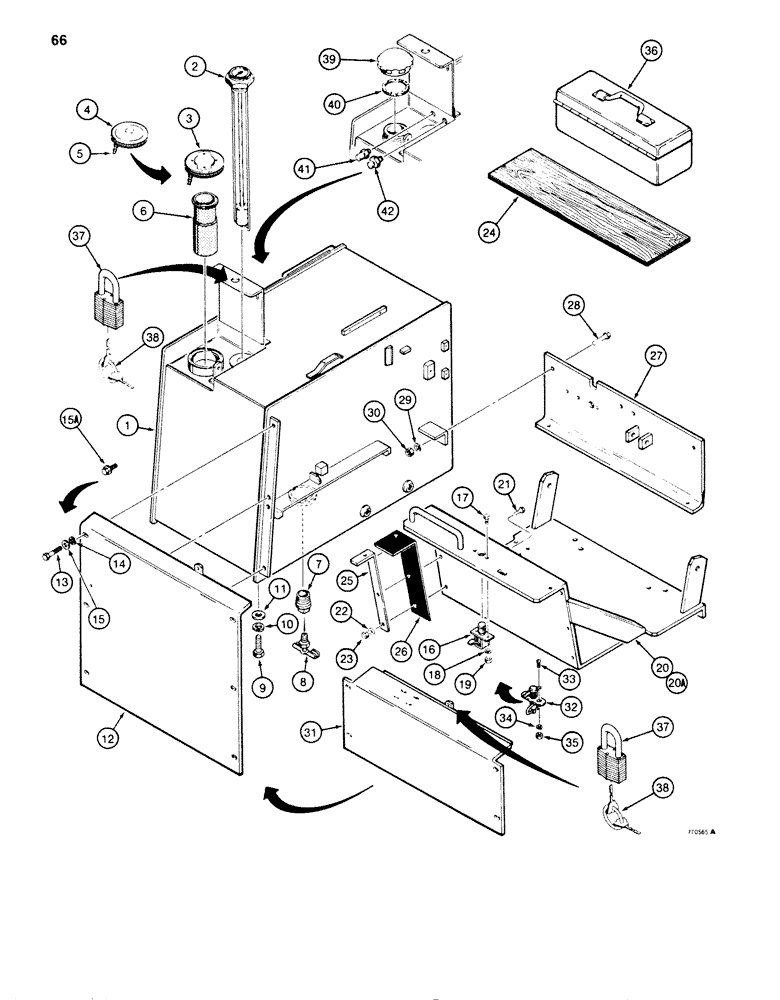

Запчасти Case 850B (066) - FUEL TANK, COVERS, AND TOOL BOX (02) - FUEL SYSTEM

1

R39374

FUEL TANK

- tractor

1шт.

2

R28475

FUEL GAUGE

GAUGE - fuel tank

1шт.

3

R39338

CUP

CAP - fuel tank, no longer used, service with R43900 cap an R43902 chain

1шт.

4

R43900

CAP

- fuel tank

1шт.

5

R43902

CHAIN (CE)

CHAIN - fuel tank cap

1шт.

6

R39339

STRAINER ELEMENT

STRAINER - fuel tank

1шт.

7

R27578

PLUG

DRAIN PLUG - fuel tank

1шт.

8

217-81

VALVE

- drain

1шт.

9

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

4шт.

10

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

11

195-41

WASHER,5/8"

- flat, 5/8"

4шт.

12

COVER - rear, models without backhoe

1шт.

13

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

No longer used, service with flange head bolts only Hex, 3/8"-16 x 1", G5, Full Thd

4-6шт.

14

92-6

LOCK WASHER,3/8"

no longer used 3/8"

4-6шт.

15

195-25

WASHER,3/8"

- flat, no longer used 3/8"

4-6шт.

15a

121-333

BOLT - flange head, 3/8" - 16 NC x 3/4", Teflon coated

4-6шт.

16

R25164

FASTENER

LATCH - used with R34793 seat support

1шт.

17

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

18

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

19

25-104

NUT,1/4"-20, G5

2шт.

20

R34793

PLATE ASSY.

SUPPORT - seat mounting, uses R25164 latch, for pad, see Fig. 382

1шт.

20a

R45330

PLATE ASSY.

SUPPORT - seat mounting, uses L102515 latch

1шт.

21

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

8шт.

22

195-18

WASHER,1/4"

- flat, 1/4"

8шт.

23

131-650

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC

8шт.

24

NSS

NOT SOLD SEPARAT

BOARD - support, tool box (Replaces R35975)

1шт.

25

R37106

STRIP - seat support

2шт.

26

R36637

BAFFLE

INSULATOR - rubber strip, seat

2шт.

27

R34598

PLATE - heel

1шт.

28

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

6шт.

29

92-8

LOCK WASHER,1/2"

6шт.

30

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

31

R36837

COVER - rear, backhoe models

1шт.

32

L102515

LATCH

- used with R45330 seat support

1шт.

33

182-125

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

MACHINE SCREW - slotted, no. 10-24 NC x 1/2"

2шт.

34

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

35

129-7

NUT,Hex, #10 - 24

- hex, no. 10-24 NC

2шт.

36

R29693

BOX, TOOL

TOOL BOX - tractor

1шт.

37

D93753

PADLOCK

- fuel cap and tool box, includes keys, if used., Includes: Ref.#38

2шт.

38

R29555

KEY

- for Master padlock only

2шт.

38

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

39

D31747

COVER

CAP - fuel, Serial Range: -7076850

1шт.

40

D34975

GASKET

- cap, Serial Range: -7076850

1шт.

41

D33028

VALVE

- air outlet, Serial Range: -7076850

1шт.

42

D33027

BREATHER

VALVE - air inlet, Serial Range: -7076850

1шт.

FUEL TANK COVER NUMBER IS R33355.

1шт.
