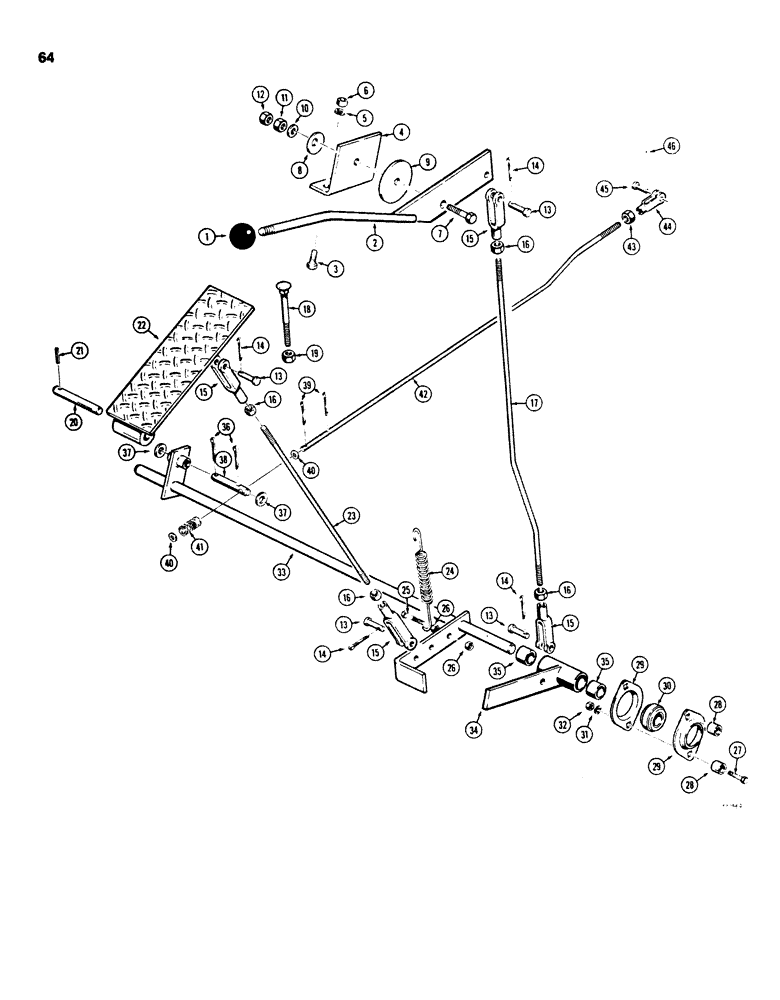

Запчасти Case 850B (064) - THROTTLE CONTROL LINKAGE (01) - ENGINE

1

D49996

KNOB

- control lever

1шт.

2

R26931

LEVER

CONTROL LEVER - hand throttle

1шт.

3

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

4

R26944

SUPPORT

BRACKET - mounting, control lever

1шт.

5

92-8

LOCK WASHER,1/2"

2шт.

6

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

1шт.

7

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

8

R14771

WASHER

BELLEVILLE SPRING - control lever

1шт.

9

R15071

DISC

FRICTION DISC - control lever

1шт.

10

95-8

WASHER,1/2"

flat 1/2"

1шт.

11

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

1шт.

12

25-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2"-13 NC

1шт.

13

141-53

CLEVIS PIN,5/16" x .940"

plated 5/16" x .940"

4шт.

14

132-26

COTTER PIN

PIN, Split (Cotter), 3/32" x 3/4"

4шт.

15

213-3

ADJUSTABLE CLEVIS,5/16"-24

CLEVIS - adjustable

4шт.

16

25-115

NUT,5/16"-24, G5

- hex, 5/16"-24 NC

4шт.

17

R34807

ROD

- connecting

1шт.

18

111-503

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G2

- 1/2" - 13 NC x 4"

1шт.

19

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

1шт.

20

R17364

SHAFT

- pedal

1шт.

21

135-737

GROOVED PIN,5/32" x 1", Type E

ROLL PIN - 5/32" x 1"

1шт.

22

R26937

PEDAL

- foot throttle

1шт.

23

R32621

ROD

- connecting, foot pedal

1шт.

24

R36912

SPRING

- return

1шт.

25

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

2шт.

26

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

27

13-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"-20 x 1 1/2", G5

4шт.

28

D34162

SPACER

- flange

4шт.

29

F13526

FLANGED BEARING

FLANGE - ball bearing

4шт.

30

R25295

BALL BEARING,0.627" ID x 1.575" OD x 1.095"

- shaft

2шт.

31

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

32

25-104

NUT,1/4"-20, G5

4шт.

33

R34870

JACKSHAFT

SHAFT - throttle control

1шт.

34

R36934

TRACK SHOE

LEVER - connecting, Includes: Ref.#35

1шт.

35

R31144

BUSHING

- lever

2шт.

36

132-26

COTTER PIN

- Split (Cotter), 3/32" x 3/4"

2шт.

37

195-33

WASHER,1/2"

- flat, 1/2"

2шт.

38

D47686

SHAFT

PIN- throttle control shaft to accelerator rod

1шт.

39

136-154

HAIR PIN COTTER,Int, 7/64" x .072"

COTTER PIN - hair, 7/32" x 1-1/8", plated

2шт.

40

195-18

WASHER,1/4"

- flat, 1/4"

2шт.

41

F62245

SPRING

- accelerator rod

1шт.

42

R32626

ROD

- connecting, accelerator

1шт.

43

25-114

NUT,1/4"-28, G5

- hex, 1/4" - 28 NF

1шт.

44

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS - adjustable

1шт.

45

141-52

CLEVIS PIN,1/4" x .770"

- 1/4" x 3/4", plated

1шт.

46

136-154

HAIR PIN COTTER,Int, 7/64" x .072"

COTTER PIN - hair, 7/32" x 1-1/8", plated

1шт.
