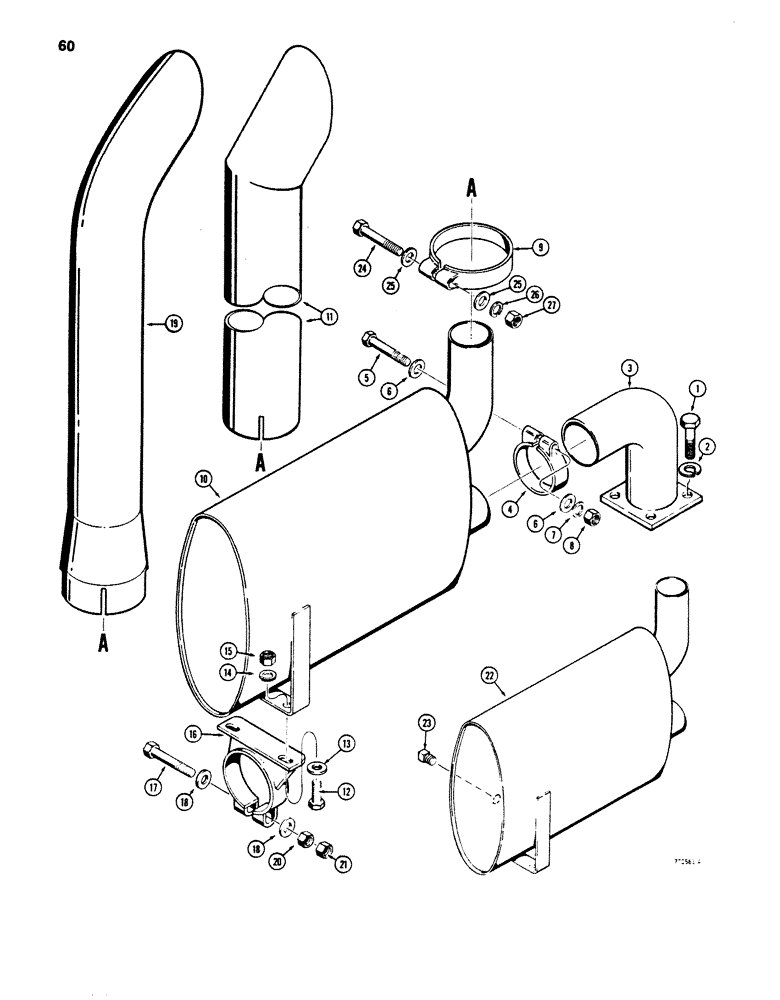

Запчасти Case 850B (060) - MUFFLER, USED ON MODELS WITHOUT TURBOCHARGER (01) - ENGINE

1

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

2

92-6

LOCK WASHER,3/8"

4шт.

3

R32786

TUBE,6.20" L

- exhaust

1шт.

4

R27691

CLAMP

- exhaust tube

1шт.

5

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- hex head, 3/8" - 16 NC x 3-1/4"

1шт.

6

195-25

WASHER,3/8"

- flat, 3/8"

2шт.

7

92-6

LOCK WASHER,3/8"

1шт.

8

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

9

R27699

CLAMP,114.3mm

- exhaust pipe

1шт.

10

R27575

MUFFLER

- standard

1шт.

11

R27696

MUFFLER

EXHAUST PIPE - no longer used, service with R46273 exhaust pipe

1шт.

EXHAUST PIPE - NO LONGER USED

1шт.

SERVICE WITH R46274 EXHAUST PIPE.

1шт.

12

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

13

195-25

WASHER,3/8"

- flat, 3/8"

2шт.

14

92-6

LOCK WASHER,3/8"

2шт.

15

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

16

R34211

CLAMP

- mounting, muffler

1шт.

17

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex head, 3/8" - 16 NC x 3-1/2"

1шт.

18

195-25

WASHER,3/8"

- flat, 3/8"

2шт.

19

R46274

PIPE, EXHAUST SYSTEM

EXHAUST PIPE - muffler (Replaces R46273)

1шт.

20

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

21

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex, jam, 3/8" - 16 NC

1шт.

22

R38899

MUFFLER

- spark arresting, Includes: Ref.#23

1шт.

23

NH772441

PLUG,Sq Hd, 3/8" NPTF, Brass

- square head, 1/2" NPT, brass

1шт.

24

113-2272

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

1шт.

25

195-129

WASHER,3/8"

- flat, , plated 3/8"

2шт.

26

192-46

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

27

129-770

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, plated

1шт.
