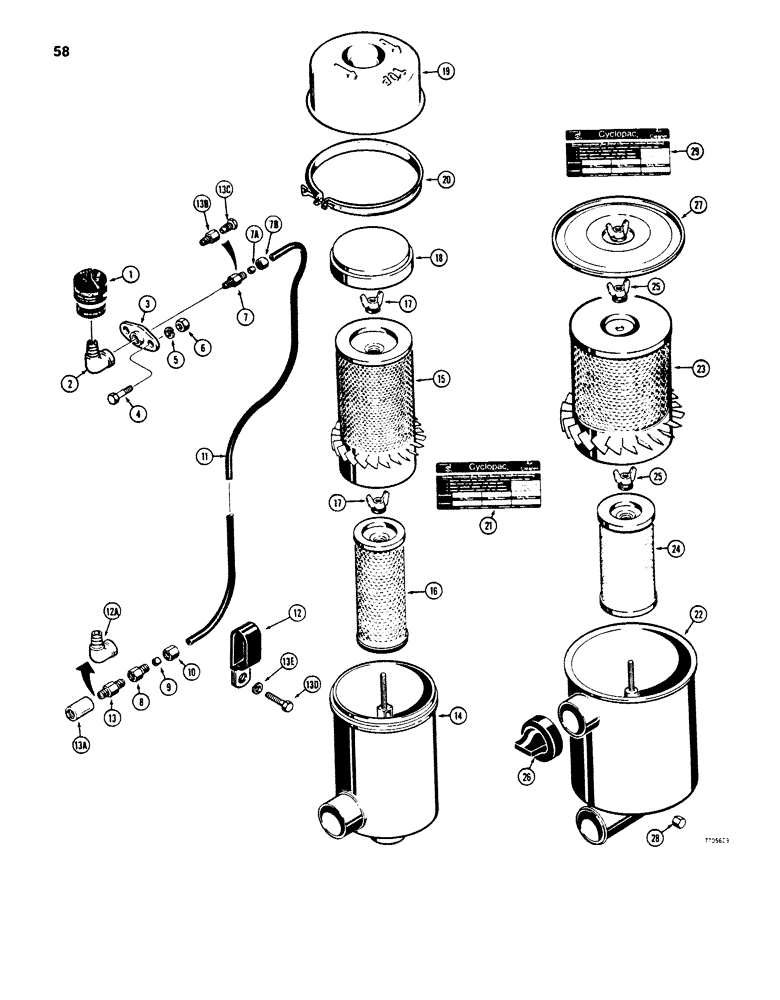

Запчасти Case 850B (058) - AIR RESTRICTION INDICATOR AND AIR CLEANERS, AIR RESTRICTION INDICATOR (01) - ENGINE

1

A59568

INDICATOR

RESTRICTION INDICATOR - air

1шт.

2

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

Street 90º, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

1шт.

3

L10235

FLANGE

- restriction indicator

1шт.

4

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

5

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

6

25-104

NUT,1/4"-20, G5

2шт.

D35816

CONNECTOR, ELEC

CONNECTOR - straight, production part, for service order 222-400, see Ref.#s13B &13C., Includes: Ref.#s7 - 7B

1шт.

7

NSS

NOT SOLD SEPARAT

BODY - connector

1шт.

7a

D37176

SLEEVE

- connector

1шт.

7b

D37362

TUBE NUT

- compression

1шт.

D35091

PIPE FITTING

CONNECTOR - straight, Includes: Ref.#8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

BODY - connector

1шт.

9

D37176

SLEEVE

- connector

1шт.

10

D37362

TUBE NUT

- compression

1шт.

11

D36946

TUBE

- nylon, used on models with turbocharger

1шт.

11

D35090

TUBE

- nylon, used on models without turbocharger

1шт.

12

S86530

CLAMP

- tube

1шт.

12a

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

used on models with turbocharger 90º, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

1шт.

13

D36264

FITTING

CONNECTOR - special, filter, used on models without turbocharger

1шт.

13a

221-335

COUPLING,Pipe, 1/8" NPT

- , if used Pipe, 1/8" NPT

1шт.

222-400

HYD CONNECTOR,1/8" NPT x 5/16"-24

CONNECTOR - straight, service replacement for D35816, see Ref.# 7 - 7B., Includes: Ref.#s13B & 13C

1шт.

13b

NSS

NOT SOLD SEPARAT

BODY - connector

1шт.

13c

222-500

TUBE NUT,5/16" - 24 NPT

NUT AND SLEEVE - connector

1шт.

13d

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

13e

92-5

LOCK WASHER,5/16"

1шт.

R38924

CLEANER ASSY.

AIR CLEANER ASSEMBLY - used on models without turbocharger, Includes: Ref.#s14 - 21

1шт.

14

NSS

NOT SOLD SEPARAT

BODY - air cleaner. R38924 models without turbocharger

1шт.

15

D80480

FILTER, ELEMENT

ELEMENT - outer, R38924 air cleaner models without turbocharger

1шт.

ON 850B ONLY REPLACE WITH P/N A40866. NOTE D80480 HAS A BEAD OF GLUE ON I.D. TO PROHIBIT PLEAT SEPARATION.

1шт.

16

D78336

FILTER

ELEMENT - inner, R38924 air cleaner models without turbocharger

1шт.

17

D78354

WING NUT

WING NUT AND WASHER - elements, R38924 air cleaner models without turbocharger

2шт.

18

D37979

BAFFLE

-R38924 air cleaner models without turbocharger

10шт.

19

D78355

CUP

COVER - R38924 air cleaner models without turbocharger

1шт.

20

R15731

CLAMP

- cover to body, R38924 air cleaner models without turbocharger

1шт.

21

D78356

DECAL - R38924 air cleaner models without turbocharger

1шт.

R40177

AIR CLEANER ASSEMBLY - used on models with turbocharger, Includes: Ref.#s22 - 29

1шт.

22

NSS

NOT SOLD SEPARAT

BODY - R40177 air cleaner models with turbocharger

1шт.

23

D78326

FILTER, ELEMENT

ELEMENT - outer, R40177 air cleaner models with turbocharger

1шт.

24

D78325

FILTER, ELEMENT

ELEMENT - inner, R40177 air cleaner models with turbocharger

1шт.

25

D78357

NUT

WING NUT AND WASHER - elements, R40177 air cleaner models with turbocharger

2шт.

26

L30414

VALVE

DUST CUP - R40177 air cleaner models with turbocharger

1шт.

27

N6881

COVER

- R40177 air cleaner models with turbocharger

1шт.

28

R21180

CAP

- hex, R40177 air cleaner models with turbocharger

1шт.

29

D78359

DECAL - R40177 air cleaner models with turbocharger

1шт.
