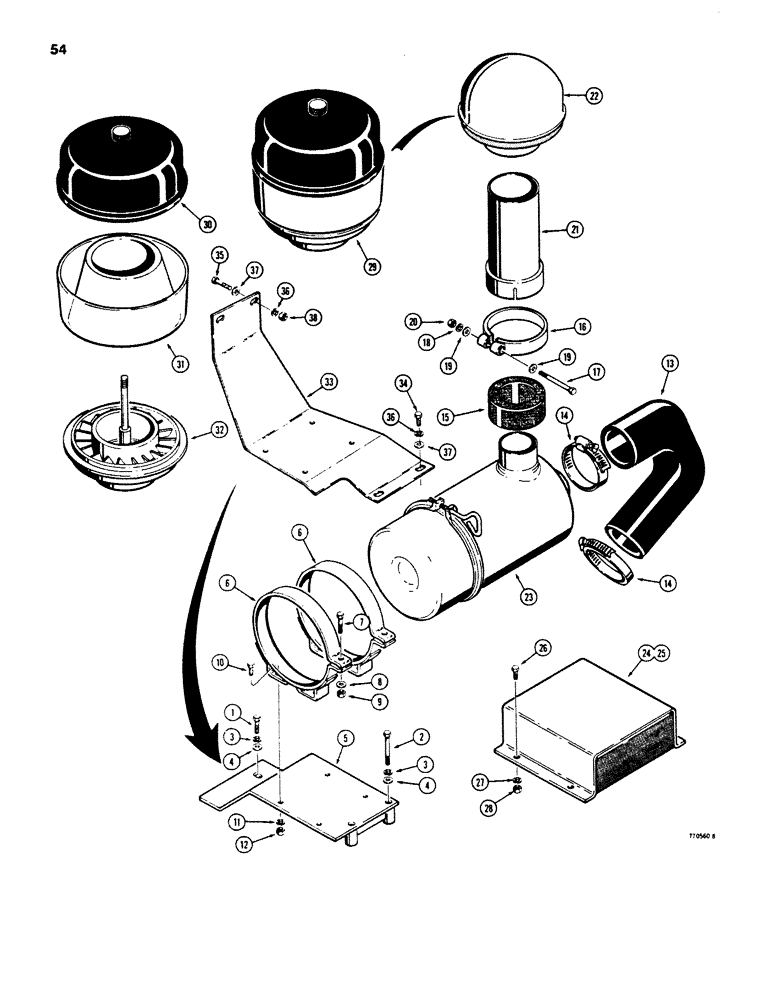

Запчасти Case 850B (054) - AIR CLEANER MOUNTING, MODELS WITHOUT TURBOCHARGER (01) - ENGINE

1

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

2

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex head, 3/8" - 16 NC x 2-1/2"

2шт.

3

92-6

LOCK WASHER,3/8"

3шт.

4

195-25

WASHER,3/8"

- flat 3/8"

3шт.

5

R32514

SCREW

BRACKET - air cleaner, used before tractor sn 7077101

1шт.

6

R24049

BAND

CLAMP - mounting, air cleaner, Includes: Ref.#7 - 9

2шт.

7

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex head, 5/16" -18 NC x 1-1/2"

1шт.

8

195-21

WASHER,5/16"

- flat, 5/16"

1шт.

9

232-4115

LOCK NUT,5/16"-18, GC

NUT - hex, self locking, 5/16" - 18 NC

1шт.

10

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

11

92-5

LOCK WASHER,5/16"

4шт.

12

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

4шт.

13

R32516

FITTING

HOSE - air cleaner

1шт.

14

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - adjustable, air cleaner hose

2шт.

15

R40117

PAD

- mounting, air cleaner inlet

1шт.

16

R27271

CLAMP

- inlet

1шт.

17

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- hex head, 3/8" -16 NC x 3-1/4"

1шт.

18

92-6

LOCK WASHER,3/8"

1шт.

19

195-25

WASHER,3/8"

- flat, 3/8"

2шт.

20

25-106

NUT,3/8"-16, G5

- hex, 3/8" -16 NC

1шт.

21

R36598

TUBE

- inlet, if used

1шт.

22

W13501

CAP

- inlet, if used

1шт.

23

R38924

CLEANER ASSY.

AIR CLEANER - parts list Fig. 58

1шт.

24

R33439

COVER

ASSEMBLY - air intake, noise reduction, includes pad, for pad see Fig. 384, if used. Includes: Ref.#s30 - 32

1шт.

25

R33437

COVER

- air intake, without pad

1шт.

26

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

27

92-6

LOCK WASHER,3/8"

4шт.

28

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

29

A43616

FILTER

PRECLEANER - air cleaner, Includes: Ref.#s30 - 32

1шт.

30

A42465

COVER

- precleaner

1шт.

31

A42467

HOUSING

BOWL - precleaner

1шт.

32

NSS

NOT SOLD SEPARAT

BASE - precleaner

1шт.

33

R41041

BRACKET - air cleaner, used on tractor sn 7077101 and after

1шт.

34

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

35

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

36

195-25

WASHER,3/8"

- lock, 3/8"

4шт.

37

195-25

WASHER,3/8"

- flat, 3/8"

4шт.

38

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.
