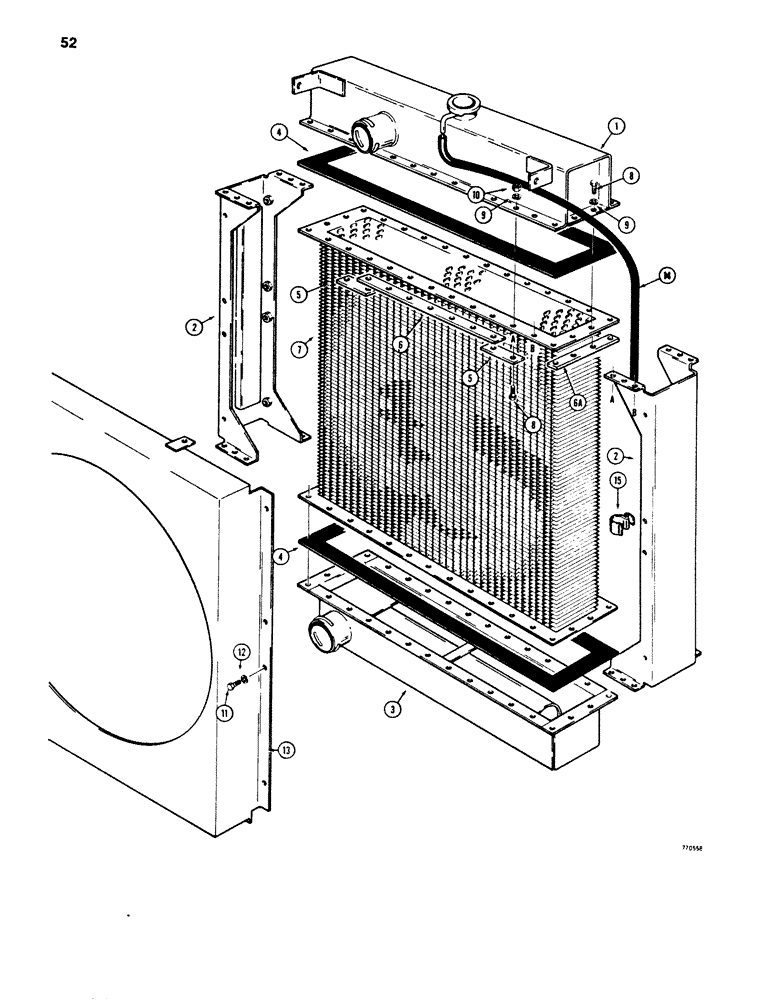

Запчасти Case 850B (052) - RADIATOR, R36354 RADIATOR (01) - ENGINE

R36354

RADIATOR

- General Thermodynamics, Includes: Ref.#s1 - 15

1шт.

1

D78372

TANK

- top

1шт.

2

D78374

PANEL - sides

2шт.

3

D78373

TANK

- bottom

1шт.

4

D78375

GASKET

-, Serial Range: tanks-core

2шт.

5

D80440

PLATE - reinforcement, 2 holes

8шт.

6

D78377

PLATE - reinforcement, 7 holes

4шт.

6a

D78376

PLATE - reinforcement, 4 holes

4шт.

7

D78378

CORE

- radiator

1шт.

8

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

60шт.

9

92-5

LOCK WASHER,5/16"

60шт.

10

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

44шт.

11

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

8шт.

12

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

13

D78371

GUARD

COVER - radiator

1шт.

14

L35004

FLEXIBLE HOSE

HOSE, 0.31" ID x 57", Drain

1шт.

15

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

CLIP - hose retaining, ground cable to converter housing cover, CLIP - ground cable to converter housing cover

2шт.

R34623

RADIATOR

- Perfex, not shown, service parts list not available

1шт.
