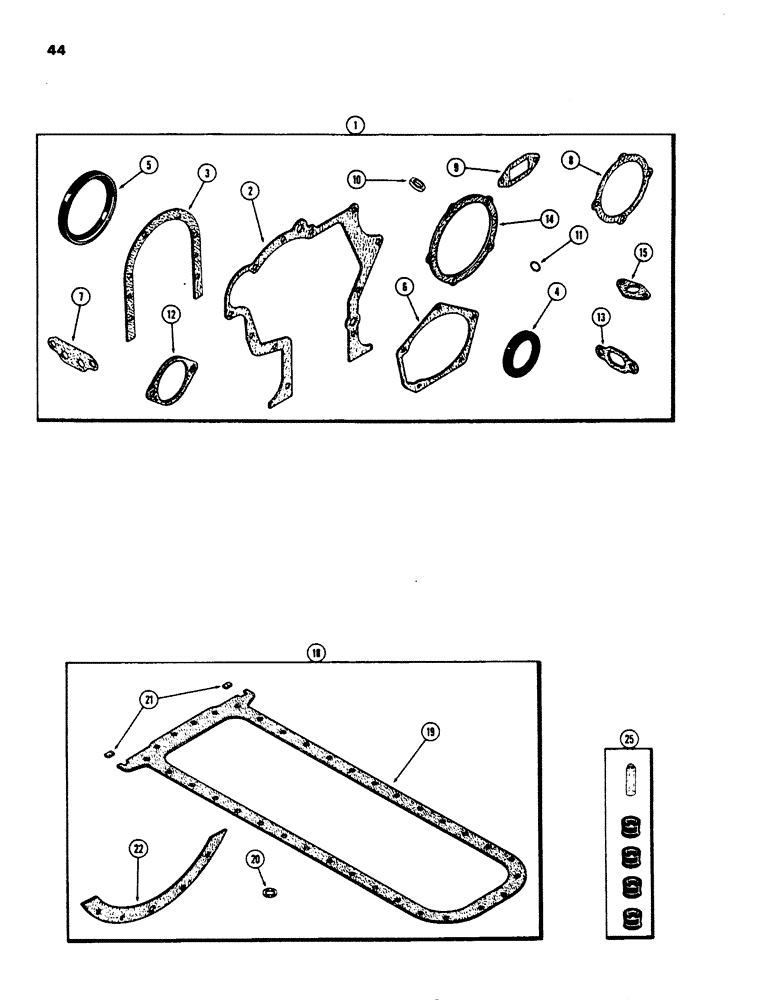

Запчасти Case 850B (044) - ENGINE GASKET KITS, 336BD AND 336BDT DIESEL ENGINES CYLINDER BLOCK KIT (01) - ENGINE

1

A44075

GASKET KIT

- cylinder block, Includes: Ref.#2 - 15

1шт.

2

A58612

GASKET

- timing gear cover

1шт.

3

A32830

GASKET

- rear seal retainer

1шт.

4

A62049

OIL SEAL

- oil, crankshaft, front 2-5/8 x 3-5/8 x 1/2"

1шт.

5

A62050

OIL SEAL

- oil, crankshaft, rear 4-3/4 x 5-3/4 x 1/2"

1шт.

6

A58615

GASKET

- fuel pump cover

1шт.

7

A58756

OIL PAN GASKET SET

- oil filter base

1шт.

8

A58646

GASKET

- water, Serial Range: pump-body

1шт.

9

A58649

GASKET

- water pump, Serial Range: body-block

1шт.

10

A58613

SEALING WASHER

GASKET - timing window plug

1шт.

11

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- oil filter base (Not used this application)

3шт.

12

A58617

GASKET

- (Not used this applicaiton)

1шт.

13

A58670

GASKET

- (Not used this applicaiton)

1шт.

14

A76656

GASKET

- (Not used this application)

1шт.

15

A58680

OIL PAN GASKET SET

- (Not used this application)

1шт.

18

A43005

GASKET KIT

- oil pan, Includes: Ref.#19 - 22

1шт.

19

A62400

OIL PAN GASKET SET

- oil pan kit

1шт.

20

A27968

RING

- drain plug (Copper), oil pan kit

1шт.

20

A58606

GASKET - drain plug 3/4 x 1 x 1/16" (nylon) (Not used this application), oil pan kit

1шт.

21

A62402

GASKET

- (Not used this application), oil pan kit

2шт.

22

A57966

GASKET

- (Not used this applicaiton), oil pan kit

1шт.

25

M20614

SEAL KIT

SEAL KIT - valves (Includes 4 seals and installation sleeve), oil pan

1шт.
