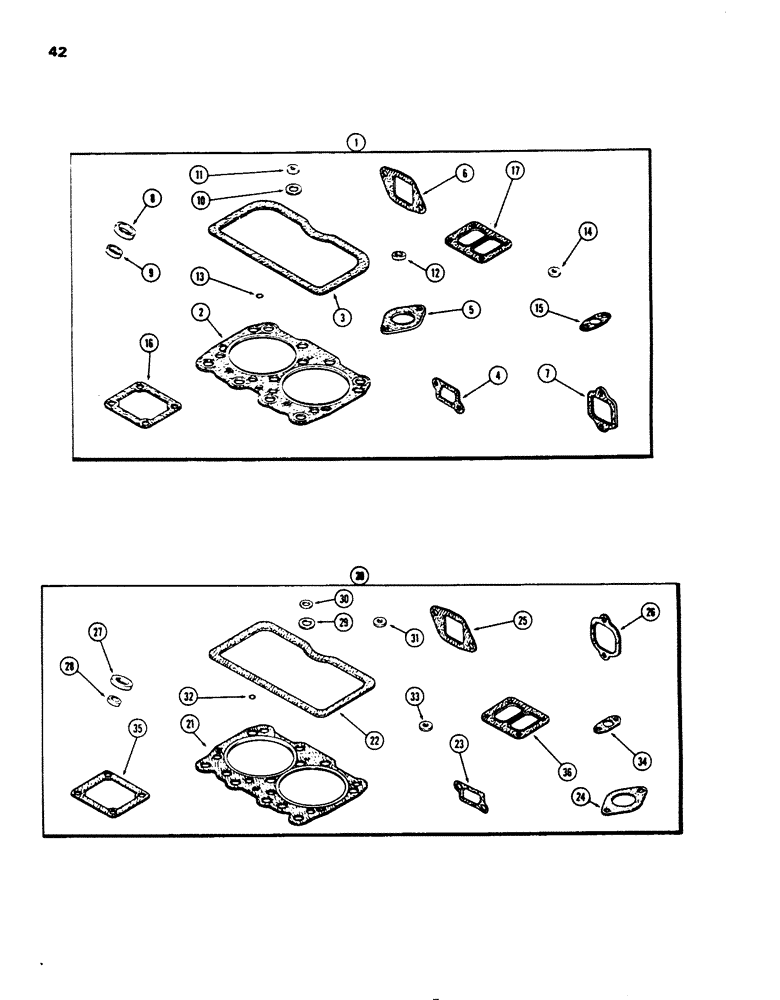

Запчасти Case 850B (042) - ENG. GASKET KITS, 336BD & 336BDT DIESEL ENG.,VALVE GRIND KIT,USED W/5.189" TO 5.194 FIRE DIA. SLEEVE (01) - ENGINE

1

A46367

KIT

GASKET KIT - valve grind (See Note), Includes: Ref.#2 - 17

1шт.

2

A138397

CYLINDER HEAD GASKET

cylinder head

2шт.

3

A65734

CYLINDER HEAD GASKET

cylinder head cover

2шт.

4

A58637

MANIFOLD GASKET

water manifold

2шт.

5

G46907

GASKET

thermostat housing

1шт.

6

A58662

MANIFOLD GASKET

intake manifold

4шт.

7

A58895

GASKET

exhaust manifold (Metal faced) (338BDT)

4шт.

7

A58666

MANIFOLD GASKET

exhaust manifold (Asbestos faced) (336BD)

4шт.

8

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

injector nozzle body

4шт.

9

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

injector nozzle carbon stop

4шт.

10

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

breather tube, lower

2шт.

11

A34133

GASKET

breather tube, upper

2шт.

12

A23684

GASKET

cover stubs

4шт.

13

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

rocker shaft oil tube

2шт.

14

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

valve stem

8шт.

15

A58892

GASKET,1.59mm Thk

turbocharger oil drain tube

1шт.

16

A58910

GASKET

turbocharger air intake elbow

1шт.

17

A58899

GASKET,0.45mm Thk

turbocharger

2шт.

20

A44086

GASKET

KIT - valve grind, used with 5.095" to 5.097" fire dam diameter sleeve, Includes: Ref.#21 - 36

1шт.

21

A142481

GASKET

cylinder head, valve grind kit used with 5.095" to 5.097" fire dam diameter sleeve

2шт.

22

A65734

CYLINDER HEAD GASKET

cylinder head cover, valve grind kit used with 5.095" to 5.097" fire dam diameter sleeve

2шт.

23

A58637

MANIFOLD GASKET

water manifold, valve grind kit used with 5.095" to 5.097" fire dam diameter sleeve

2шт.

24

G46907

GASKET

thermostat housing, valve grind kit used with 5.095" to 5.097" fire dam diameter sleeve

1шт.

25

A58662

MANIFOLD GASKET

intake manifold, valve grind kit used with 5.095" to 5.097" fire dam diameter sleeve

4шт.

26

A58895

GASKET

exhaust manifold (Metal faced) (336BDT), valve grind kit used with 5.095" to 5.097" fire dam diameter sleeve

4шт.

26

A58666

MANIFOLD GASKET

exhaust manifold (Asbestos faced) (336BD), valve grind kit used with 5.095" to 5.097" fire dam diameter sleeve

4шт.

27

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

injector nozzle body, valve grind kit used with 5.095" to 5.097" fire dam diameter sleeve

4шт.

28

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

injector nozzle carbon stop, valve grind kit used with 5.095" to 5.097" fire dam diameter sleeve

4шт.

29

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

breather tube, lower, valve grind kit used with 5.095" to 5.097" fire dam diameter sleeve

2шт.

30

A34133

GASKET

breather tube, upper, valve grind kit used with 5.095" to 5.097" fire dam diameter sleeve

2шт.

31

A23684

GASKET

cover studs, valve grind kit used with 5.095" to 5.097" fire dam diameter sleeve

4шт.

32

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

rocker shaft oil tube, valve grind kit used with 5.095" to 5.097" fire dam diameter sleeve

2шт.

33

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

valve stem, valve grind kit used with 5.095" to 5.097" fire dam diameter sleeve

8шт.

34

A58892

GASKET,1.59mm Thk

turbocharger oil drain tube (Not Used), valve grind kit used with 5.095" to 5.097" fire dam diameter sleeve

1шт.

35

A58910

GASKET

turbocharger air intake elbow (Not Used), valve grind kit used with 5.095" to 5.097" fire dam diameter sleeve

1шт.

36

A58899

GASKET,0.45mm Thk

turbocharger (Not Used), valve grind kit used with 5.095" to 5.097" fire dam diameter sleeve

2шт.
