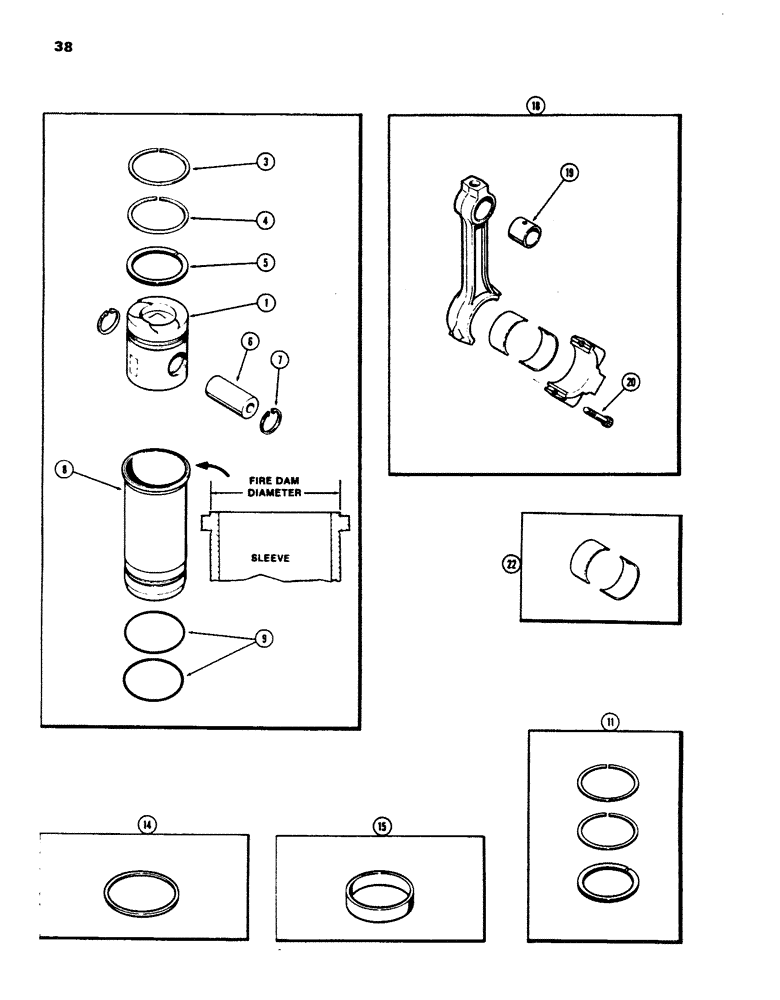

Запчасти Case 850B (038) - PISTONS AND SLEEVES, WITH 5.092" TO 5.097" FIRE DAM DIAMETER SLEEVE 336BD & 336BDT DIESEL ENGINE (01) - ENGINE

1

A66531

PISTON

- cylinder

4шт.

3

NSS

NOT SOLD SEPARAT

RING - compression (1st groove) (Order Ref.#11)

4шт.

4

NSS

NOT SOLD SEPARAT

RING - compression (2nd groove) (Order Ref.#11)

4шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control (3rd groove) (Order Ref.#11)

4шт.

6

A43095

PIN

- piston

4шт.

7

D27833

SNAP RING,1.625", Int, #162

RING, Snap, , piston pin 1.625", Int, #162

8шт.

8

A140216

SLEEVE CYLINDER

SLEEVE - cylinders, (With 2 grooves)

4шт.

9

A146616

O-RING,0.103" Thk x 4.487" ID, -157, Cl 7, 75 Duro

- sleeve

8шт.

11

A44060

RING

SET - piston re-ring (Set of 1)

4шт.

14

A148553

SHIM

- sleeve, 0.010" (0.25 mm) (Repairs Only)

1шт.

14

A148554

SHIM

- sleeve, 0.005" (0.127 mm) (Repairs Only)

1шт.

15

A150327

BUSHING,129.06mm ID x 133.49mm OD x 30.15mm L

- sleeve (Repairs Only)

1шт.

A150328

ADHESIVE

LOCTITE - tube (Not Shown)

1шт.

18

A62954

ROD, CONNECTING

ROD ASSEMBLY - connecting, Includes: Ref.#19 & 20

4шт.

AR62954

REMAN-CONNECTING ROD

Remanufactured, CONNECTING ROD, N.A. Only

4шт.

AC62954

CORE-ROD CONNECTING

Return Number, N.A. Only

4шт.

19

A61241

BUSHING,40.75mm ID x 44.56mm OD x 34.54mm L

- piston pin, connecting rod

1шт.

20

A65757

FLANGE BOLT,1/2" - 20 x 2.31"

BOLT - connecting rod bearing cap

2шт.

22

A43173

BEARING LINER

INSERT - connecting rod bearing, (Standard) (Set of 2)

4шт.

22

A43174

BEARING LINER

INSERT - connecting rod bearing, 0.002" (0.051 mm) undersize (Set of 2)

4шт.

22

A43175

BEARING LINER,70.25mm ID x 74.32mm OD x 40.54mm W

INSERT - connecting rod bearing, 0.010" (0.254 mm) undersize (Set of 2)

4шт.

22

A43176

BEARING LINER,70mm ID x 74.32mm OD x 40.54mm W

INSERT - connecting rod bearing, 0.020" (0.508 mm) undersize (Set of 2)

4шт.

22

A43177

BEARING LINER

INSERT - connecting rod bearing, 0.030" (0.762 mm) undersize (Set of 2)

4шт.
