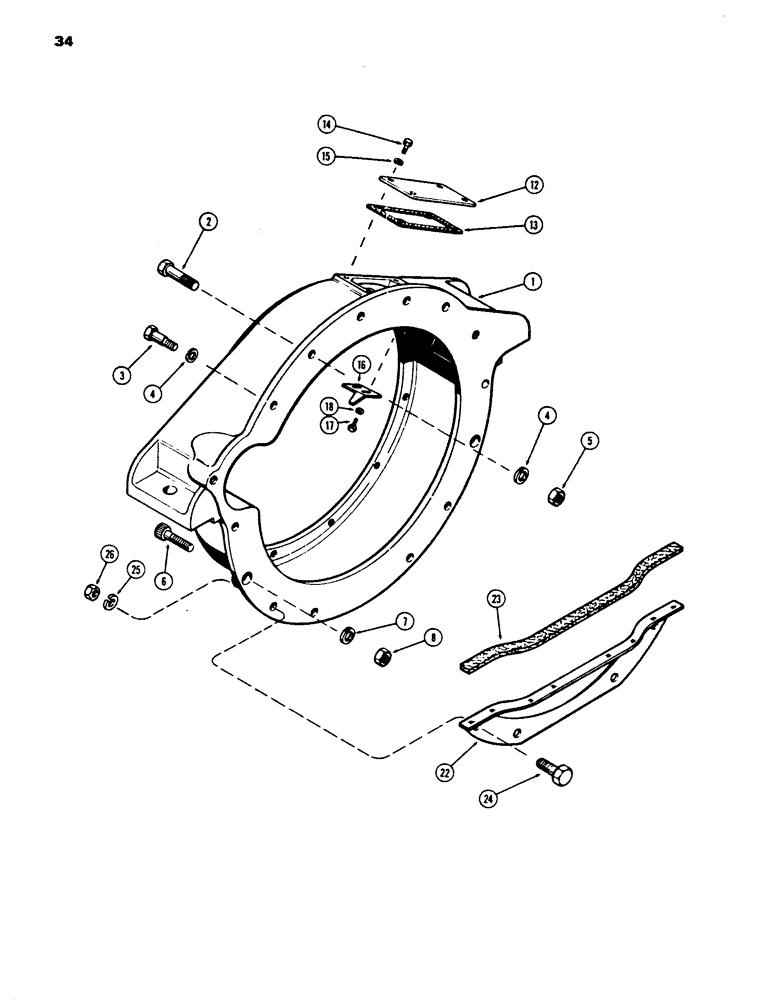

Запчасти Case 850B (034) - FLYWHEEL HOUSING, 336BD AND 336BDT DIESEL ENGINES (01) - ENGINE

1

A137046

HOUSING

- flywheel

1шт.

2

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

- housing (1/2 x 1-3/8" NC hex)

3шт.

2

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- housing (1/2 x 2-1/2" NC hex)

3шт.

3

A149765

STEP BOLT

BOLT - housing, shoulder (1/2" NC x 2-7/16")

1шт.

3

A149764

STEP BOLT

BOLT - housing, shoulder (1/2" NC x 3"

1шт.

4

92-8

LOCK WASHER,1/2"

8шт.

5

25-108

NUT,1/2"-13, G5

- 1/2" NC hex

5шт.

6

166-138

12 PT SCREW,Flg, 3/4" - 10 x 3", Gr 8

BOLT - housing (3/4 x 3" NC, 12 pt. head)

2шт.

7

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

8

129-137

NUT,3/4"-10, G5

2шт.

12

A22584

COVER

PLATE - timing hole

1шт.

13

A22585

GASKET

- timing hole plate

1шт.

14

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

4шт.

15

92-5

LOCK WASHER,5/16"

4шт.

16

A139414

POINT

ER - flywheel timing

1шт.

17

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Pointer Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

18

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

22

A64462

GUARD

SHIELD - dust

1шт.

23

A57144

GASKET

- dust shield

1шт.

24

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

- shield (1/2 x 1-3/8" NC hex)

4шт.

25

92-8

LOCK WASHER,1/2"

4шт.

26

25-108

NUT,1/2"-13, G5

- 1/2" NC hex

4шт.
