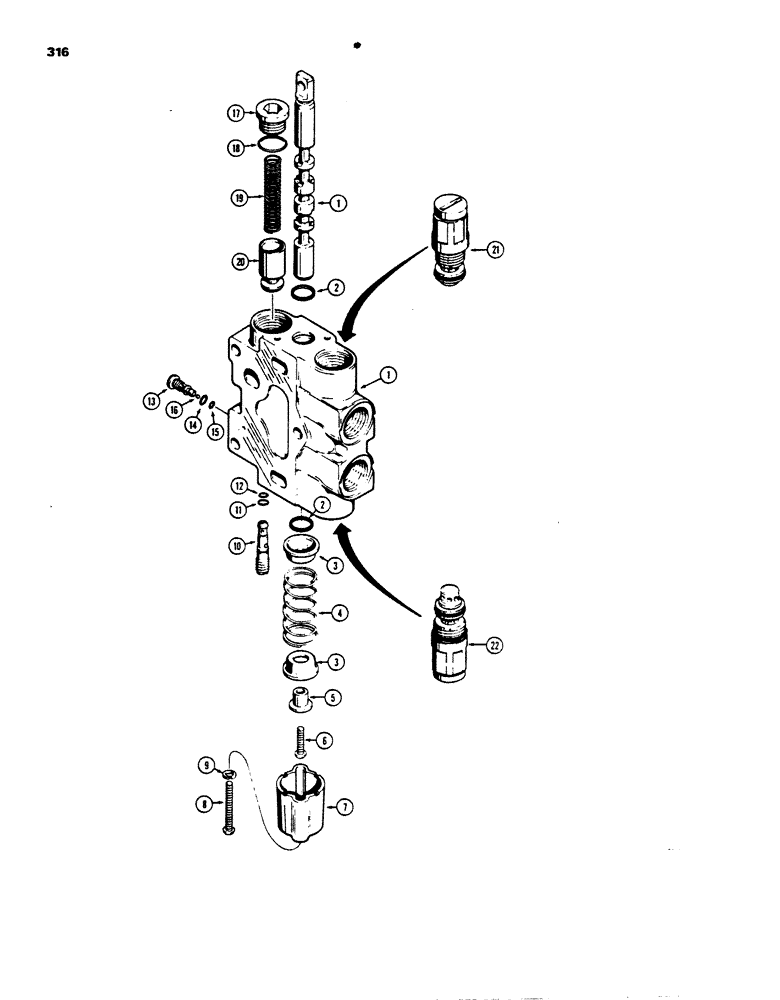

Запчасти Case 850B (316) - D78346 AND D78349 SECTIONS, RIPPER, CLAM BUCKET, OR DUAL PULL BEHIND (07) - HYDRAULIC SYSTEM

D78346

SPARE PART

SECTION - ripper or dual pull behind, identification no. 209

1шт.

D78349

VALVE

SECTION - clam bucket or ripper, identification no. 208, Includes: Ref.#s1 - 22

1шт.

1

NSS

NOT SOLD SEPARAT

BODY AND SPOOL - section

1шт.

2

G46908

O-RING

- spool

2шт.

3

CASR30191

RETAINER

- centering spring

2шт.

4

R30192

SPRING

CENTERING SPRING - spool

1шт.

5

D78452

BUSHING

SPACER - spool

1шт.

6

113-64

PREV TORQUE BOLT,Locking, 1/4"-20 x 1", G5

BOLT, Locking, 1/4"-20 x 1", G5

1шт.

7

D78454

HOUSING

- centering spring

1шт.

8

75-436

SCREW,Rd, 1/4" - 20 x 2 1/4"

MACHINE SCREW - round head slotted, 1/4" - 20 NC x 2-1/4"

2шт.

9

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

R30158

LOCK VALVE

SHUTTLE - primary, Includes: Ref.#s10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

BODY - shuttle

1шт.

R30186

SEAL

KIT - seal, Includes: Ref.#s11 & 12

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - large

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - small

1шт.

R30157

LOCK VALVE

SHUTTLE - secondary, Includes: Ref.#s13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

BODY - shuttle

1шт.

R30185

SEAL KIT

KIT - seal, Includes: Ref.#s14 & 15

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - large

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - small

1шт.

16

211-255

BALL,3/16 Dia

(5 mm), steel, secondary shuttle 3/16 Dia

1шт.

17

9841223

PLUG,1-1/16" - 12 ORB

Load check, Incl. Ref 18 Hex Soc, 1 1/16"-12 ORB

1шт.

18

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- plug

1шт.

19

R30189

SPRING

- load check

1шт.

20

D78440

SPOOL

POPPET - load check

1шт.

21

D78442

VALVE

CIRCUIT RELIEF VALVE - parts list Figure 320, D78346 section uses 2, D78349 section uses 1

1-2шт.

22

D78453

VALVE

- anticavitation and circuit relief, parts list Fig. 320, D78349 section only

1шт.
