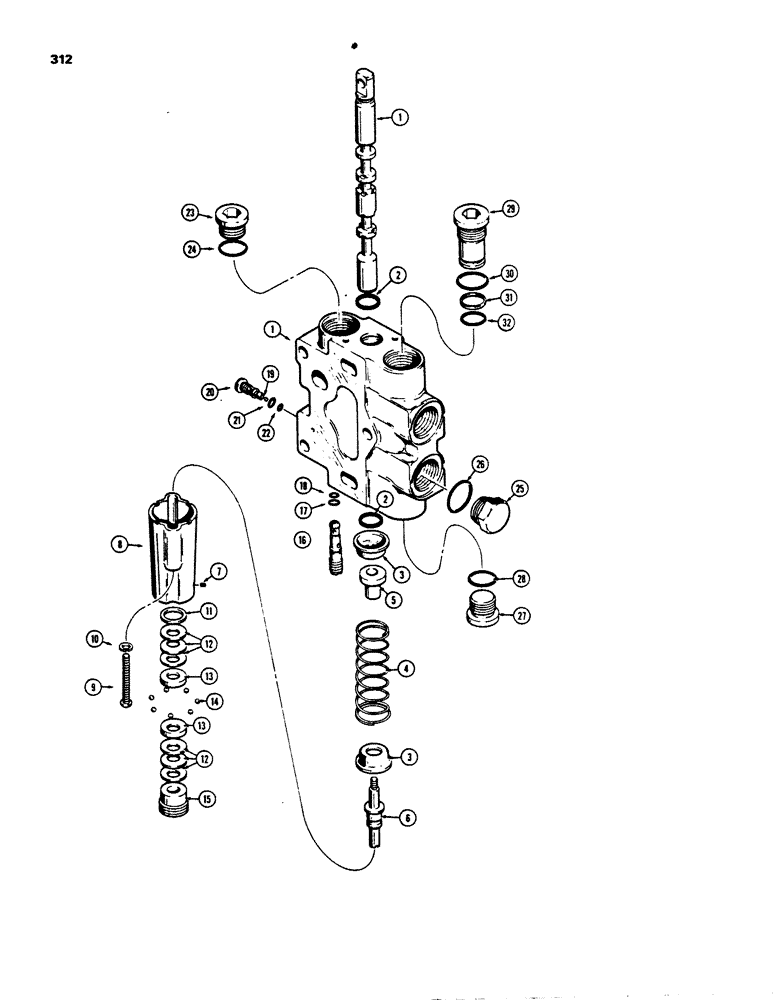

Запчасти Case 850B (312) - D78351 DOZER BACKHOE SECTION (07) - HYDRAULIC SYSTEM

D78351

VALVE BLOCK

SECTION - dozer backhoe, identification no. 213, Includes: Ref.#s1 - 32

1шт.

1

NSS

NOT SOLD SEPARAT

BODY AND SPOOL - section

1шт.

2

G46908

O-RING

- spool

2шт.

3

CASR30191

RETAINER

- centering spring

2шт.

4

R30192

SPRING

CENTERING SPRING - spool

1шт.

5

D78473

SPACER

- detent shaft

1шт.

6

D78474

STUD

SHAFT - detent

1шт.

7

R30195

SCREW

SET SCREW - special, detent housing

1шт.

8

R30190

HOUSING

- detent

1шт.

9

75-436

SCREW,Rd, 1/4" - 20 x 2 1/4"

MACHINE SCREW - round head slotted, 1/4" - 20 NC x 2-1/4"

2шт.

10

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

11

D78438

WASHER

- special

1шт.

12

D78437

WASHER

BELLEVILLE SPRING - detent

6шт.

13

D78439

RETAINER

- balls

2шт.

14

211-257

BALL,1/4" Dia

(6 mm), Steel 1/4" Dia

7шт.

15

R30194

PLUG

- detent

1шт.

R30158

LOCK VALVE

SHUTTLE - primary, Includes: Ref.#s16 - 18

1шт.

16

NSS

NOT SOLD SEPARAT

BODY - shuttle

1шт.

R30186

SEAL

KIT - seal, Includes: Ref.# 17 & 18

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING - large

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING - small

1шт.

19

211-255

BALL,3/16 Dia

(5 mm), steel, secondary shuttle 3/16 Dia

1шт.

R30157

LOCK VALVE

SHUTTLE - secondary, Includes: P/N R30185 and Ref.#s21 & 22

1шт.

20

NSS

NOT SOLD SEPARAT

BODY - shuttle

1шт.

R30185

SEAL KIT

KIT - seal, Includes: Ref.#s21 & 22

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING - large

1шт.

22

NSS

NOT SOLD SEPARAT

O-RING - small

1шт.

23

9841223

PLUG,1-1/16" - 12 ORB

Section body, Incl. Ref 24 Hex Soc, 1 1/16"-12 ORB

1шт.

24

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- plug

1шт.

25

273916

PLUG,Hex, 1-5/16" - 12 ORB

B port, Includes Ref. 26 Hex Hd, 1 5/16"-12 ORB

1шт.

26

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- plug

1шт.

27

218-5213

PLUG,Hex Soc, 1 3/16"-12 ORB

section body, Includes Ref 28 Hex Soc, 1 3/16"-12 ORB

1шт.

28

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- plug

1шт.

29

R30167

PLUG

- section body, Includes: P/N R30174 and Ref.#30 - 32

1шт.

R30174

GASKET KIT

KIT - seal, Includes: 30 & 32

1шт.

30

NSS

NOT SOLD SEPARAT

O-RING - large

1шт.

31

NSS

NOT SOLD SEPARAT

BACKUP RING - small O-ring

1шт.

32

NSS

NOT SOLD SEPARAT

O-RING - small

1шт.
