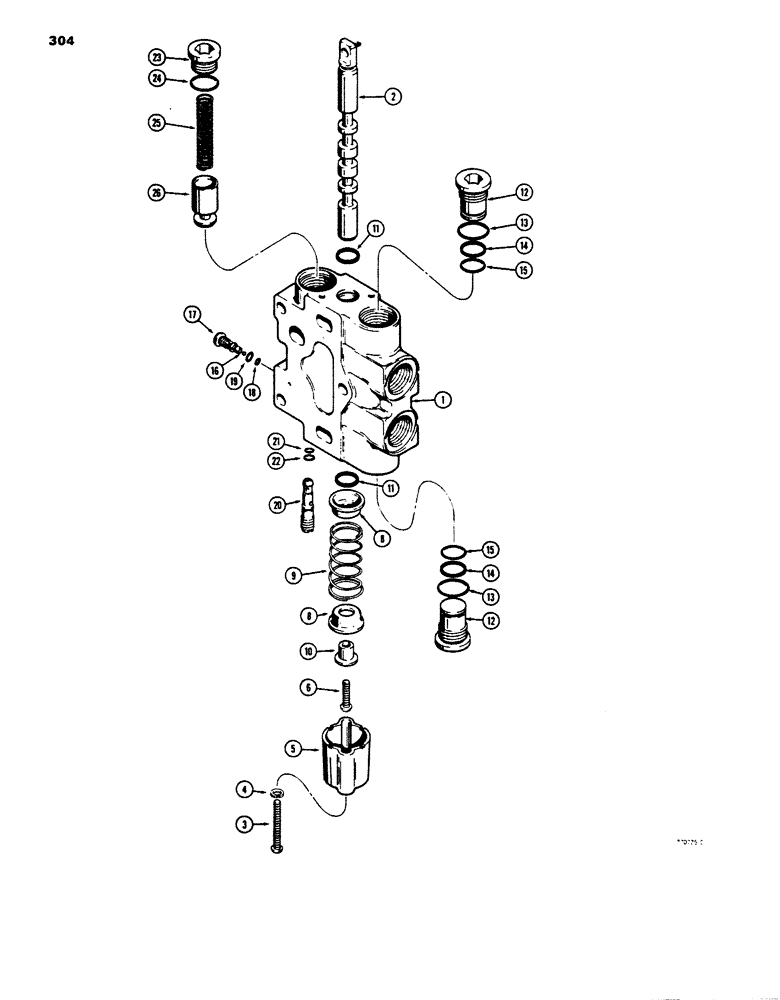

Запчасти Case 850B (304) - R30151 DOZER TILT AND ANGLE SECTION (07) - HYDRAULIC SYSTEM

R30151

HYD VALVE SECTION

SECTION - dozer tilt and angle, identification no. 204, Includes: Ref.#s1 - 26

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - section

1шт.

3

75-436

SCREW,Rd, 1/4" - 20 x 2 1/4"

MACHINE SCREW - round head slotted, 1/4" - 20 NC x 2-1/4"

2шт.

4

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

5

D78454

HOUSING

- centering spring

1шт.

6

75-416

SCREW,Rd, 1/4" - 20 x 1"

MACHINE SCREW - round head slotted, 1/4" - 20 NC x 1"

1шт.

8

CASR30191

RETAINER

- centering spring

2шт.

9

R30192

SPRING

CENTERING SPRING - spool

1шт.

10

D78452

BUSHING

SPACER - spool

1шт.

11

G46908

O-RING

- spool

2шт.

12

R30167

PLUG

- section body, Includes: P/N R30174 and Ref.#s13 - 15

2шт.

R30174

GASKET KIT

KIT - seal, Includes: Ref.#s13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - large

1шт.

14

NSS

NOT SOLD SEPARAT

BACKUP RING - small O-ring

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - small

1шт.

16

211-255

BALL,3/16 Dia

(5 mm), steel, secondary shuttle 3/16 Dia

1шт.

R30157

LOCK VALVE

SHUTTLE - secondary, Includes: Ref.#s17 - 19

1шт.

17

NSS

NOT SOLD SEPARAT

BODY - shuttle

1шт.

R30185

SEAL KIT

KIT - seal, Includes: Ref.#s18 & 19

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING - small

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING - large

1шт.

R30158

LOCK VALVE

SHUTTLE - primary, Includes: Ref.#s20 - 22 and P/N R30186

1шт.

20

NSS

NOT SOLD SEPARAT

BODY - shuttle

1шт.

R30186

SEAL

KIT - seal, Includes: Ref.#s21 & 22

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING - small

1шт.

22

NSS

NOT SOLD SEPARAT

O-RING - large

1шт.

23

9841223

PLUG,1-1/16" - 12 ORB

Load check, Incl. Ref 24 Hex Soc, 1 1/16"-12 ORB

1шт.

24

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- plug

1шт.

25

R30189

SPRING

- load check

1шт.

26

D78440

SPOOL

POPPET - load check

1шт.
