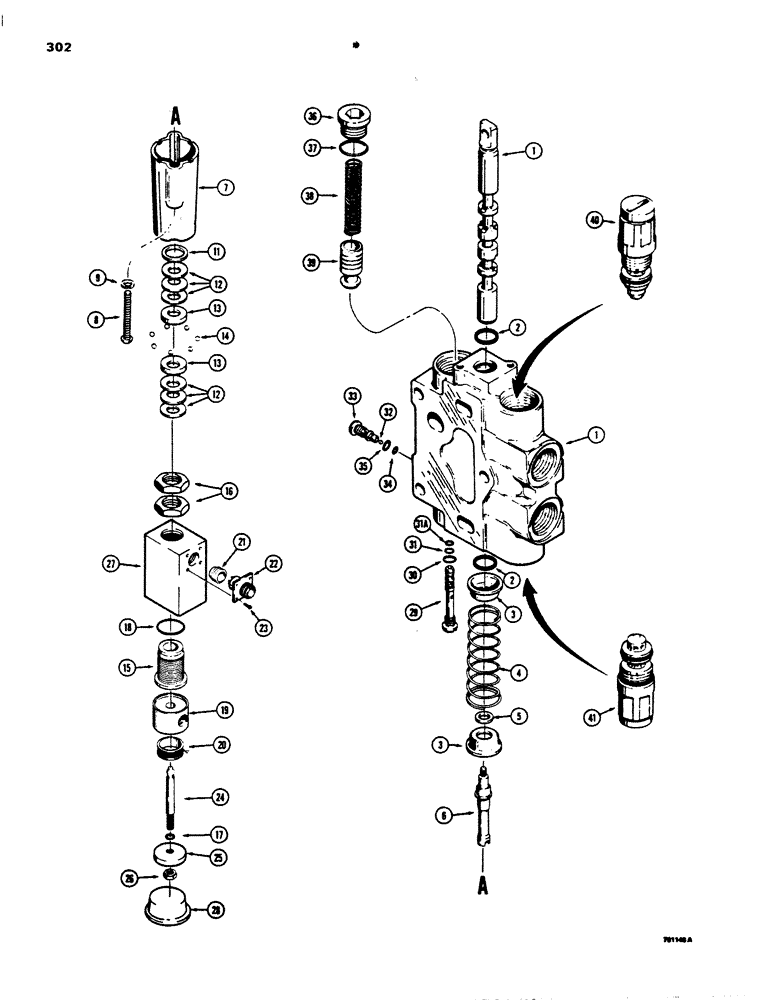

Запчасти Case 850B (302) - D88764 LOADER BUCKET SECTION (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
D88764
LOCK VALVE
SECTION - loader bucket, identification no. 405, Includes: Ref.#s1 - 41
1шт.
1
NSS
NOT SOLD SEPARAT
BODY AND SPOOL - section
1шт.
2
G46908
O-RING
- spool
2шт.
3
R30191
WASHER
- centering spring
2шт.
4
R30192
SPRING
CENTERING SPRING - spool
1шт.
5
R30193
BUSHING
SPACER - detent shaft
1шт.
6
D87086
SHAFT
- detent
1шт.
7
D87092
HOUSING
- detent
1шт.
8
75-436
SCREW,Rd, 1/4" - 20 x 2 1/4"
MACHINE SCREW - round head, slotted, 1/4" - 20 NC x 2-1/4"
2шт.
9
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
11
D78438
WASHER
- special
1шт.
12
D78437
WASHER
BELLEVILLE SPRING - detent
6шт.
13
D78439
RETAINER
- balls
2шт.
14
211-257
BALL,1/4" Dia
(6 mm), Steel 1/4" Dia
7шт.
15
D87091
CONNECTOR, ELEC
CONNECTOR - solenoik
1шт.
16
D87093
JAM NUT
- hex, jam, special
2шт.
17
D87094
BACK-UP RING
- magnetic detent shaft
1шт.
18
C14199
O-RING
- solenoid connector
1шт.
19
D87090
SOLENOID
- magnetic detent
1шт.
20
D78429
SOLENOID
COIL - solenoid
1шт.
21
D78433
PLUG
- socket
1шт.
22
R33408
CONNECTOR, ELEC
SOCKET - magnetic detent
1шт.
23
182-5
SCREW,Sl Pan Hd, #4 - 40 x 3/8"
MACHINE SCREW - slotted, #4-20 NC x 3/8"
4шт.
24
D87089
SHAFT
- magnetic detent
1шт.
25
D87088
WASHER
- magnetic detent shaft
1шт.
26
D87087
JAM NUT
- hex, jam, special
1шт.
27
D87095
HOUSING
- magnetic detent
1шт.
28
353-414
PLUG,Dome, 1.375" Hole, Nylon
1шт.
D87080
VALVE
SHUTTLE ASSEMBLY - primary, Includes: Ref.#s29 - 31A
1шт.
29
NSS
NOT SOLD SEPARAT
BODY - shuttle
1шт.
N6632
SEAL KIT
- seal, Includes: Ref.#s30 - 31A
1шт.
30
NSS
NOT SOLD SEPARAT
O-RING - outer
1шт.
31
NSS
NOT SOLD SEPARAT
O-RING - center
1шт.
31a
NSS
NOT SOLD SEPARAT
O-RING - inner
1шт.
32
211-255
BALL,3/16 Dia
(5 mm), steel, secondary shuttle 3/16 Dia
1шт.
D87081
SCREW
SHUTTLE ASSEMBLY - secondary, Includes: Ref.#s33 - 35
1шт.
33
NSS
NOT SOLD SEPARAT
BODY - shuttle
1шт.
R30185
SEAL KIT
KIT - seal, Includes: Ref.#s34 & 35
1шт.
34
NSS
NOT SOLD SEPARAT
O-RING - small
1шт.
35
NSS
NOT SOLD SEPARAT
O-RING - large
1шт.
36
9841223
PLUG,1-1/16" - 12 ORB
Load check, Incl. Ref 37 Hex Soc, 1 1/16"-12 ORB
1шт.
37
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
- plug
1шт.
38
R30189
SPRING
- load check
1шт.
39
D87082
VALVE POPPET
POPPET - load check
1шт.
40
D78441
VALVE
- anticavitation and circuit relief, parts list Fig. 320
1шт.
41
D78442
VALVE
CIRCUIT RELIEF VALVE - parts list Fig. 320
1шт.
Выбрано товаров: 46
