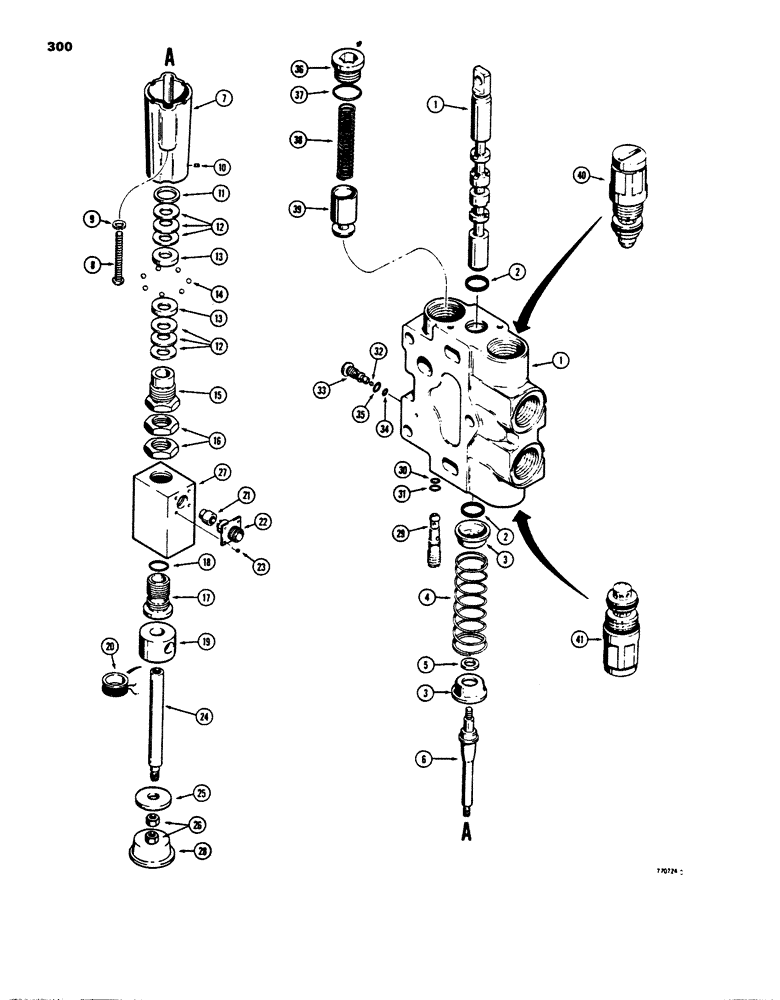

Запчасти Case 850B (300) - D78353 LOADER BUCKET SECTION (07) - HYDRAULIC SYSTEM

D78353

LOCK VALVE

SECTION - loader bucket, identification no. 403, Includes: Ref.#s1 - 41

1шт.

REF: D78353 SECTION - WHEN THIS PART # SUBS OUT TO SECTION D88764 THE FOLLOWING REF.#'S ARE TO BE CHANGED ALSO. REF: #16, 27,18,17,19,20,24,25,26,28 & 6. ALSO NEEDED IS A D87094 RING B/V AND A N14190 PLATE. 22-MAY-96

1шт.

1

NSS

NOT SOLD SEPARAT

BODY AND SPOOL - section

1шт.

2

G46908

O-RING

- spool

2шт.

3

CASR30191

RETAINER

- centering spring

2шт.

4

R30192

SPRING

CENTERING SPRING - spool

1шт.

5

R30193

BUSHING

SPACER - detent shaft

1шт.

6

N7713

SHAFT

- detent (Replaed D78426)

1шт.

7

R30190

HOUSING

- detent

1шт.

8

75-436

SCREW,Rd, 1/4" - 20 x 2 1/4"

MACHINE SCREW - round head, slotted, 1/4" - 20 x 2-1/4"

2шт.

9

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

10

R30195

SCREW

SET SCREW - special

1шт.

11

D78438

WASHER

- special

1шт.

12

D78437

WASHER

BELLEVILLE SPRING - detent

6шт.

13

D78439

RETAINER

- ball

2шт.

14

211-257

BALL,1/4" Dia

(6 mm), Steel 1/4" Dia

7шт.

15

D78436

PLUG

- detent

1шт.

16

D78435

LOCK

NUT - hex, jam, special

2шт.

17

D78431

CONNECTOR, ELEC

CONNECTOR - solenoid

1шт.

18

D32114

O-RING,0.75" ID x 0.875" OD

- connector

1шт.

19

D78430

HOUSING

SOLENOID - magnetic detent

1шт.

20

D78429

SOLENOID

COIL - solenoid

1шт.

Ref. item #20 subs to N14189 which has a lip that protrudes .150" and pushes the whole ass'y.down keeping the retainer item #21 from lining up with the hole. I asked the dlr. to remove the lip so the new part would be the same length as the old. by bb 6/5/96

1шт.

21

D78433

PLUG

- socket

1шт.

22

R33408

CONNECTOR, ELEC

SOCKET - magnetic detent

1шт.

23

182-5

SCREW,Sl Pan Hd, #4 - 40 x 3/8"

MACHINE SCREW - round head slotted, #4-20 NC x 3/8"

4шт.

24

N7714

SHAFT

- magnetic detent (Replaced D78428)

1шт.

25

D78427

PLATE

WASHER - magnetic detent shaft

1шт.

26

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam, 3/8' - 24 NF

2шт.

27

D78434

BLOCK

HOUSING - magnetic detent

1шт.

28

353-414

PLUG,Dome, 1.375" Hole, Nylon

1шт.

R30158

LOCK VALVE

SHUTTLE ASSEMBLY - primary, Includes: Ref.#s29 - 31

1шт.

29

NSS

NOT SOLD SEPARAT

BODY - shuttle

1шт.

R30186

SEAL

KIT - seal, Includes: Ref.#s30 & 31

1шт.

30

NSS

NOT SOLD SEPARAT

O-RING - small

1шт.

31

NSS

NOT SOLD SEPARAT

O-RING - large

1шт.

32

211-255

BALL,3/16 Dia

(5 mm), steel, secondary shuttle 3/16 Dia

1шт.

R30157

LOCK VALVE

SHUTTLE ASSEMBLY - secondary, Includes: Ref.#s33 - 35

1шт.

33

NSS

NOT SOLD SEPARAT

BODY - shuttle

1шт.

R30185

SEAL KIT

KIT - seal, Includes: Ref.#s34 & 35

1шт.

34

NSS

NOT SOLD SEPARAT

O-RING - small

1шт.

35

NSS

NOT SOLD SEPARAT

O-RING - large

1шт.

36

9841223

PLUG,1-1/16" - 12 ORB

Load check, Incl. Ref 37 Hex Soc, 1 1/16"-12 ORB

1шт.

37

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- plug

1шт.

38

R30189

SPRING

- load check

1шт.

39

D78440

SPOOL

POPPET - load check

1шт.

40

D78441

VALVE

- anticavitation and circuit relief, parts list Fig. 320

1шт.

41

D78442

VALVE

CIRCUIT RELIEF VALVE - parts list Figure 320

1шт.
