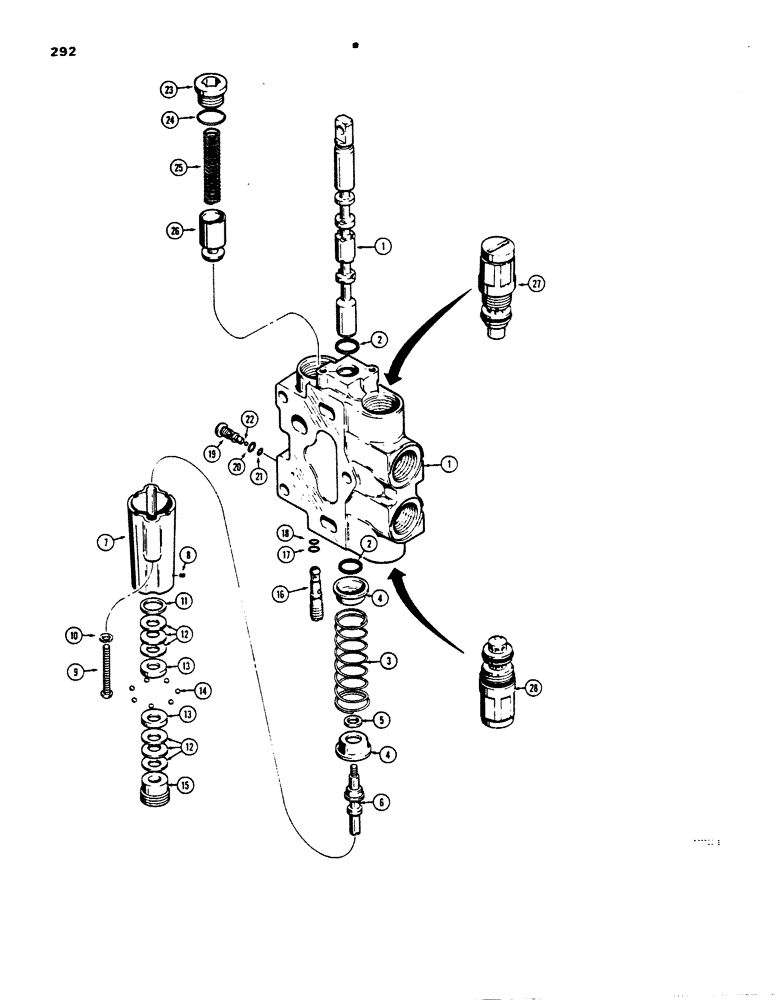

Запчасти Case 850B (292) - D78352 LOADER LIFT SECTION (07) - HYDRAULIC SYSTEM

D78352

VALVE BLOCK

SECTION - loader lift, identification no. 304, Includes: Ref.#s1 - 28

1шт.

1

NSS

NOT SOLD SEPARAT

BODY AND SPOOL - section

1шт.

2

G46908

O-RING

- spool

2шт.

3

R30192

SPRING

CENTERING SPRING - spool

1шт.

4

R30191

WASHER

- centering spring

2шт.

5

R30198

WASHER

SPACER - detent shaft

1шт.

6

D78447

SHAFT

- detent

1шт.

7

R30190

HOUSING

- detent

1шт.

8

R30195

SCREW

SET SCREW - special

1шт.

9

75-436

SCREW,Rd, 1/4" - 20 x 2 1/4"

MACHINE SCREW - round head, slotted, 1/4" - 20 NC x 2-1/4"

2шт.

10

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

11

D78438

WASHER

- special

1шт.

12

D78437

WASHER

BELLEVILLE SPRING - detent

6шт.

13

D78439

RETAINER

- balls

2шт.

14

211-257

BALL,1/4" Dia

(6 mm), Steel 1/4" Dia

7шт.

15

R30194

PLUG

- detent

1шт.

R30158

LOCK VALVE

SHUTTLE - primary, Includes: Ref.#s16 - 18

1шт.

16

NSS

NOT SOLD SEPARAT

BODY - shuttle

1шт.

R30186

SEAL

KIT - seal, Includes: Ref.#s17 & 18

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING - large

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING - small

1шт.

R30157

LOCK VALVE

SHUTTLE - secondary, Includes: Ref.#s19 - 21

1шт.

19

NSS

NOT SOLD SEPARAT

BODY - shuttle

1шт.

R30185

SEAL KIT

KIT - seal, Includes: Ref.#s20 & 21

1шт.

20

NSS

NOT SOLD SEPARAT

O-RING - large

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING - small

1шт.

22

211-255

BALL,3/16 Dia

(5 mm), steel, secondary shuttle 3/16 Dia

1шт.

23

9841223

PLUG,1-1/16" - 12 ORB

Load check, Incl. Ref 24 Hex Soc, 1 1/16"-12 ORB

1шт.

24

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- plug

1шт.

25

R30189

SPRING

- load check

1шт.

26

D78440

SPOOL

POPPET - load check

1шт.

27

D78449

VALVE

- anticavitation, parts list Fig. 322

1шт.

28

D78448

VALVE

CIRCUIT RELIEF VALVE - parts list Fig. 320

1шт.
