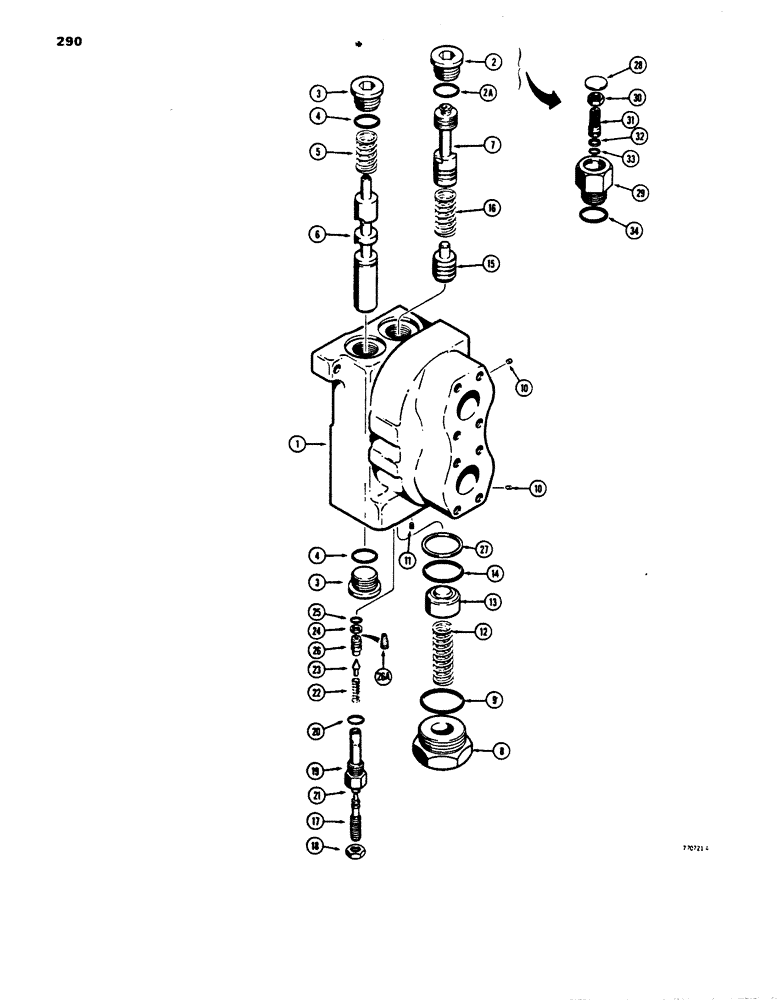

Запчасти Case 850B (290) - D87071 INLET AND OUTLET SECTION (07) - HYDRAULIC SYSTEM

D87071

VALVE

SECTION - loader inlet and outlet, identification no. 106, replaces section with identification no. 105, Includes: Ref.#s1 - 34

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - section

1шт.

2

D78466

PLUG

- hex socket, used without dust cap, no longer used, order D87077 plug assembly and D87075 dust cap, Includes: Ref.#2A

1шт.

2a

218-5000

HYD CONNECTOR,7/16" - 20 Male JIC x 7/8" - 14 Male ORB

O-RING - plug

1шт.

3

9841223

PLUG,1-1/16" - 12 ORB

Incl. Ref 4 Hex Soc, 1 1/16"-12 ORB

2шт.

4

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- plug

1шт.

5

D78464

SPRING

- regeneration spool

1шт.

6

NSS

NOT SOLD SEPARAT

SPOOL - regeneration

1шт.

7

NSS

NOT SOLD SEPARAT

SPOOL - unloading

1шт.

8

D78462

PLUG

- hex head, Includes: Ref.#9

1шт.

9

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

- plug

1шт.

10

D78456

PLUG

RESTRICTOR - flow

2шт.

11

D78455

PLUG

- hex socket

1шт.

12

R30171

SPRING

- piston

1шт.

13

D78461

PISTON ASSY.

POPPET - unloading valve

1шт.

14

G34001

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

- poppet

1шт.

15

NSS

NOT SOLD SEPARAT

PISTON - unloading valve

1шт.

16

D78458

SPRING

- unloading spool

1шт.

N6027

VALVE

RELIEF ASSEMBLY - section, Includes: Ref.#s17 - 26A

1шт.

17

D78467

ADJUSTMENT SCREW,3/8" - 24 x 1.953"

- relief assembly

1шт.

18

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam, 3/8" - 24 NF

1шт.

19

NSS

NOT SOLD SEPARAT

BODY - relief assembly

1шт.

20

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, body, inner

1шт.

21

A51274

O-RING,0.145" ID x 0.285" OD

- body, outer

1шт.

22

D78468

SPRING

- plunger

1шт.

23

D78469

PLUNGER

- relief assembly

1шт.

24

L35305

RING

BACKUP RING - O-ring

1шт.

25

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

- seat

1шт.

26

NSS

NOT SOLD SEPARAT

SEAT - plunger

1шт.

26a

NSS

NOT SOLD SEPARAT

FILTER - relief assembly

1шт.

27

D87079

RING

BACKUP RING - poppet O-ring

1шт.

28

D87075

COVER

CAP - dust

1шт.

D87077

PLUG

ASSEMBLY - used with D87075 dust cap, Includes: Ref.#s29 - 34

1шт.

29

NSS

NOT SOLD SEPARAT

PLUG - section

1шт.

30

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex, jam, 3/8" - 16 NC

1шт.

31

NSS

NOT SOLD SEPARAT

SCREW - special

1шт.

32

D87094

BACK-UP RING

BACKUP RING - screw o-ring

1шт.

33

A138385

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

- screw

1шт.

34

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- plug

1шт.
