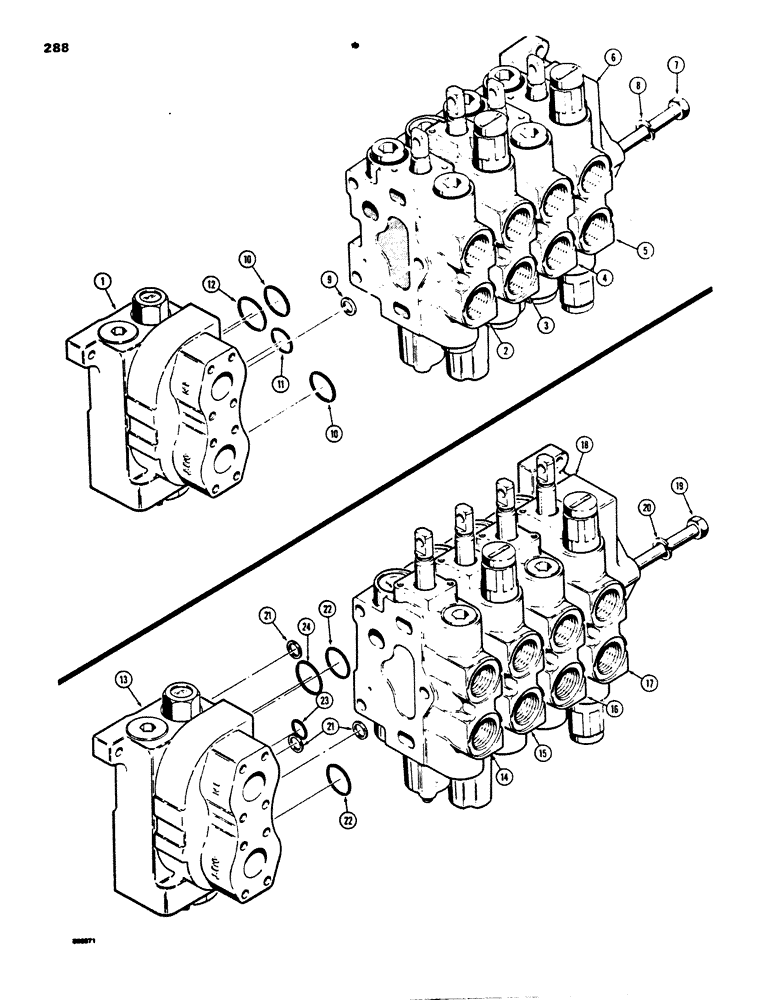

Запчасти Case 850B (288) - R34593 FOUR SPOOL CONTROL VALVE, ANGLE TILT DOZER WITH RIPPER (07) - HYDRAULIC SYSTEM

R34593

VALVE

CONTROL VALVE - angle tilt dozer, Includes: Ref.#s1 - 12

1шт.

1

D87071

VALVE

SECTION - inlet and outlet, identification no. 106, replaces section with identification no.105, parts list Fig. 290

1шт.

2

R30151

HYD VALVE SECTION

SECTION - dozer tilt, identification no. 204, parts list Fig. 304

1шт.

3

R30153

KNIFE SECTION

SECTION - dozer lift, identification no. 302, parts list Fig. 296

1шт.

4

R30151

HYD VALVE SECTION

SECTION - dozer angle, identification no. 204, parts list Fig. 304

1шт.

5

D78346

SPARE PART

SECTION - ripper, identification no. 209, parts list Fig. 316

1шт.

6

R30143

COVER

- end

1шт.

7

D74375

BOLT

- special

3шт.

8

92-7

LOCK WASHER,7/16"

3шт.

9

D77566

SHIM,.0030" Thk

Sections .0030" Thk

5шт.

R37003

SEAL KIT

KIT - seal, Includes: Ref.#s10 -12

5шт.

10

NSS

NOT SOLD SEPARAT

O-RING - 1-5/16" (32 mm) OD

2шт.

11

NSS

NOT SOLD SEPARAT

O-RING - 1" (25 mm) OD

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - 1-1/2" (37 mm) OD

1шт.

R40897

VALVE

CONTROL VALVE - angle tilt dozer with ripper, 4-spool

1шт.

13

D87071

VALVE

SECTION - inlet and outlet, identification no. 106, parts list Fig. 290, R40897 4-spool control valve angle tilt dozer with ripper

1шт.

14

D87073

SEGMENT

SECTION - dozer tilt, identification no. 217, parts list Fig. 306, R40897 4-spool control valve angle with ripper

1шт.

15

D87074

VALVE

SECTION - dozer lift, identification no. 307, parts list Fig. 298, R40897 4-spool control valve angle tilt with ripper

1шт.

16

D87073

SEGMENT

SECTION - dozer angle, identification no. 217, parts list Fig. 306, R40897 4-spool control valve tilt with ripper

1шт.

17

D87078

VALVE

SECTION - ripper, identification no. 215, parts list Fig. 318, R40897 4-spool control valve angle tilt dozer with

1шт.

18

D87072

COVER ASSY

COVER - end, R40897 4-spool control valve angle tilt dozer with ripper

1шт.

19

D74375

BOLT

- special, R40897 4-spool control valve angle tilt dozer with ripper

3шт.

20

92-7

LOCK WASHER,7/16"

R40897 4-spool control valve angle tilt dozer with ripper 7/16"

3шт.

21

D77566

SHIM,.0030" Thk

Sections, R40897 4-spool control valve angle tilt dozer with ripper .0030" Thk

15шт.

R37003

SEAL KIT

KIT - seal, R40897 4-spool control valve angle tilt dozer with ripper, Includes: Ref.#s22 - 24

5шт.

22

NSS

NOT SOLD SEPARAT

O-RING - 1-5/16" (32 mm) OD, R40897 4-spool control valve angle tilt dozer with ripper

2шт.

23

NSS

NOT SOLD SEPARAT

O-RING - 1" (25 mm) OD, R40897 4-spool control valve angle tilt dozer with ripper

1шт.

24

NSS

NOT SOLD SEPARAT

O-RING -1-1/2" (37 mm) OD, R40897 4-spool control valve angle tilt dozer with ripper

1шт.
