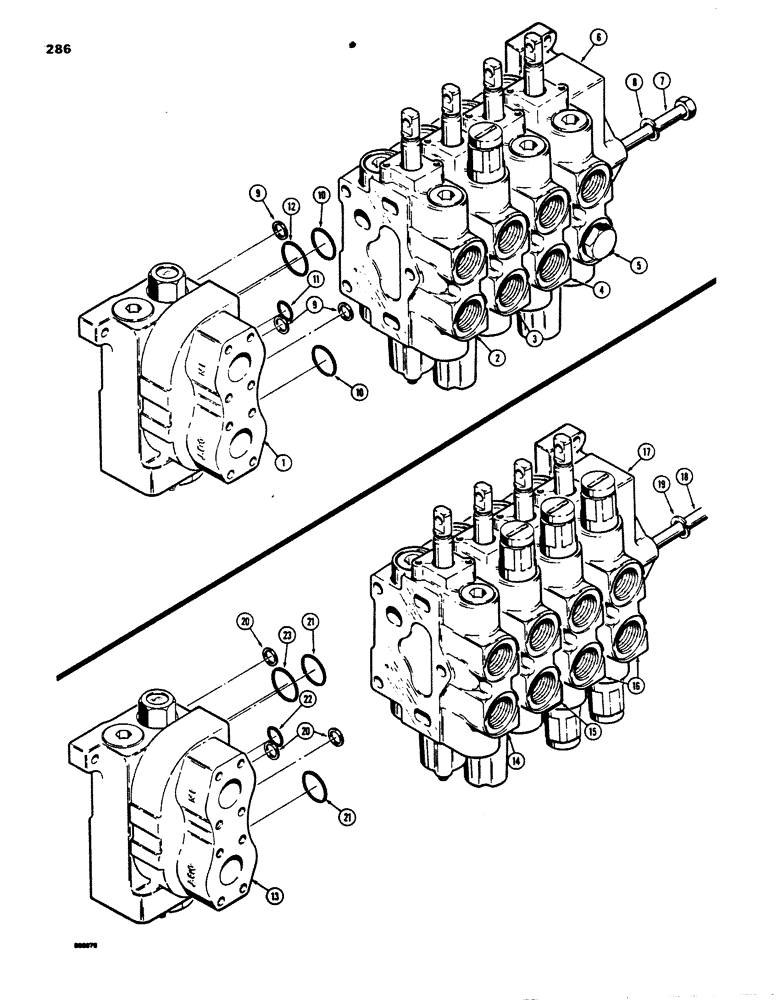

Запчасти Case 850B (286) - R40916 FOUR SPOOL CONTROL VALVE, ANGLE TILT DOZER WITH BACKHOE (07) - HYDRAULIC SYSTEM

R40916

VALVE

CONTROL VALVE - angle tilt dozer, Includes: Ref.#1 - 12

1шт.

1

D87071

VALVE

SECTION - inlet and outlet, identification no. 106, parts list Fig. 290

1шт.

2

D87073

SEGMENT

SECTION - dozer tilt, identification no. 217, parts list Fig. 306

1шт.

3

D87074

VALVE

SECTION - dozer lift, identification no. 307, parts list Fig. 298

1шт.

4

D87073

SEGMENT

SECTION - dozer angle, identification no. 217, parts list Fig. 306

1шт.

5

D87096

VALVE

SECTION - backhoe, identification no. 220, parts list Fig. 314

1шт.

6

D87072

COVER ASSY

COVER - end

1шт.

7

D74375

BOLT

- special

3шт.

8

92-7

LOCK WASHER,7/16"

3шт.

9

D77566

SHIM,.0030" Thk

Sections .0030" Thk

15шт.

R37003

SEAL KIT

KIT - seal, Includes: Ref.#s10 - 12

5шт.

10

NSS

NOT SOLD SEPARAT

O-RING 1-5/16" (32 mm) OD

2шт.

11

NSS

NOT SOLD SEPARAT

O-RING - 1" (25 mm) OD

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - 1-1/2" (37 mm) OD

1шт.

R40895

VALVE

CONTROL VALVE - tilt dozer, 4-spool with dual pull behind, Includes: Ref.#s13 - 23

1шт.

13

D87071

VALVE

SECTION - inlet and outlet, identification no. 106, parts list Fig. 290, R40895 4-spool control valve tilt dozer with dual pull behind

1шт.

14

D87073

SEGMENT

SECTION - dozer tilt, identification no. 217, parts list Fig. 306, R40895 4-spool control valve with dual pull behind

1шт.

15

D87074

VALVE

SECTION - dozer lift, identification no. 307, parts list Fig. 298, R40895 4-spool control valve tilt with dual pull behind

1шт.

16

D87078

VALVE

SECTION - dual pull behind, identification no. 215, parts list Fig. 318, R40895 4-spool control valve tilt dozer with

2шт.

17

D87072

COVER ASSY

COVER - end, R40895 4-spool control valve tilt dozer with dual pull behind

1шт.

18

D74375

BOLT

- special, R40895 4-spool control valve tilt dozer with dual pull behind

3шт.

19

92-7

LOCK WASHER,7/16"

R40895 4-spool control valve tilt dozer with dual pull behind 7/16"

3шт.

20

D77566

SHIM,.0030" Thk

Sections, R40895 4-spool control valve tilt dozer with dual pull behind .0030" Thk

15шт.

R37003

SEAL KIT

KIT - seal, R40895 4-spool control valve tilt dozer with dual pull behind, Includes: Ref.#s21 - 23

5шт.

21

NSS

NOT SOLD SEPARAT

O-RING -1-5/16" (32 mm) OD, R40895 4-spool control valve tilt dozer with dual pull behind

2шт.

22

NSS

NOT SOLD SEPARAT

O-RING - 1" (25 mm) OD, R40895 4-spool control valve tilt dozer with dual pull behind

1шт.

23

NSS

NOT SOLD SEPARAT

O-RING - 1-1/2" (37 MM) OD, R40895 4-spool control valve tilt dozer with dual pull behind

1шт.
