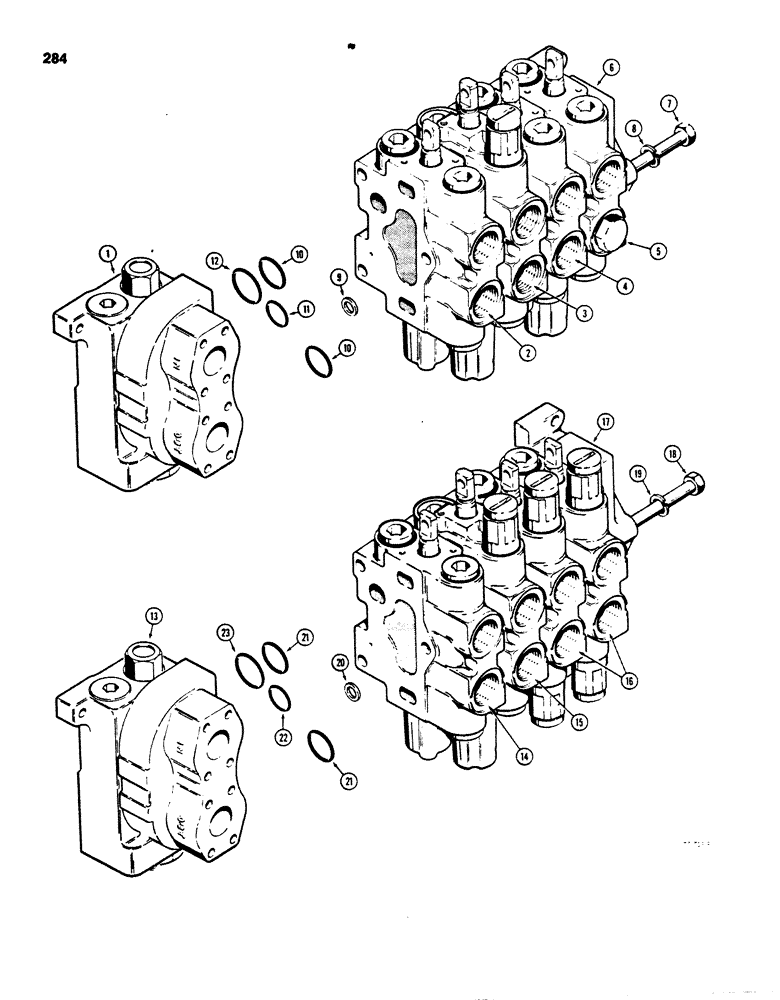

Запчасти Case 850B (284) - R38559 FOUR SPOOL CONTROL VALVE, ANGLE TILT DOZER WITH BACKHOE (07) - HYDRAULIC SYSTEM

R38559

VALVE

CONTROL VALVE - angle tilt dozer, Includes: Ref.#1 - 12

1шт.

1

D87071

VALVE

SECTION - inlet and outlet, identification no, 106, replaces section with identification no.105, parts list Fig. 290

1шт.

2

R30151

HYD VALVE SECTION

SECTION - dozer tilt, identification no. 204, parts list Fig. 304

1шт.

3

R30153

KNIFE SECTION

SECTION - dozer lift, identification no. 302, parts list Fig. 296

1шт.

4

R30151

HYD VALVE SECTION

SECTION - dozer angle, identification no. 204, parts list Fig. 304

1шт.

5

D78351

VALVE BLOCK

SECTION - backhoe, identification no. 213, parts list Fig. 312

1шт.

6

R30143

COVER

- end

1шт.

7

D74375

BOLT

- special

3шт.

8

92-7

LOCK WASHER,7/16"

3шт.

9

D77566

SHIM,.0030" Thk

Sections .0030" Thk

5шт.

R37003

SEAL KIT

KIT - seal, Includes: Ref.#10 - 12

5шт.

10

NSS

NOT SOLD SEPARAT

O-RING - 1-5/16" (32 mm) OD

2шт.

11

NSS

NOT SOLD SEPARAT

O-RING - 1" (25 mm) OD

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING -1-1/2" (37 mm) OD

1шт.

R34591

VALVE

CONTROL VALVE - tilt dozer with dual pull behind, 4 spool, Includes: Ref.#k13

1шт.

13

D87071

VALVE

SECTION - inlet and outlet, identification no. 106, replaces section with identification no.105, parts list Fig. 290, R34591 4-spool control valve tilt dozer with dual pull behind

1шт.

14

R30151

HYD VALVE SECTION

SECTION - dozer tilt, identification no. 204, parts list Fig. 304, R34591 4-spool control valve with dual pull behind

1шт.

15

R30153

KNIFE SECTION

SECTION - dozer lift, identification no. 302, parts list Fig. 296, R34591 4-spool control valve tilt with dual pull behind

1шт.

16

D78346

SPARE PART

SECTION - dual pull behind, identification no. 209, parts list Fig. 316, R34591 4-spool control valve tilt dozer with

2шт.

17

R30143

COVER

- end, R34591 4-spool control valve tilt dozer with dual pull behind

1шт.

18

D74375

BOLT

- special, R34591 4-spool control valve tilt dozer with dual pull behind

3шт.

19

92-7

LOCK WASHER,7/16"

R34591 4-spool control valve tilt dozer with dual pull behind 7/16"

3шт.

20

D77566

SHIM,.0030" Thk

Sections, R34591 4-spool control valve tilt dozer with dual pull behind .0030" Thk

5шт.

R37003

SEAL KIT

KIT - seal, R34591 4-spool control valve tilt dozer with dual pull behind, Includes: Ref.#21 - 23

5шт.

21

NSS

NOT SOLD SEPARAT

O-RING - 1-5/16" ( 32 mm) OD, R34591 4-spool control valve tilt dozer with dual pull behind

2шт.

22

NSS

NOT SOLD SEPARAT

O-RING - 1" (25 mm) OD, R34591 4-spool control valve tilt dozer with dual pull behind

1шт.

23

NSS

NOT SOLD SEPARAT

O-RING - 1-1/2" (37 mm) OD, R34591 4-spool control valve tilt dozer with dual pull behind

1шт.
