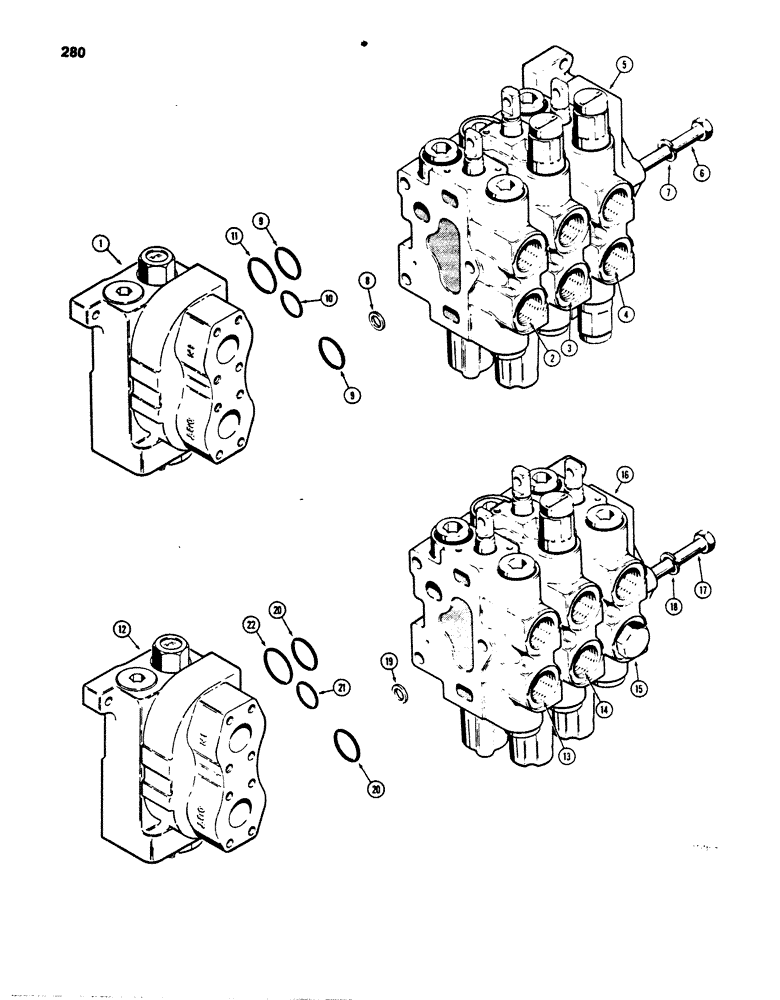

Запчасти Case 850B (280) - R34590 THREE SPOOL CONTROL VALVE, TILT DOZER WITH RIPPER (07) - HYDRAULIC SYSTEM

R34590

VALVE

CONTROL VALVE - tilt dozer, Includes: Ref. 1 - 11

1шт.

1

D87071

VALVE

SECTION - inlet and outlet, identification no. 106, relaces selection with identification no.105, parts list Fig. 290

1шт.

2

R30150

HYD VALVE SECTION

SECTION - dozer tilt, identification no. 204, parts list Fig. 304

1шт.

3

R30153

KNIFE SECTION

SECTION - dozer lift, identification no. 302, parts list Fig. 296

1шт.

4

D78346

SPARE PART

SELECTION - ripper, identification no. 209, parts list Fig. 316

1шт.

5

R30143

COVER

- end

1шт.

6

D74374

BOLT

- special

3шт.

7

92-7

LOCK WASHER,7/16"

3шт.

8

D77566

SHIM,.0030" Thk

Sections .0030" Thk

4шт.

R37003

SEAL KIT

KIT - seal, Includes: Ref.#9 - 11

4шт.

9

NSS

NOT SOLD SEPARAT

O-RING - 1-5/16" (32 mm) OD

2шт.

10

NSS

NOT SOLD SEPARAT

O-RING - 1" (25 mm) OD

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - 1-1/2" (37 mm) OD

1шт.

R38558

VALVE

CONTROL VALVE - tilt dozer with backhoe, 3 spool, Includes: Ref. 12 - 33

1шт.

12

D87071

VALVE

SECTION - inlet and outlet, identification no. 106, replaces section indentification no. 105, parts list Fig. 290, R38558 3-spool control valve tilt dozer with backhoe

1шт.

13

R30151

HYD VALVE SECTION

SECTION - dozer tilt, dentification no. 204, parts list Fig. 304, R38558 3-spool control valve with backhoe

1шт.

14

R30153

KNIFE SECTION

SECTION - dozer lift, indentification no. 302, parts list Fig. 296, R38558 3-spool control valve tilt with backhoe

1шт.

15

D78351

VALVE BLOCK

SECTION - backhoe, identification no. 213, parts list Fig. 312, R38558 3-spool control valve tilt dozer

1шт.

16

R30143

COVER

- end, R38558 3-spool control valve tilt dozer with backhoe

1шт.

17

D74374

BOLT

- special, R38558 3-spool control valve tilt dozer with backhoe

3шт.

18

92-7

LOCK WASHER,7/16"

R38558 3-spool control valve tilt dozer with backhoe 7/16"

3шт.

19

D77566

SHIM,.0030" Thk

Sections, R38558 3-spool control valve tilt dozer with backhoe .0030" Thk

4шт.

R37003

SEAL KIT

KIT - seal, R38558 3-spool control valve tilt dozer with backhoe, Includes: Ref.#20 - 22

4шт.

20

NSS

NOT SOLD SEPARAT

O-RING - 1-5/16" (32 mm) OD, R38558 3-spool control valve tilt dozer with backhoe

2шт.

21

NSS

NOT SOLD SEPARAT

O-RING - 1" (25 mm) OD, R38558 3-spool control valve tilt dozer with backhoe

1шт.

22

NSS

NOT SOLD SEPARAT

O-RING - 1-1/2" (37 mm) OD, R38558 3-spool control valve tilt dozer with backhoe

1шт.
