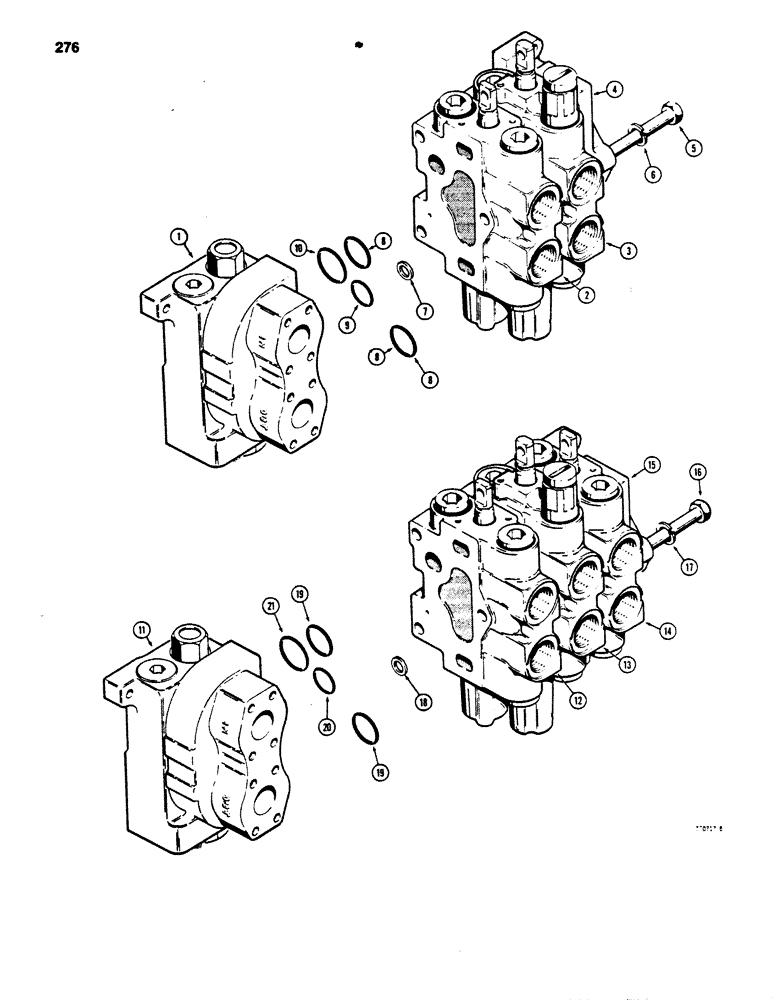

Запчасти Case 850B (276) - R34589 TWO SPOOL CONTROL VALVE, TILT DOZER (07) - HYDRAULIC SYSTEM

R34589

CONTROL VALVE

- tilt dozer, Includes: Ref.#1 - 10

1шт.

1

D87071

VALVE

SECTION - inlet and outlet, identitication no. 106, replaces section with identification no.105, parts list Fig. 290

1шт.

2

R30151

HYD VALVE SECTION

SECTION - dozer tilt, identification no. 204, parts list Fig. 304

1шт.

3

R30153

KNIFE SECTION

SECTION - dozer lift, dentification no. 302, parts list Fig. 296

1шт.

4

R30143

COVER

- end

1шт.

5

D74373

BOLT

- special

3шт.

6

92-7

LOCK WASHER,7/16"

3шт.

7

D77566

SHIM,.0030" Thk

Sections .0030" Thk

3шт.

R37003

SEAL KIT

KIT - seal, Includes: Ref.#8 - 10

3шт.

8

NSS

NOT SOLD SEPARAT

O-RING - 1-5/16" (32 mm) OD

2шт.

9

NSS

NOT SOLD SEPARAT

O-RING - 1" (25 mm) OD

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - 1-1/2" (37 mm) OD

1шт.

R34592

LOCK VALVE

CONTROL VALVE - angle tilt dozer, Includes: Ref.#11 - 21

1шт.

11

D87071

VALVE

SECTION - inlet and outlet, identification no. 106, replaces section with identification no.105, parts list Fig. 290, R34592 3-spool control valve angle tilt dozer

1шт.

12

R30151

HYD VALVE SECTION

SECTION - dozer tilt, dentification no. 204, parts list Fig. 304, R34592 3-spool control valve angle

1шт.

13

R30153

KNIFE SECTION

SECTION - dozer lift, dentification no. 302, parts list Fig. 296, R34592 3-spool control valve angle

1шт.

13

R30153

KNIFE SECTION

SECTION - dozer lift, identification no. 302, parts list Fig. 296, R34592 3-spool control valve angle

1шт.

14

R30151

HYD VALVE SECTION

SECTION - dozer angle, dentification no. 204, parts list Fig. 304, R34592 3-spool control valve tilt

1шт.

15

R30143

COVER

- end, R34592 3-spool control valve angle tilt dozer

1шт.

16

D74374

BOLT

- special, R34592 3-spool control valve angle tilt dozer

3шт.

17

92-7

LOCK WASHER,7/16"

R34592 3-spool control valve angle tilt dozer 7/16"

3шт.

18

D77566

SHIM,.0030" Thk

Sections, R34592 3-spool control valve angle tilt dozer .0030" Thk

4шт.

R37003

SEAL KIT

KIT - seal, R34592 3-spool control valve angle tilt dozer, Includes: Ref.#19 - 21

4шт.

19

NSS

NOT SOLD SEPARAT

O-RING - 1-5/16" (32 mm) OD, R34592 3-spool control valve angle tilt dozer

2шт.

20

NSS

NOT SOLD SEPARAT

O-RING - 1" (25 mm) OD, R34592 3-spool control valve angle tilt dozer

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING - 1-1/2" (37 mm) OD, R34592 3-spool control valve angle tilt dozer

1шт.
