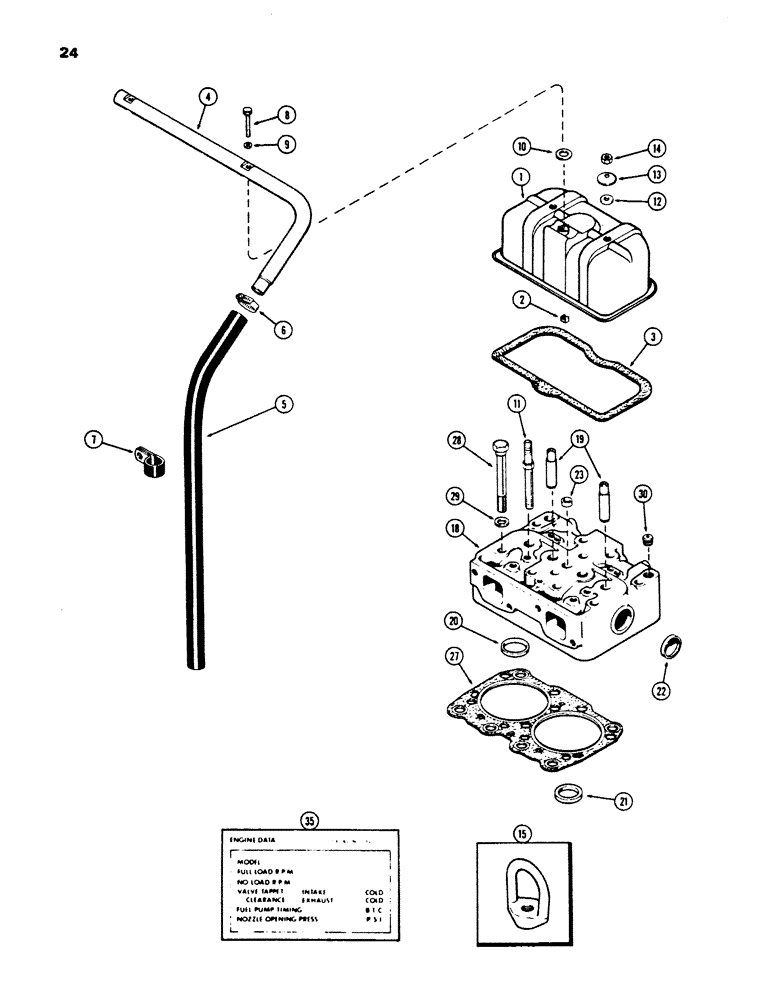

Запчасти Case 850B (024) - CYLINDER HEAD AND COVER, 336BD AND 336BDT DIESEL ENGINES (01) - ENGINE

1

A58929

COVER

COVER ASSEMBLY - cylinder head, Includes: Ref.#2

2шт.

2

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - 1/4" Tinnerman

1шт.

3

A65734

CYLINDER HEAD GASKET

GASKET - cylinder head cover

2шт.

4

A137159

TUBE

TUBE - breather

1шт.

5

A137158

HOSE,1.00" ID x 24.00", SAE J200

Breather tube

1шт.

6

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4"

1шт.

7

D34033

CLAMP

CLIP - hose to flywheel housing

1шт.

8

13-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

BOLT, , Tube to cover Hex, 1/4"-20 x 2 1/2", G5

2шт.

9

A34133

GASKET

GASKET - tube, upper

2шт.

10

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

GASKET - tube, lower

2шт.

11

A67121

STUD

STUD - cover to head, 7/16" NC x 6"

4шт.

12

A23684

GASKET

GASKET - cover stud

4шт.

13

A23683

WASHER

WASHER - cover stud

4шт.

14

129-104

NUT,7/16"-14, G5

NUT, 7/16"-14, G5

4шт.

15

A60567

EYE

EYE - engine lifting

2шт.

18

A66709

HEAD

HEAD ASSEMBLY - cylinder (casting no. A60559), Includes: Ref.#19 - 23

2шт.

18

AR66686

REMAN-CYLINDER HEAD

Remanufactured Cylinder Head

2шт.

18

AC66686

CORE-CYLINDER HEAD

Return Number

2шт.

19

A41783

GUIDE

GUIDE - intake and exhaust valves

4шт.

20

A60557

INSERT

INSERT - intake valve seat

2шт.

21

A58619

INSERT

INSERT - exhaust valve seat

2шт.

22

A34124

PLUG,Cup, 1 5/8", Stainless

PLUG - 1-5/8" (40.4 mm) cup type

2шт.

23

A58620

PLUG,Cup, 3/4", Stainless

PLUG - 3/4" (19.1 mm) cup type

3шт.

27

REF

INSTRUCTION

GASKET - cylinder head (See Fig. 42)

2шт.

28

A62732

STEP BOLT

BOLT - cylinder head, 5/8 x 5-5/8" NC hex

20шт.

29

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - cylinder head bolt

20шт.

30

221-843

PLUG,Hex Soc, 3/8"-18

PLUG - cylinder head, 3/8" PT, hex socket head

4шт.

35

321-4611

DECAL

DECAL - engine data (on valve cover) (Replaces 321-2942)

1шт.
