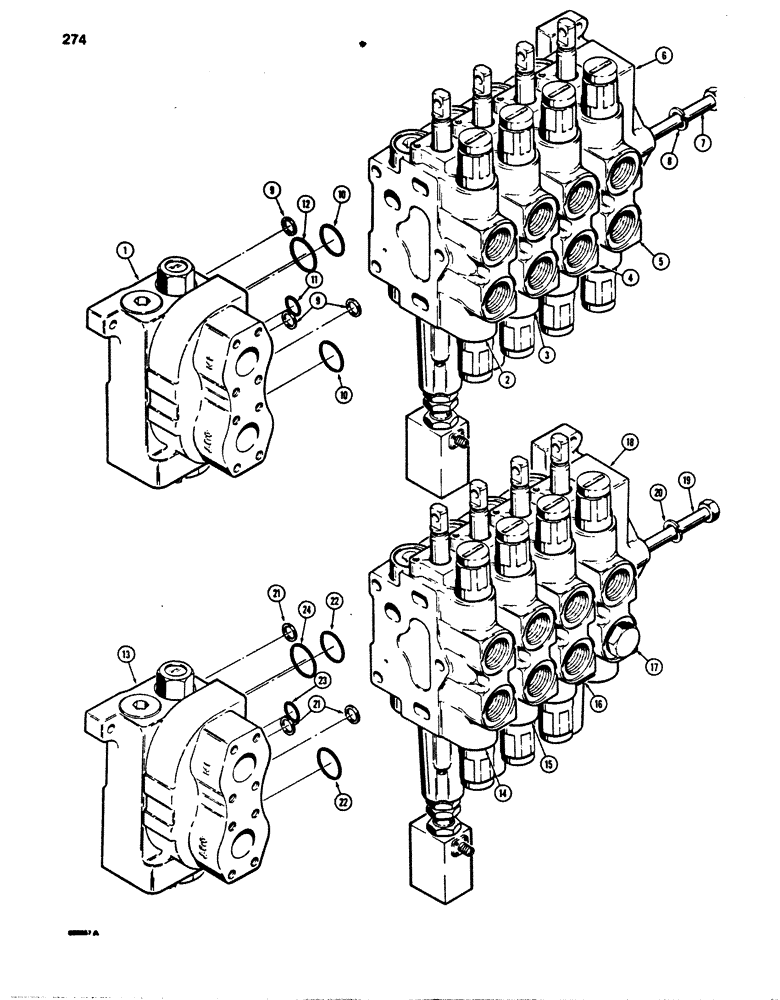

Запчасти Case 850B (274) - R40890 FOUR SPOOL CONTROL VALVE, LOADER WITH RIPPER AND CLAM BUCKET (07) - HYDRAULIC SYSTEM

R40890

LOCK VALVE

CONTROL VAVLE - loader

1шт.

1

D87071

VALVE

SECTION - inlet and outlet, identification no. 106, parts list Fig. 290

1шт.

2

D88764

LOCK VALVE

SECTION - loader bucket, identification no. 405, parts list Fig. 302

1шт.

3

D88765

LOCK VALVE

SECTION - loader lift, identification no. 306, parts list Fig. 294

1шт.

4

D88766

VALVE

SECTION - clam bucket, identification no. 214, parts list Fig. 318

1шт.

5

D87078

VALVE

SECTION - ripper, identification no. 215, parts list Fig. 318

1шт.

6

D87072

COVER ASSY

COVER - end

1шт.

7

D74375

BOLT

- special

3шт.

8

92-7

LOCK WASHER,7/16"

3шт.

9

D77566

SHIM,.0030" Thk

Sections .0030" Thk

15шт.

R37003

SEAL KIT

KIT - seal

5шт.

10

NSS

NOT SOLD SEPARAT

O-RING - 1-5/16" (32 mm) OD

2шт.

11

NSS

NOT SOLD SEPARAT

O-RING - 1" (25 mm) OD

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - 1-1/2" (37 mm) OD

1шт.

R40918

VALVE

CONTROL VALVE - loader, 4- spool with backhoe & clam bucket

1шт.

13

D87071

VALVE

SECTION - inlet and outlet, identification no. 106, parts list Fig.290, R40918 4- spool control valve loader with backhoe & clam bucket

1шт.

14

D88764

LOCK VALVE

SECTION - loader bucket, identification no. 405, parts list Fig. 302, R40918 4- spool control valve with backhoe & clam

1шт.

15

D88765

LOCK VALVE

SECTION - loader lift, identification no. 306, parts list Fig. 294, R40918 4- spool control valve with backhoe & clam bucket

1шт.

16

D88766

VALVE

SECTION - clam bucket, identification no. 214, parts list Fig. 318, R40918 4- spool control valve loader with backhoe

1шт.

17

D88767

VALVE

SECTION - backhoe, identification no. 219, parts list Fig. 310, R40918 4- spool control valve loader with clam bucket

1шт.

18

D87072

COVER ASSY

COVER - end, R40918 4- spool control valve loader with backhoe & clam bucket

1шт.

19

D74375

BOLT

- special, R40918 4- spool control valve loader with backhoe & clam bucket

3шт.

20

92-7

LOCK WASHER,7/16"

R40918 4- spool control valve loader with backhoe & clam bucket 7/16"

3шт.

21

D77566

SHIM,.0030" Thk

Sections, R40918 4- spool control valve loader with backhoe & clam bucket .0030" Thk

15шт.

R37003

SEAL KIT

KIT - seal, R40918 4- spool control valve loader with backhoe & clam bucket, Includes Ref.#s22 - 24

5шт.

22

NSS

NOT SOLD SEPARAT

O-RING - 1-5/16" (32 mm) OD, R40918 4- spool control valve loader with backhoe & clam bucket

2шт.

23

NSS

NOT SOLD SEPARAT

O-RING -1" (25 mm) OD, R40918 4- spool control valve loader with backhoe & clam bucket

1шт.

24

NSS

NOT SOLD SEPARAT

O-RING - 1-1/2" (37 mm) OD, R40918 4- spool control valve loader with backhoe & clam bucket

1шт.
