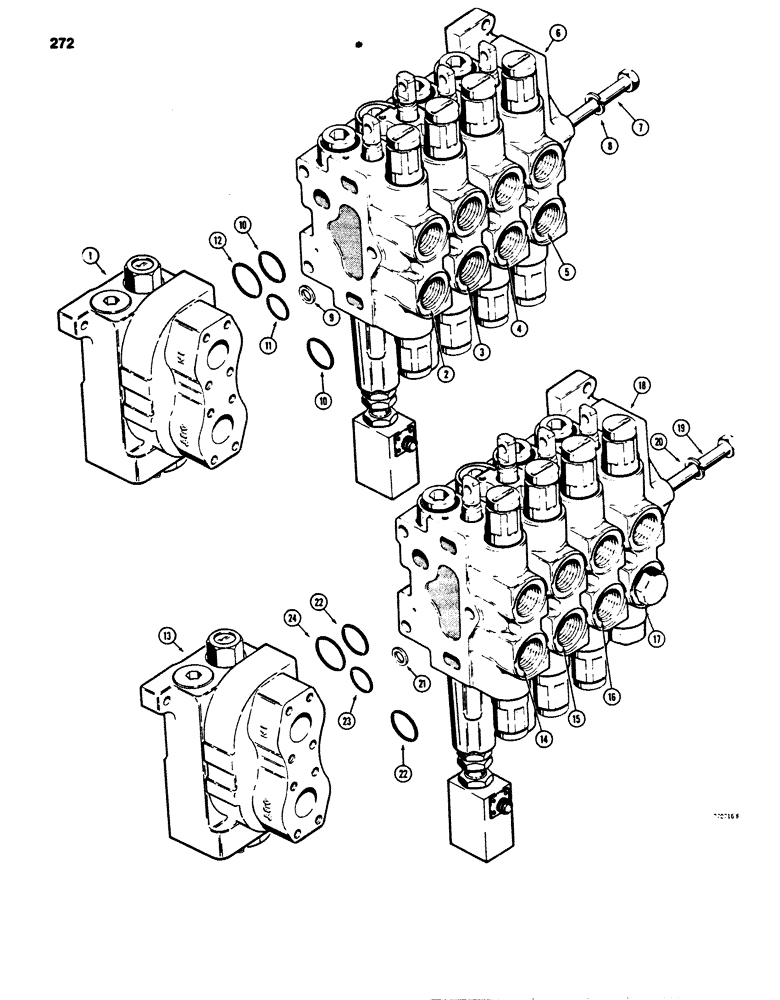

Запчасти Case 850B (272) - R34596 FOUR SPOOL CONTROL VALVE, LOADER WITH RIPPER AND CLAM BUCKET (07) - HYDRAULIC SYSTEM

R34596

VALVE

CONTROL VALVE - loader, Includes: Ref.l#1 - 12

1шт.

1

D87071

VALVE

SECTION - inlet and outlet, identification no.106, replaces section with identification no.105, parts list Fig. 290

1шт.

2

D78353

LOCK VALVE

SECTION - loader bucket, identification no. 403, parts list Fig. 300

1шт.

3

D78352

VALVE BLOCK

SECTION - loader lift, identification no. 304, parts list Fig. 292

1шт.

4

D78349

VALVE

SECTION - clam bucket, identification no. 208, parts list Fig. 316

1шт.

5

D78346

SPARE PART

SECTION - ripper, identification no.309, parts list Fig. 316

1шт.

6

R30143

COVER

- end

1шт.

7

D74375

BOLT

- special

3шт.

8

92-7

LOCK WASHER,7/16"

3шт.

9

D77566

SHIM,.0030" Thk

Sections .0030" Thk

5шт.

R37003

SEAL KIT

KIT - seal, Includes: Ref.#10 - 12

5шт.

10

NSS

NOT SOLD SEPARAT

O-RING - 1-5/16" (32 mm) OD

2шт.

11

NSS

NOT SOLD SEPARAT

O-RING - 1" (25 mm) OD

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - 1-1/2" (37 mm) OD

1шт.

R38561

VALVE

CONTROL VALVE - loader, 4- spool control valve loader with backhoe & clam bucket, Includes: Ref.#13 - 23

1шт.

13

D87071

VALVE

SECTION - inlet and outlet, identification no.106, replaces section with identification no. 105, parts list Fig. 290 , R38561 4- spool control valve loader with backhoe & clam bucket

1шт.

14

D78353

LOCK VALVE

SECTION - loader bucket, identification no. 403, parts list Fig. 300, R38561 4- spool control valve with backhoe & clam bucket

1шт.

15

D78352

VALVE BLOCK

SECTION - loader lift, identification no. 304, parts list Fig. 292, R38561 4- spool control valve with backhoe & clam bucket

1шт.

16

D78349

VALVE

SECTION - clam bucket, identification no. 208, parts list Fig. 316, R38561 4- spool control valve loader with backhoe

1шт.

17

D78350

SPARE PART

SECTION - backhoe, identification no.212, parts list Fig. 308, R38561 4- spool control valve loader with clam bucket

1шт.

18

R30143

COVER

- end, R38561 4- spool control valve loader with backhoe & clam bucket

1шт.

19

D74375

BOLT

- special, R38561 4- spool control valve loader with backhoe & clam bucket

3шт.

20

92-7

LOCK WASHER,7/16"

R38561 4- spool control valve loader with backhoe & clam bucket 7/16"

3шт.

21

D77566

SHIM,.0030" Thk

Sections, R38561 4- spool control valve loader with backhoe & clam bucket .0030" Thk

5шт.

R37003

SEAL KIT

KIT - seal, R38561 4- spool control valve loader with backhoe & clam bucket, Includes: Ref.#22 & 24

5шт.

22

NSS

NOT SOLD SEPARAT

O-RING - 1-5/16" (32 mm) OD, R38561 4- spool control valve loader with backhoe & clam bucket

2шт.

23

NSS

NOT SOLD SEPARAT

O-RING -1" (25 mm) OD, R38561 4- spool control valve loader with backhoe & clam bucket

1шт.

24

NSS

NOT SOLD SEPARAT

O-RING - 1-1/2" (37 mm) OD, R38561 4- spool control valve loader with backhoe & clam bucket

1шт.
