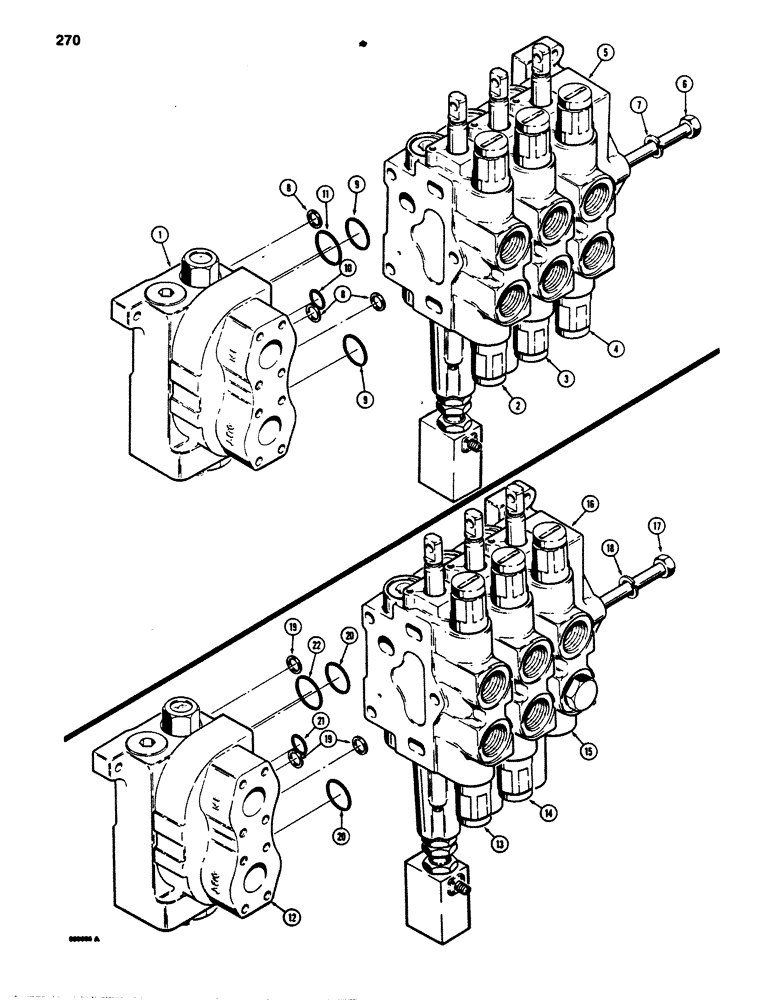

Запчасти Case 850B (270) - R40889 THREE SPOOL CONTROL VALVE, LOADER WITH RIPPER OR CLAM BUCKET (07) - HYDRAULIC SYSTEM

R40889

LOCK VALVE

CONTROL VALVE - loader

1шт.

1

D87071

VALVE

SECTION - inlet and outlet, identification no. 106, parts list Fig. 290

1шт.

2

D88764

LOCK VALVE

SECTION - loader bucket, identification no. 405, parts list Fig. 302

1шт.

3

D88765

LOCK VALVE

SECTION - loader lift, identification no. 306, parts list Fig. 294

1шт.

4

D88766

VALVE

SECTION - ripper or clam bucket, identificaiton no. 214, parts list Fig. 318

1шт.

5

D87072

COVER ASSY

COVER - end

1шт.

6

D74374

BOLT

- special

3шт.

7

92-7

LOCK WASHER,7/16"

3шт.

8

D77566

SHIM,.0030" Thk

Sections .0030" Thk

12шт.

R37003

SEAL KIT

KIT - seal, Includes: Ref. 10 & 11

4шт.

9

NSS

NOT SOLD SEPARAT

O-RING - 1-5/16" (32 mm) OD

2шт.

10

NSS

NOT SOLD SEPARAT

O-RING - 1" (25 mm) OD

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - 1-1/2" (37 mm) OD

1шт.

R40917

VALVE

CONTROL VALVE - loader, 3- spool with backhoe, Includes: Ref.#12 - 22

1шт.

12

D87071

VALVE

SECTION - inlet and outlet, identification no. 106, parts list Fig. 290, R40917 3- spool control valve loader with backhoe

1шт.

13

D88764

LOCK VALVE

SECIION - loader bucket, identification no. 405, parts list Fig. 302, R40917 3- spool control valve with backhoe

1шт.

14

D88765

LOCK VALVE

SECTION - loader lift, identification no. 306, parts list Fig. 294, R40917 3- spool control valve with backhoe

1шт.

15

D88767

VALVE

SECTION - backhoe, identification no.219, parts list Fig. 310, R40917 3- spool control valve loader

1шт.

16

D87072

COVER ASSY

COVER - end, R40917 3- spool control valve loader with backhoe

1шт.

17

D74374

BOLT

- special, R40917 3- spool control valve loader with backhoe

3шт.

18

92-7

LOCK WASHER,7/16"

R40917 3- spool control valve loader with backhoe 7/16"

3шт.

19

D77566

SHIM,.0030" Thk

Sections, R40917 3- spool control valve loader with backhoe .0030" Thk

12шт.

R37003

SEAL KIT

KIT - seal, R40917 3- spool control valve loader with backhoe, Includes: Ref. 20 - 22

4шт.

20

NSS

NOT SOLD SEPARAT

O-RING - 1-5/16" (32 mm) OD, R40917 3- spool control valve loader with backhoe

2шт.

21

NSS

NOT SOLD SEPARAT

O-RING - 1" (25 mm) OD, R40917 3- spool control valve loader with backhoe

1шт.

22

NSS

NOT SOLD SEPARAT

O-RING -1-1/2" (37 mm) OD, R40917 3- spool control valve loader with backhoe

1шт.
