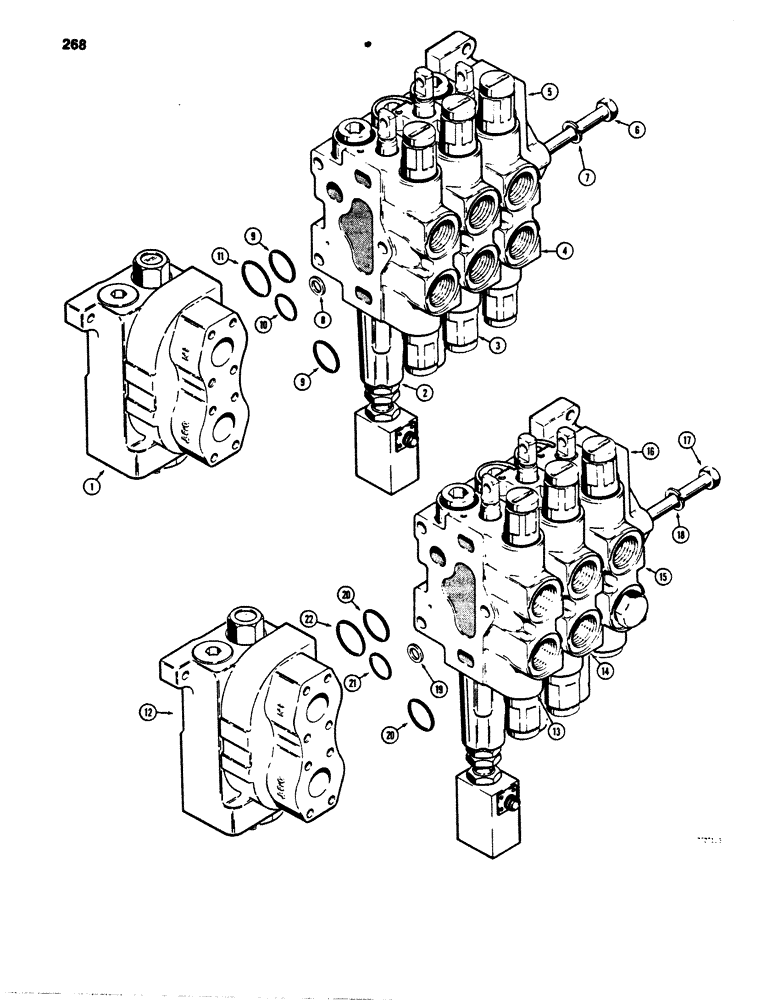

Запчасти Case 850B (268) - R34595 THREE SPOOL CONTROL VALVE, LOADER WITH RIPPER OR CLAM BUCKET (07) - HYDRAULIC SYSTEM

R34595

VALVE

CONTROL VALVE - loader

1шт.

1

D87071

VALVE

SECTION - inlet and outlet, identification no. 106, replaces section with identification no.105, parts list Fig. 290

1шт.

2

D78353

LOCK VALVE

SECTION - loader bucket, identification no. 403, parts list Fig. 300

1шт.

3

D78352

VALVE BLOCK

SECTION - loader lift, identification no. 304, parts list Fig. 292.

1шт.

4

D78349

VALVE

SECTION - ripper or clam bucket, identification no. 208, parts list Fig. 316

1шт.

5

R30143

COVER

- end

1шт.

6

D74374

BOLT

- special

3шт.

7

92-7

LOCK WASHER,7/16"

3шт.

8

D77586

SHIM - sections

4шт.

R37003

SEAL KIT

KIT - seal, Includes: Ref.#s9 - 11

4шт.

9

NSS

NOT SOLD SEPARAT

O-RING - 1-5/16" (32 mm) OD

2шт.

10

NSS

NOT SOLD SEPARAT

O-RING -1" (25 mm) OD

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - 1-1/2" (37 mm) OD

1шт.

R38560

VALVE

CONTROL VALVE - loader, 3 spool with backhoe, Includes: Ref.#12 - 22

1шт.

12

D87071

VALVE

SECTION - inlet and outlet, identification no. 106, replaces section with identification no.105, parts list Fig. 290, R38560 3- spool control valve loader with backhoe

1шт.

13

D78353

LOCK VALVE

SECTION - loader bucket, identification no. 403, parts list Fig. 300, R38560 3- spool control valve with backhoe

1шт.

14

D78352

VALVE BLOCK

SECTION - loader lift, identification no. 304, parts list Fig. 292, R38560 3- spool control valve with backhoe

1шт.

15

D78350

SPARE PART

SECTION - backhoe, identification no. 212, parts list Fig. 308, R38560 3- spool control valve loader

1шт.

16

R30143

COVER

- end, R38560 3- spool control valve loader with backhoe

1шт.

17

D74374

BOLT

- special, R38560 3- spool control valve loader with backhoe

3шт.

18

92-7

LOCK WASHER,7/16"

R38560 3- spool control valve loader with backhoe 7/16"

3шт.

19

D77566

SHIM,.0030" Thk

Sections, R38560 3- spool control valve loader with backhoe .0030" Thk

4шт.

R37003

SEAL KIT

KIT - seal, R38560 3- spool control valve loader with backhoe, Includes: Ref.#20 - 22

4шт.

20

NSS

NOT SOLD SEPARAT

O-RING - 1-5/16" (32mm) OD, R38560 3- spool control valve loader with backhoe

2шт.

21

NSS

NOT SOLD SEPARAT

O-RING - 1" (25mm) OD, R38560 3- spool control valve loader with backhoe

1шт.

22

NSS

NOT SOLD SEPARAT

O-RING - 1-1/2" (37 mm) OD, R38560 3- spool control valve loader with backhoe

1шт.
