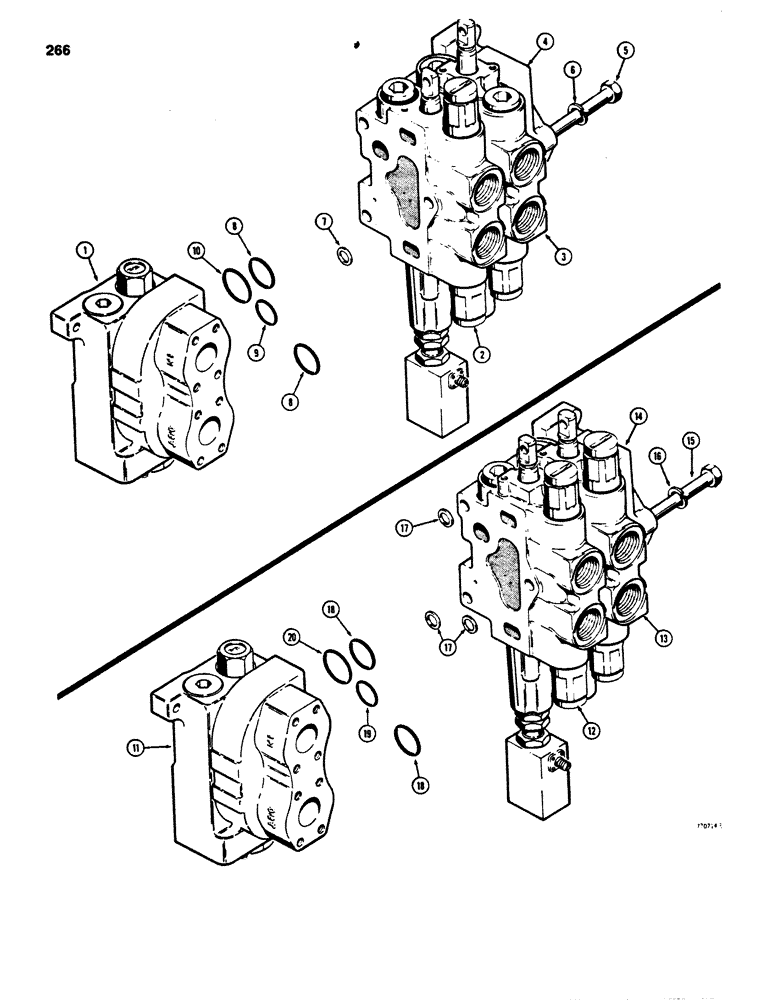

Запчасти Case 850B (266) - R34594 TWO SPOOL CONTROL VALVE, LOADER MODELS (07) - HYDRAULIC SYSTEM

R34594

CONTROL VALVE - loader, Includes: Ref.#s1 - 10

1шт.

1

D87071

VALVE

SECTION - inlet and outlet, identification no. 106, replaces section with identification no.105, parts list Fig. 290

1шт.

2

D78353

LOCK VALVE

SECTION - loader bucket, identification no. 403, parts list Fig. 300

1шт.

3

D78352

VALVE BLOCK

SECTION - loader lift, identification no. 304, parts list Fig. 292

1шт.

4

R30143

COVER

- end

1шт.

5

D74373

BOLT

- special

3шт.

6

92-7

LOCK WASHER,7/16"

3шт.

7

D77566

SHIM,.0030" Thk

Sections .0030" Thk

3шт.

R37003

SEAL KIT

KIT - seal, Includes: Ref.#8 - 10

3шт.

8

NSS

NOT SOLD SEPARAT

O-RING - 1-5/16" (32 mm) OD

2шт.

9

NSS

NOT SOLD SEPARAT

O-RING - 1" (25 mm) OD

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - 1-1/2" (37 mm) OD

1шт.

R40888

LOCK VALVE

CONTROL VALVE - loader, 2 pool models, Includes: Ref.11 - 20

1шт.

11

D87071

VALVE

SECTION - inlet and outlet, identification no.106, parts list Fig. 290, R40888 2-spool control valve loader models

1шт.

12

D88764

LOCK VALVE

SECTION - loader bucket, identification no. 405, parts list Fig. 302, R40888 2-spool control valve models

1шт.

13

D88765

LOCK VALVE

SECTION - loader lift, identification no. 306, parts list Fig. 294., R40888 2-spool control valve models

1шт.

14

D87072

COVER ASSY

COVER - end, R40888 2-spool control valve loader models

1шт.

15

D74373

BOLT

- special, R40888 2-spool control valve loader models

3шт.

16

92-7

LOCK WASHER,7/16"

R40888 2-spool control valve loader models 7/16"

3шт.

17

D77566

SHIM,.0030" Thk

Sections, R40888 2-spool control valve loader models .0030" Thk

9шт.

R37003

SEAL KIT

KIT - seal, R40888 2-spool control valve loader models, Includes: Ref.#18 - 20

3шт.

18

NSS

NOT SOLD SEPARAT

O-RING - 1-5/16" (32 mm) OD, R40888 2-spool control valve loader models

2шт.

19

NSS

NOT SOLD SEPARAT

O-RING - 1" (25 mm) OD, R40888 2-spool control valve loader models

1шт.

20

NSS

NOT SOLD SEPARAT

O-RING - 1-1/2" (37 mm) OD, R40888 2-spool control valve loader models

1шт.
