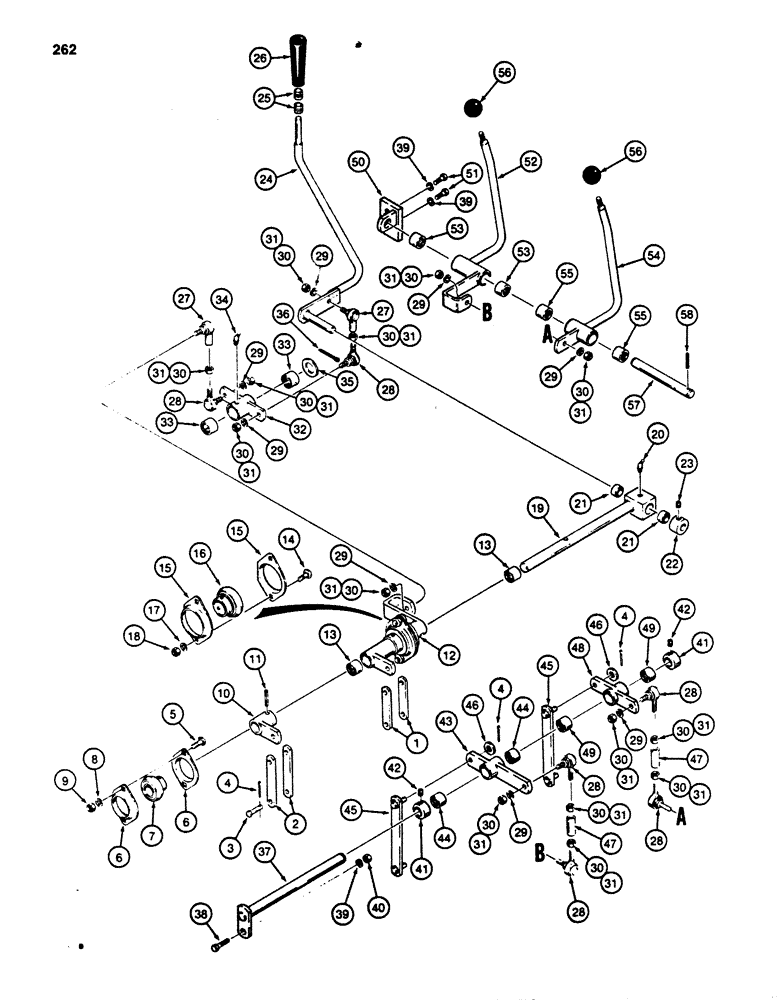

Запчасти Case 850B (262) - EQUIPMENT CONTROL VALVE & LEVERS, THREE CONTROL LEVERS - FOUR SPOOLS VALVES & STAMPED W/CASE PART NO (07) - HYDRAULIC SYSTEM

R34596

VALVE

CONTROL VALVE - loader with ripper and clam bucket, parts list Fig. 272

1шт.

R38561

VALVE

CONTROL VALVE - loader with backhoe and clam bucket, parts list Fig. 272

1шт.

R34593

VALVE

CONTROL VALVE - angle tilt dozer with ripper, parts list Fig. 288

1шт.

R38559

VALVE

CONTROL VALVE - angle tilt dozer with backhoe, parts list Fig. 284

1шт.

R34591

VALVE

CONTROL VALVE - tilt dozer or drawbar with dual pull behind, parts list Fig. 284

1шт.

R40918

VALVE

CONTROL VALVE - loader with backhoe and clam bucket, parts list Fig. 274

1шт.

R40897

VALVE

CONTROL VALVE - angle tilt dozer with ripper, parts list Fig. 288

1шт.

R40916

VALVE

CONTROL VALVE - angle tilt dozer with backhoe, parts list Fig. 286

1шт.

R40895

VALVE

CONTROL VALVE - tilt dozer or drawbar with dual pull behind, parts list Fig. 286

1шт.

R40890

LOCK VALVE

CONTROL VALVE - loader with ripper and clam bucket, parts list Fig. 274

1шт.

1

R34564

LINK

- 2-7/8" (73 mm) long

2-4шт.

Two used on R34595, R38560, R34592, R34590, and R38558 control valves, four used on R40889, R40917, R40894, R40896, and R40915 control valves

1шт.

2

R34561

LINK

-3-1/2" (89 mm) long

2шт.

Two used on R34595, R38560, R34592, R34590, and R38558 control valves only.

1шт.

3

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

4шт.

4

132-26

COTTER PIN

- Split (Cotter), 3/32" x 3/4"

8шт.

5

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

2шт.

6

F13360

FLANGE

- ball bearing

2шт.

7

R36380

BALL BEARING,19.05 mm ID x 47 mm OD x 15, 30.96 mm

- shaft

1шт.

8

92-5

LOCK WASHER,5/16"

2шт.

9

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

10

R27331

ELECTRICAL WIRE

BELLCRANK - links

1шт.

11

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

1шт.

R34570

TUBE

AND BEARING ASSEMBLY - bellcrank shaft, Includes: Ref.#s12 - 18

1шт.

12

NSS

NOT SOLD SEPARAT

TUBE - bellcrank shaft

1шт.

13

R27649

NEEDLE BEARING,0.75" ID x 1" OD x 0.687"

- tube

2шт.

14

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

2шт.

15

NSS

NOT SOLD SEPARAT

FLANGE - ball bearing

2шт.

16

NSS

NOT SOLD SEPARAT

BALL BEARING - tube

1шт.

17

92-6

LOCK WASHER,3/8"

2шт.

18

25-106

NUT,3/8"-16, G5

- hex, 3/8"- 16 NC

2шт.

19

R34552

SHAFT

- bellcrank, inner, Includes: Ref.#s20 & 21

1шт.

20

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

GREASE FITTING - 65 degree, 3/16" drive type

1шт.

21

R27370

NEEDLE BEARING,0.625" ID x 0.8125" OD x 0.562"

- shaft

2шт.

22

D43620

COLLAR

- locking, control lever

1шт.

23

83-55

SET SCREW,Hex Soc, 5/16"-18 x 5/16", Cup Pt

1шт.

24

R38721

LEVER

CONTROL LEVER - loader

1шт.

25

R38655

RING

BUSHING - knob, control lever

2шт.

26

R38654

KNOB

- control lever

1шт.

27

R36626

BALL

JOINT - female

2шт.

28

R36625

BALL

JOINT - male

6шт.

29

92-5

LOCK WASHER,5/16"

no longer used 5/16"

8шт.

30

25-115

NUT,5/16"-24, G5

- hex, 5/16"-18 NC, no longer used, service with 131-1231 nut

14шт.

31

131-1231

LOCK NUT,5/16"-24, GC

NUT, LOCK, 5/16"-24, GC

14шт.

32

R27646

ROCKER

LEVER - ball joints, Includes: Ref.#s33 & 34

1шт.

33

R27649

NEEDLE BEARING,0.75" ID x 1" OD x 0.687"

- lever

2шт.

34

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

GREASE FITTING - 65 degree, 3/16" drive type

1шт.

35

195-545

WASHER,3/4", SAE

- flat, 3/4"

1шт.

36

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

37

R34541

SHAFT

- bellcrank, outer

1шт.

38

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

39

92-6

LOCK WASHER,3/8"

3шт.

40

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

41

T10676

COLLAR

- locking, shaft retaining

2шт.

42

83-55

SET SCREW,Hex Soc, 5/16"-18 x 5/16", Cup Pt

2шт.

43

R34538

LEVER - link, lower, long, Includes: Ref.#44

1шт.

44

R27649

NEEDLE BEARING,0.75" ID x 1" OD x 0.687"

- lever

2шт.

45

R36766

DRAG LINK

LINK - 7" (179 mm) long

2шт.

Used with R34595, R34560, R34592, R34590, and R38558 control valves

1шт.

45

R42313

LINK

- 6- 11/32" (161 mm) long

2шт.

Used with R40889, R40917, R40894, R40896, and R40915 control valves.

1шт.

46

195-25

WASHER,3/8"

- flat, 3/8"

4шт.

47

R27647

LINK

- threaded, ball joints

2шт.

48

R34539

DIPPER

LEVER - link, upper, short, Includes: Ref.#49

1шт.

49

R27649

NEEDLE BEARING,0.75" ID x 1" OD x 0.687"

- lever

2шт.

50

R36889

BRACKET

- control lever mounting, bolts to hydraulic reservoir

1шт.

51

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

52

R34546

LEVER

CONTROL LEVER - center, Includes: Ref.#53

1шт.

53

R27649

NEEDLE BEARING,0.75" ID x 1" OD x 0.687"

- center control lever

2шт.

54

R34549

LEVER

CONTROL LEVER - outer, Includes: Ref.#55

1шт.

55

R27649

NEEDLE BEARING,0.75" ID x 1" OD x 0.687"

- outer control lever

2шт.

56

70213

KNOB

- control lever

2шт.

57

R27648

SHAFT

- control levers

1шт.

58

138-63

LOCK PIN,1/8" x 1 1/4", Slotted

PIN, 1/8" x 1 1/4", Slotted

1шт.
