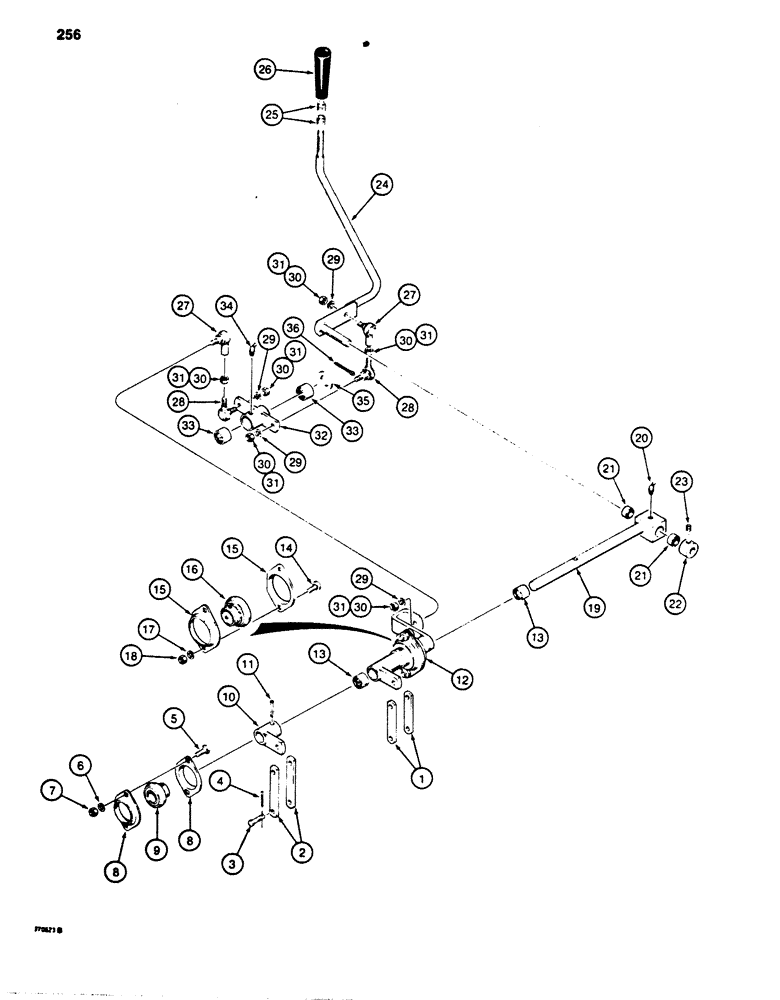

Запчасти Case 850B (256) - EQUIPMENT CONTROL VALVE & LEVERS, ONE CONTROL LEVER - TWO SPOOLTS, VALVE ARE STAMPED W/CASE PART NO. (07) - HYDRAULIC SYSTEM

R34594

CONTROL VALVE - loader, parts list Fig. 266

1шт.

R40888

LOCK VALVE

CONTROL VALVE - loader, parts list Fig. 266

1шт.

R34589

CONTROL VALVE

- dozer, parts list Fig. 276

1шт.

R40893

VALVE

CONTROL VALVE - dozer, parts list Fig. 278

1шт.

1

R34564

LINK

- 2-7/8" (73 mm) long, two used with R34594 and R34589 control valves, four used with R40888 and R40893 control valves

2-4шт.

2

R34561

LINK

- 3-1/2" (89 mm) long, used with R34594 and R34589 control valves only

2шт.

3

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

4шт.

4

132-26

COTTER PIN

CO9TTER PIN - Split (Cotter), 3/32" x 3/4"

4шт.

5

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

2шт.

6

92-5

LOCK WASHER,5/16"

2шт.

7

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

8

F13360

FLANGE

- ball bearing

2шт.

9

R36380

BALL BEARING,19.05 mm ID x 47 mm OD x 15, 30.96 mm

- shaft

1шт.

10

R27331

ELECTRICAL WIRE

BELLCRANK - links

1шт.

11

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

1шт.

R34570

TUBE

AND BEARING ASSEMBLY - bellcrank shaft, Includes: Ref#12 - 17

1шт.

12

NSS

NOT SOLD SEPARAT

TUBE - bellcrank shaft

1шт.

13

R27649

NEEDLE BEARING,0.75" ID x 1" OD x 0.687"

- tube

2шт.

14

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

2шт.

15

NSS

NOT SOLD SEPARAT

FLANGE - ball bearing

2шт.

16

NSS

NOT SOLD SEPARAT

BALL BEARING - tube

1шт.

17

92-6

LOCK WASHER,3/8"

2шт.

18

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

19

R34552

SHAFT

- bellcrank, Includes: Ref.#20 & 21

1шт.

20

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

GREASE FITTING - 65 degree, 3/16" drive type

1шт.

21

R27370

NEEDLE BEARING,0.625" ID x 0.8125" OD x 0.562"

- shaft

2шт.

22

D43620

COLLAR

- locking control lever

1шт.

23

83-55

SET SCREW,Hex Soc, 5/16"-18 x 5/16", Cup Pt

1шт.

24

R38721

LEVER

CONTROL LEVER - loader

1шт.

25

R38655

RING

BUSHING - knob, control lever

2шт.

26

R38654

KNOB

- control lever

1шт.

27

R36626

BALL

JOINT - female

2шт.

28

R36625

BALL

JOINT - male

2шт.

29

92-5

LOCK WASHER,5/16"

no longer used 5/16"

6шт.

30

25-115

NUT,5/16"-24, G5

- hex, 5/16"-18 NC, no longer used, service with 131-1231 nut

6шт.

31

131-1231

LOCK NUT,5/16"-24, GC

NUT, LOCK, 5/16"-24, GC

6шт.

32

R27646

ROCKER

LEVER - ball joints, Includes: Ref.#33 - 34

1шт.

33

R27649

NEEDLE BEARING,0.75" ID x 1" OD x 0.687"

- lever

2шт.

34

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

GREASE FITTING - 65 degree, 3/16" drive type

1шт.

35

195-545

WASHER,3/4", SAE

- flat, 3/4"

1шт.

36

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.
