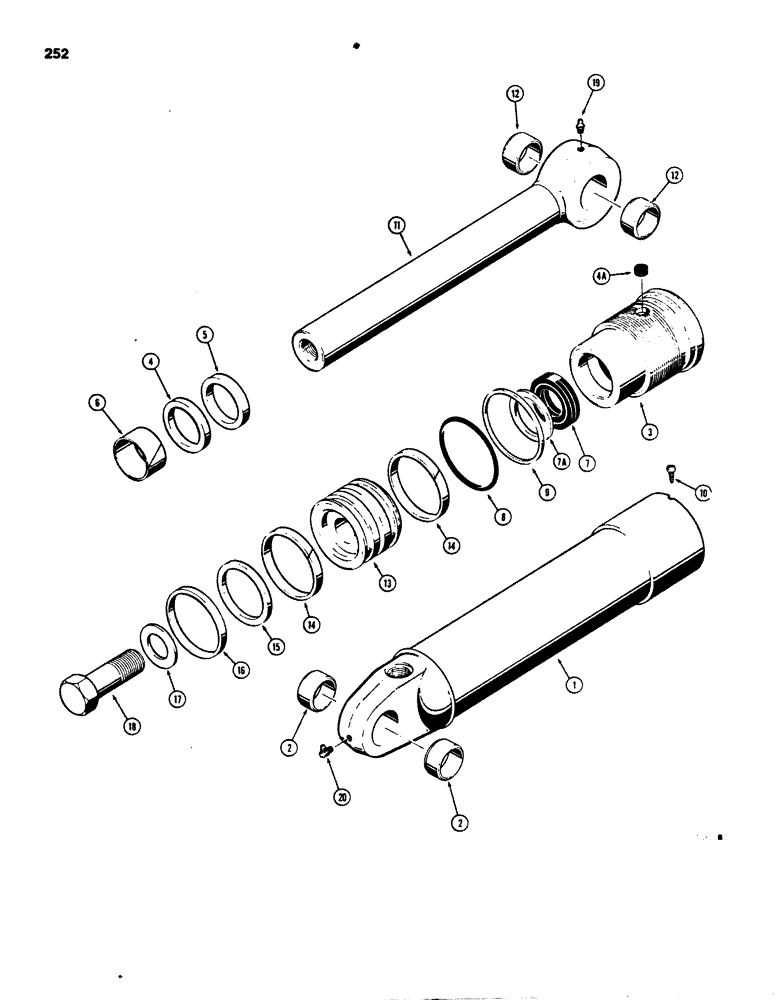

Запчасти Case 850B (252) - G101214 AND G101215 RIPPER CYLINDERS (07) - HYDRAULIC SYSTEM

G101214

CYLINDER ASSY.

CYLINDER - right-hand, 3-1/4" (83 mm) ID x 8-13/32" (213 mm) stroke, Includes: Ref.#1 - 20

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

G101215

CYLINDER ASSY.

CYLINDER - left-hand, 3-1/4" (83mm) ID x 8-13/32" (213 mm) stroke, Includes: Ref.#1 20

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

1

G100608

TUBE,16.46" L

- G101214 cylinder

1шт.

1

G100609

TUBE,16.46" L

- G101215 cylinder, Includes: Ref.#2

1шт.

2

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- each tube

2шт.

G102875

GLAND

ASSEMBLY - cylinder, Includes: Ref.#3 - 9

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4

NSS

NOT SOLD SEPARAT

RETAINING RING - gland

1шт.

4a

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

5

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - rod

1шт.

Part of Seal Kit P/N G105547

1шт.

6

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

- center

1шт.

Part of Seal Kit P/N G105547

1шт.

7

D36970

CUP

U-CUP SEAL - piston rod, wide

1шт.

Part of Seal Kit P/N G105547

1шт.

Seal - rod, service option - severe heat or cold

1шт.

7a

G103705

SEAL

- piston rod, narrow, used in addition to Ref.#7 in some glands

1шт.

Part of Seal Kit P/N G105547

1шт.

8

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit P/N G105547

1шт.

9

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

BACKUP RING - gland O-ring

1шт.

Part of Seal Kit P/N G105547

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8-32 NC x 1/4", if used, not required when nylon plug is used

1шт.

11

G100617

ROD

- piston, 1-3/4" (44 mm) diameter, Includes: Ref.#12

1шт.

12

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod

2шт.

13

G100642

PISTON

- cylinder

1шт.

14

S109445

RING,82.55mm OD, Ext

- wear

2шт.

Part of Seal Kit P/N G105547

1шт.

15

S109444

RING,Square, 5.28mm Thk x 68.96mm ID

BACKUP RING - piston seal

1шт.

Part of Seal Kit P/N G105547

1шт.

16

G102287

SEAL,Locking, 79.07mm ID x 83.8mm OD x 6.96mm Thk

- piston

1шт.

Part of Seal Kit P/N G105547

1шт.

17

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

18

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

20

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

G105547

SEAL

KIT - seal, Includes: Ref. 5, 6, 7, 7A, 8, 9, 14, 15 and 16, same as G102403 kit plus Ref.#7A above

1шт.

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

- rod, service option - severe heat or cold

1шт.
