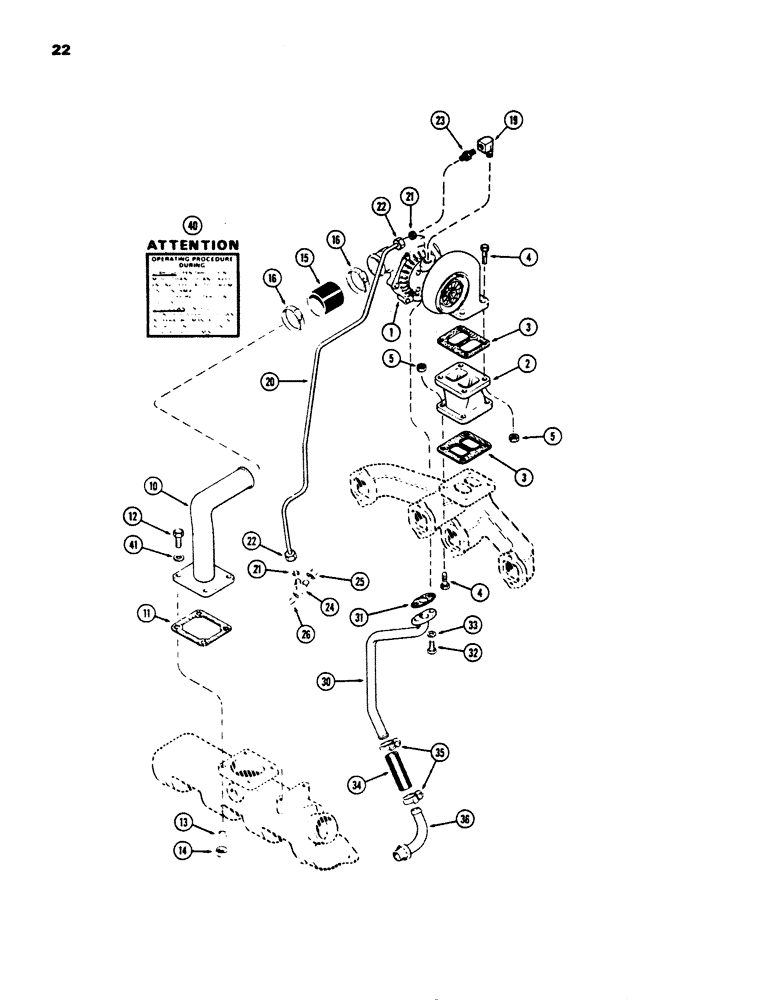

Запчасти Case 850B (022) - TURBOCHARGER SYSTEM, 336BDT TURBOCHARGED ENGINE, ALTITUDE COMPENSATING (01) - ENGINE

1

A151278

TURBOCHARGER

ASSEMBLY - (New)

1шт.

1

A48194

REMAN-TURBOCHARGER

Remanufactured Turbocharger

1шт.

1

A48193

CORE-TURBOCHARGER

Return Part Number

1шт.

1

A42166

REMAN-TURBOCHARGER

Turbocharger Assembly (Remanufactured)

1шт.

1

A42165

CORE

Return Part Number, Turbocharger Assembly (Do not use this part number for ordering. This part number is to be used in requesting return authority on used turbochargers to be returned for credit)

1шт.

2

A61002

ADAPTER

BASE - turbocharger to exhaust manifold

1шт.

3

A58899

GASKET,0.45mm Thk

- base (upper and lower)

2шт.

4

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Base Hex, 3/8"-16 x 1 1/2", G5

8шт.

5

131-903

NUT,3/8"-16

NUT - 3/8" NC Seez-Pruf

8шт.

10

A150450

ELBOW

- air intake

1шт.

11

A58910

GASKET

-, Serial Range: elbow-manifold

1шт.

12

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Elbow Hex, 3/8"-16 x 1 1/2", G5

4шт.

13

92-6

LOCK WASHER,3/8"

4шт.

14

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

15

A150449

INTAKE AIR HOSE,2.00" ID x 2.88"

2.00" ID x 2.88"

1шт.

16

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

19

217-19

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- street, 90 degree brass

1шт.

20

A155669

TUBE

ASSEMBLY - oil supply (Replaces A62477), Includes: Ref.# 21 & 22

1шт.

21

222-154

SLEEVE,3/8" Tube

- (for ) 3/8" Tube

2шт.

22

222-114

NUT,5/8"-24

NUT - (for 3/8" tube)

2шт.

23

222-4027

HYD CONNECTOR,5/8"-24 x 1/4" NPTF

CONNECTOR - oil supply tube to turbocharger

1шт.

24

222-87

TEE,5/8"-24 Male x 1/4 NPT Fem Run x 1/4 NPT Br

- oil supply tube to block

1шт.

25

221-53

BUSHING

- reducer (3/8" PT to 1/4" PT) (to block)

1шт.

26

221-2

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - tee (1/4" PT square head)

1шт.

30

A141030

TUBE

- oil drain

1шт.

31

A58892

GASKET,1.59mm Thk

- drain tube

1шт.

32

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Drain tube Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

33

92-6

LOCK WASHER,3/8"

2шт.

34

A58893

HOSE

- drain tube, 7/8" ID x 3-1/2" (22.2 mm ID x 88.9 mm)

1шт.

35

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose (1-3/16" to 1-3/4")

2шт.

36

A58897

FITTING

- drain tube to block, 90 degree

1шт.

40

321-1981

DECAL

- operating procedure

1шт.

41

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64" (11.1 x 25.4 x 2 mm)

4шт.
